Heathkit BG 1 Schematic
This is the 2 pages manual for Heathkit BG 1 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Heathkit BG 1 Schematic (Ocr-read)
Page 1

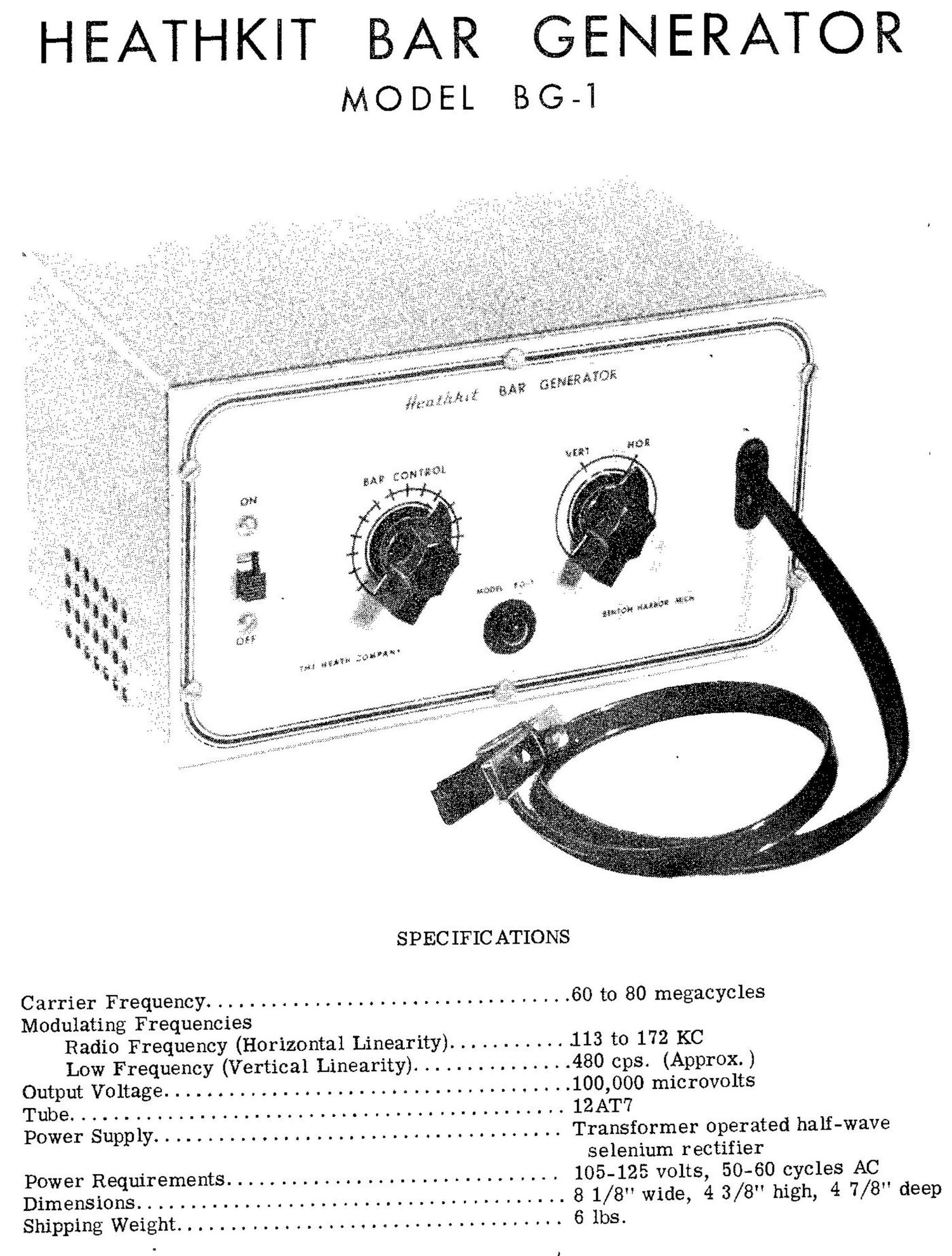

HEATHKIT BAR GENERATOR
MODEL BG-1
SPECIFIC ATIONS
Carrier Frequency. . . . ........... . . . . . .............. 60 to 80 megacycles
Modulating Frequencies
Radio Frequency (Horizontal Linearity). .. ..... . . . 113 to 172 KC
Low Frequency (Vertical Linearity) ........ . ...... 480 ops. (Approx. )
OutputVoltage...................... ....... .........100,000microv01ts
Tube.............. ........... .. ...... ..... ...12AT7
Power Supply. ........ . . . . . . . . .. ...... .. . . .. . .. . . .. Transformer Operated half-wave
selenium rectifier
Power Requirements ........ .. . . . . . . . . .. ........... 105-125 volts, 50-60 cycles AC
Dimensions.. .. ................ .... ................ 8 1/8 wide, 4 3/8" high, 4 7/ deep
ShippingWeight................... ........ . ...... ..61bs.
