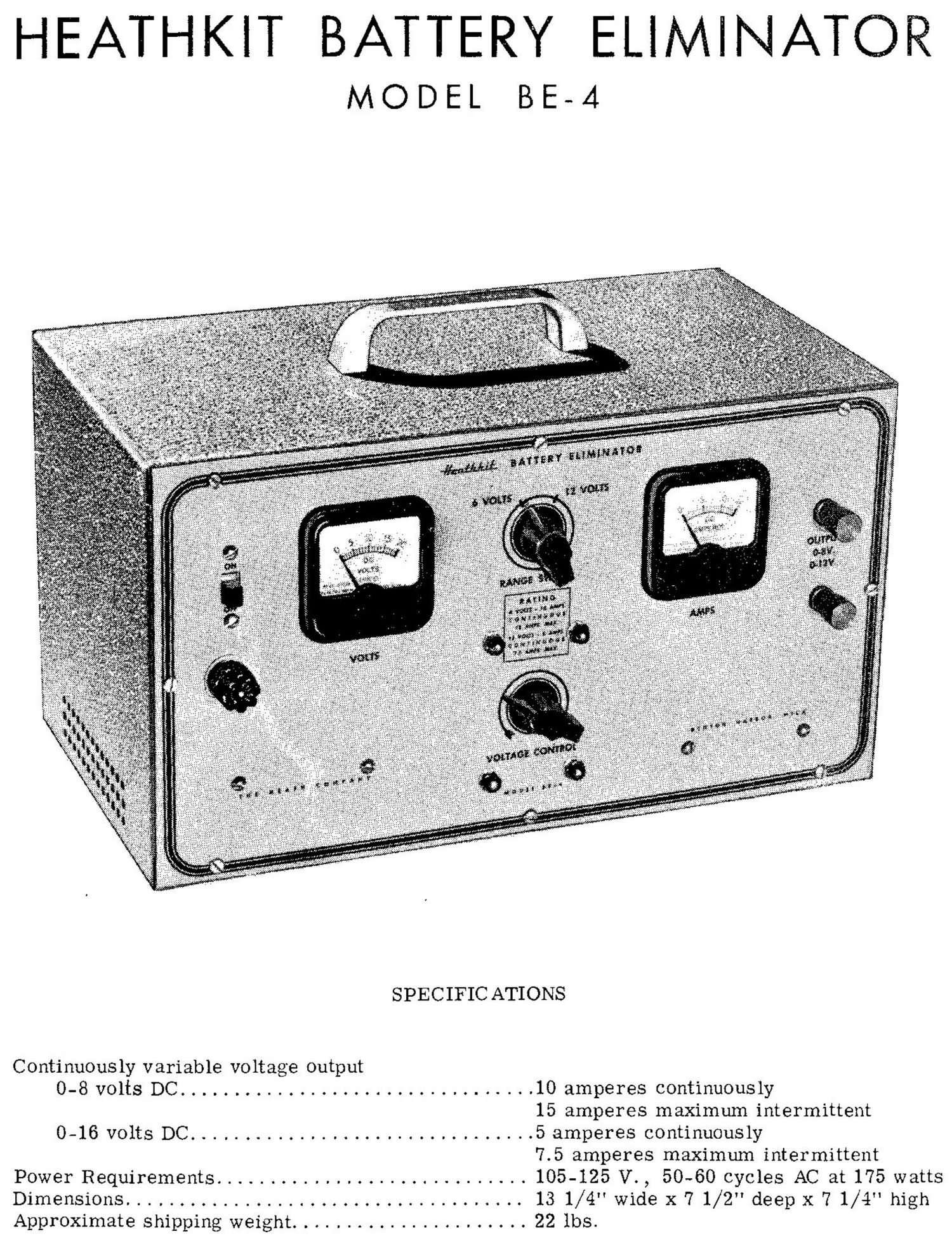

HEATHKIT BATTERY ELIMINATOR

MODEL BE-A

SPECIFICATIONS
Continuously variable voltage Output
0-8voltsDC10amperes continuously
15 amperes maximum intermittent
0-16V01ts DC................................5amperes continuOusly
7.5 amperes maximum intermittent
Power Requirements. . . . . . . . . . . . . . . . . . . . . . .. . . . .. 105-125 V. , 50-60 cycles AC at 175 watts
Dimensions..................................... 13 1/4widex7 1/2"deepx'7 1/4 high

Approximate shipping weight. . . . . . . . . . .. . . . . . . . . .. 22 lbs.
