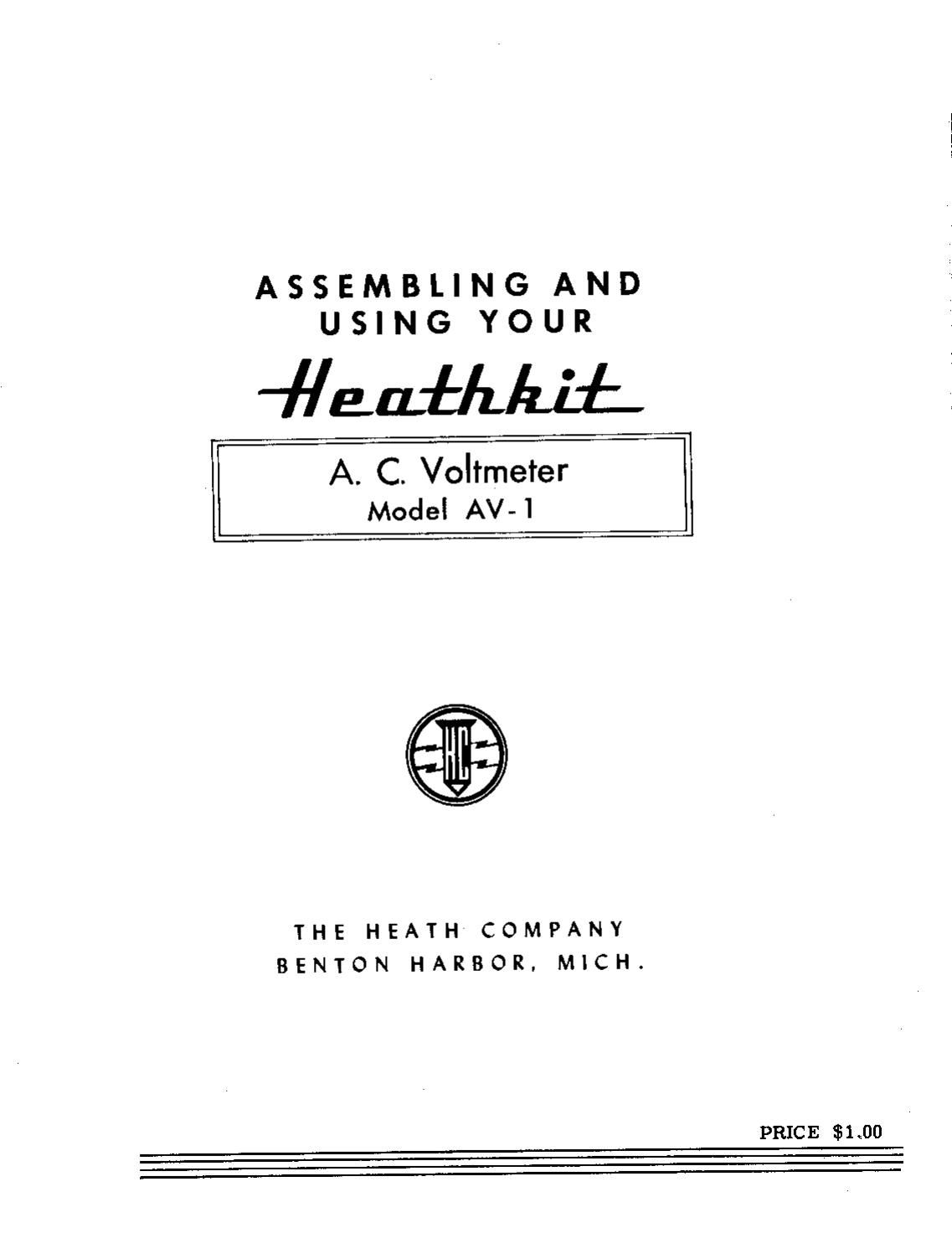

Page 1
ASSEMBLING AND
USING YOUR
l/aafh/rji'.
A. C. Volfmefer
Modei AV-l
®
THE HEATH COMPANY
BENTON HARBOR. MICH.
PRIC E $ 1 00
Page 2
H EATHKIT
MODEL AV-l
A. C. VOLTMETER
Technical Spec ific ations
Power Requirement: 105-125V AC, 50-60 cycles, 10 Watts
Tube Complement: 1 - GAUG 1 - 6AT6
Input Impedance: 1 Megohm at 1 KC
Ranges: .01, .03, .1, .3, 1, 3, 10, 30, 100, 300 V RMS
Decibels: Total range -52 to +52 db, scale -12 to +2 db.
(1 MW - 600 ohm) ten switch selected ranges
from -40 to +50 db.
Physical Specifications: 7-3/8" high x 4-11/16 wide x 4-1/8" deep
Net Weight 3% lbs. Shipping Weight 5 lbs.
