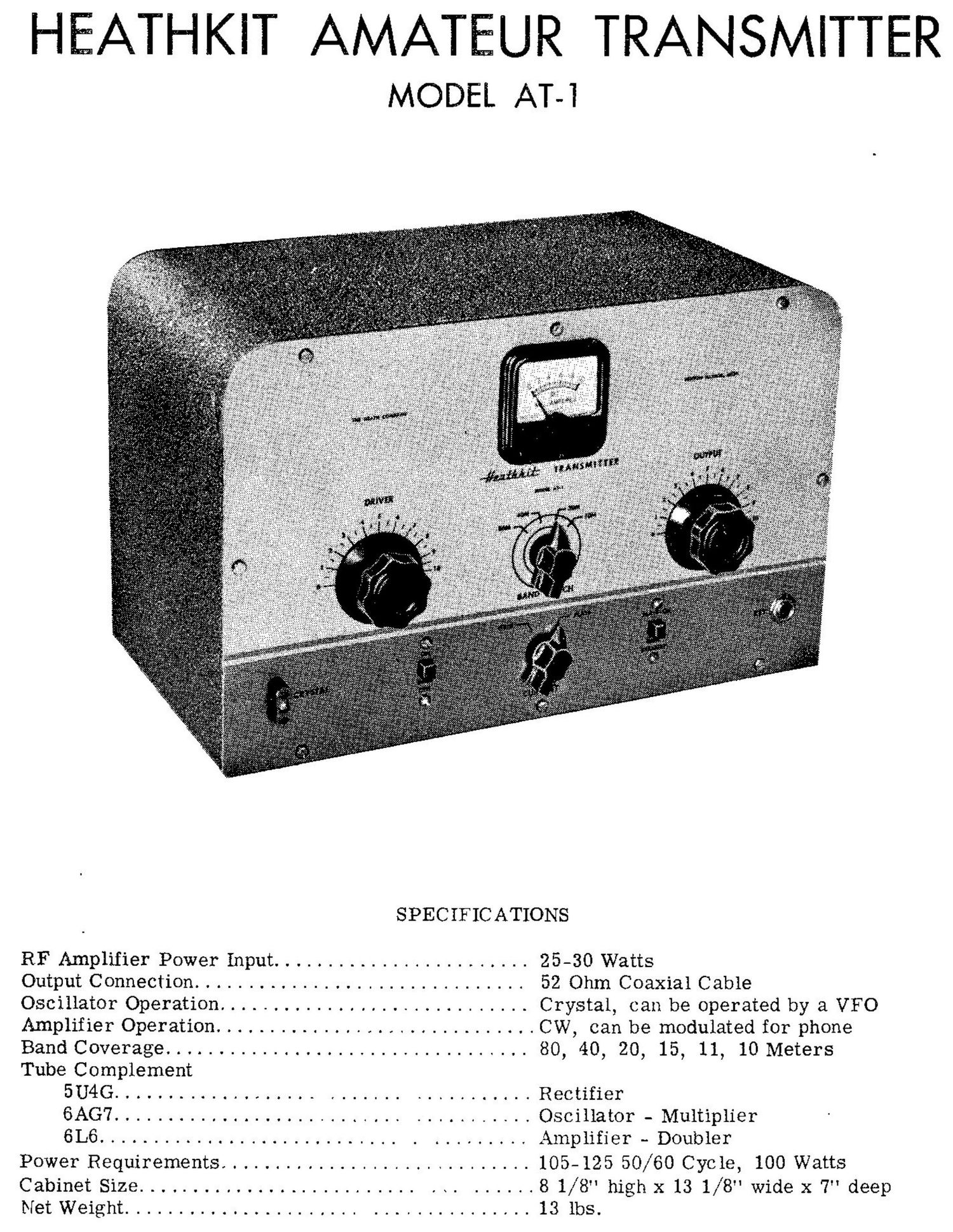

Page 1
HEATHKIT AMATEUR TRANSMITTER
MODEL AT-T
SPECIFICATIONS
RFAmplifierPowerInput........................25-30Watts
OutputConnection............................... 520th0axialCab1e
OscillatOr Operation............................. Crystal, can be operatedbyaVFO
AmplifierOperation................_.............CW,canbemodulatedforphone
BandCoverage..................................80,40,20,15,11,10Meters
Tube Complement
5U4G ...........Rectifier
6AG7 ...........Oscillator-Multiplier
6L6 . Amplifier-Doubler
Power Requirements. 105-125 50/60 Cycle, 100 Watts
CabinetSize.......................... ......81/8"highx131/8widex7deep
NetWeight...................... 13 lbs.
