Heathkit AO 1 Schematic

This is the 2 pages manual for Heathkit AO 1 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
Heathkit AO 1 Schematic

Extracted text from Heathkit AO 1 Schematic (Ocr-read)

Page 1

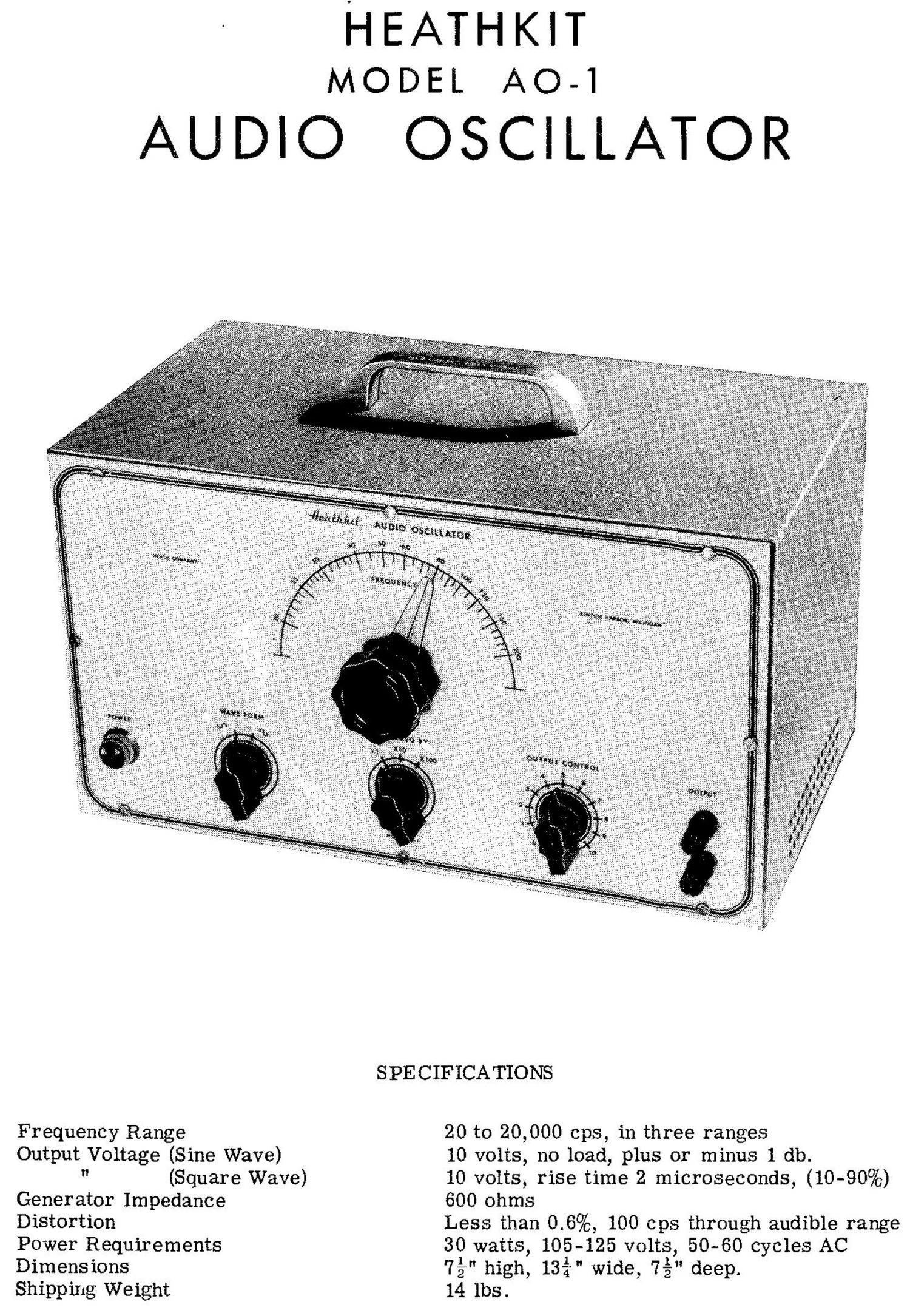

- HEATHKIT
MODEL AO-1

AUDIO OSCILLATOR

SPE CIFICA TIONS

Frequency Range 20 to 20,000 cps, in three ranges

Output Voltage (Sine Wave) 10 volts, no load, plus or minus 1 db.
" (Square Wave) 10 volts, rise time 2 microseconds, (10-90%)
Generator Impedance 600 ohms

Distortion Less than 0.6%, 100 eps through audible range
Power Requirements 30 watts, 105-125 volts, 50~60 Cycles AC
Dimensions 7%" high, 13%" wide, 7%" deep.

Shipping Weight 14 lbs.
