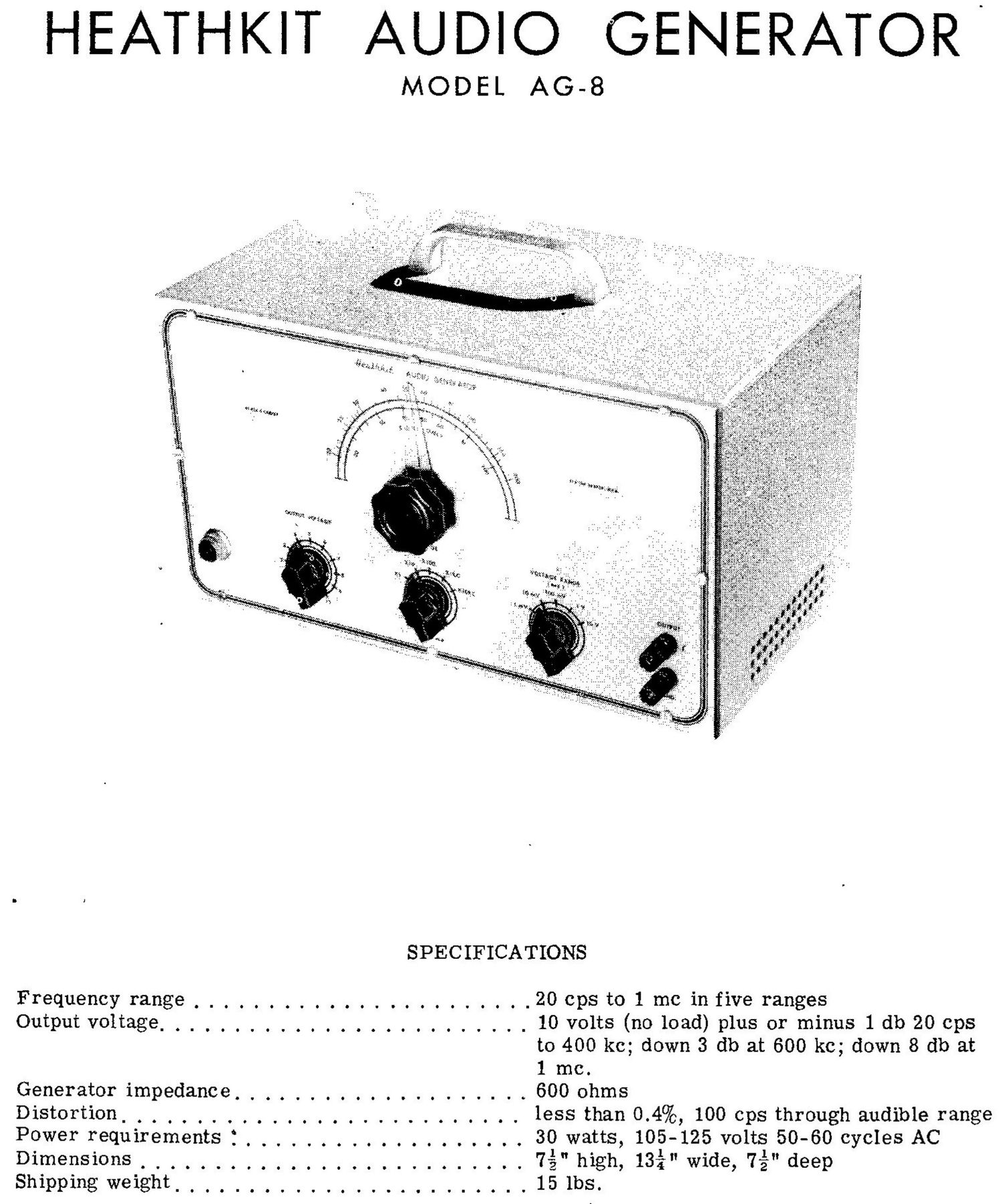

HEATHKIT AUDIO GENERATOR '
MODEL AG-8
SPECIFICATIONS
Frequencyrange,.,,,,,,,,, , , ,,,,,,,,,_200pst01mc infiveranges
Outputvoltage . _ , , , _ . _ , , , . , , , , , , , _ , , _ , 10volts (no load) plus or minus ldeOcps
to 400 kc; down 3 db at 600 kc; down 8 db at
1 me.
Generator impedance, , , . , , , , , , , , , , , , , . _ , 600 ohms
Distortion_ , . . , . , , , . , . . , , , _ _ _ , , , , , , , _ less than 0.4%, 100 cps through audible range
Power requirements 2 , , , , _ . , _ , , , , , , , , , , , 30 watts, 105-125 volts 50-60 cycles AC
Dimensions.......................... 7:1:"high,13i"wide,7%"deep
Shipping weight_ , _ , , _ _ 15 lbs.
