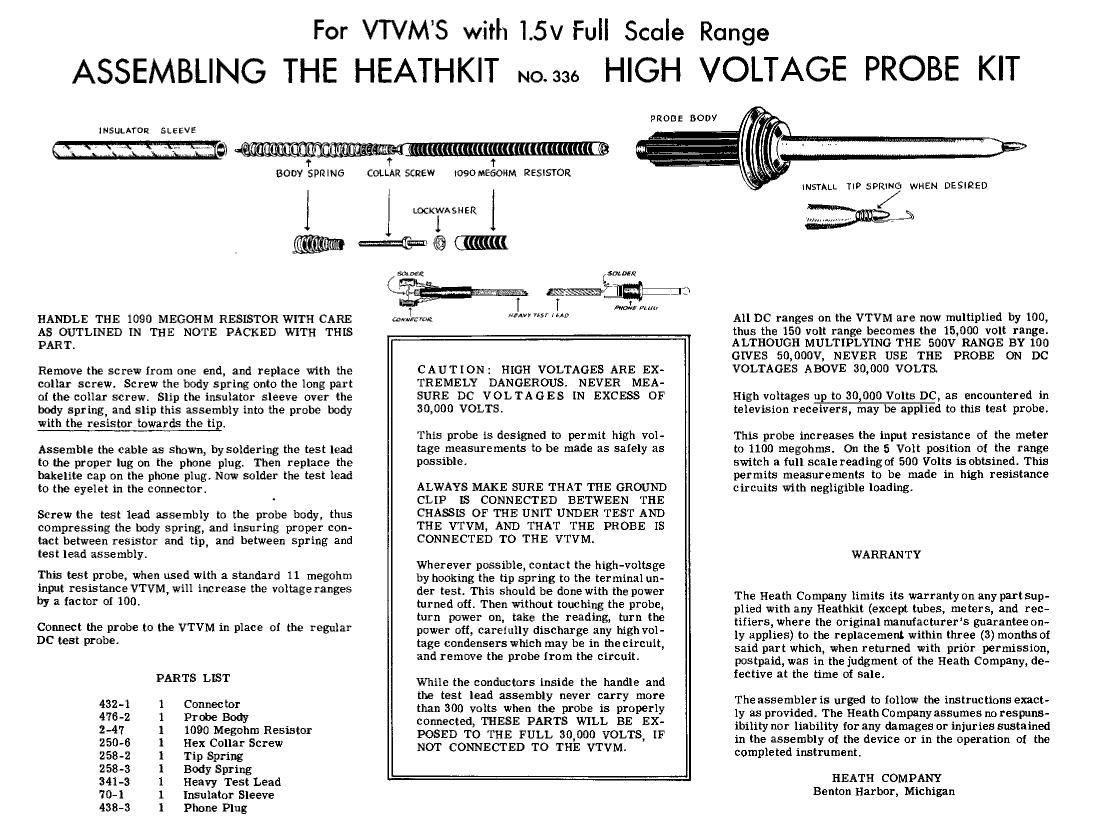

For VTVM'S with 1.5V Full Scale Range
ASSEMBLING THE HEATHKIT no.3 HIGH VOLTAGE PROBE KIT
mailman SLEEVE
_03 '
1
Bow SPRING
J
HANDLE THE 1090 MEGOHM RESISTOR WITH CARE
As OUTLINED IN THE NOTE PACKED WITH THIS
PART.
Remove the screw irom one end, and replace with the
collar screw, Screw the body spring onto the long part
of the collar screw. slip the emulator sleeve over the
body spring, and slip this assembly into the probe body
with the resistor he do the tip.
Assemble the cable as shown, bysoldering the test lead
to the proper lug on the phone plug. Then replace the
bakelite cap on the phone plug. New solder the test lead
to the eyelet in the connector.
Screw the test lead assembly to the probe body, thus
compressing the body spring, and insuring proper con-
tact between resistor and tip, and between spring and
test lead assembly.
This test probe, when used with a standard 11 megohm
input resistancevTvt/l, will imrease the voltage ranges
I?! a motor at 100.
connect the probe to the VTVM in place ol the regular
DC test probe.
PARTS LIST
432-1 1 Connector
476-2 1 Probe Body
2-47 I 1090 Mcgohm Resistor
250-6 1 Hex Couar Screw
258-2 1 Tip spring
258-: 1 Body Spring
341-3 I Heavy Test Lead
71H 1 Insulator Sleeve
438-3 1 Phone Plug
1'
comb new
i
was: may
7
iosonesotmi RESISTOR
LOCKWASNER l
CAUTION: HIGH VOLTAGES ARE Ex-
TREMELY DANGEROUS. NEVER MEA-
SURE DC VOLTAGES IN EXCESS OF
30,000 voLTs.
This probe is designed to permit high vol-
tage measurements to be made as sately as
possible.
ALWAYS MAKE SURE THAT THE GROUND
CLIP IS CONNECTED BETWEEN THE
CHASSIS OF THE UNIT UNDER TEST AND
THE VTVM, AND THAT THE PROBE IS
CONNECTED To THE VTVM.
wherever possible, contact the high-voluge
by hooking the tip spring to the terminal un-
der test. This should be done with the power
turned 01f. Then without touching the probe,
turn power on, lake the reading, turn the
power 0E, ecreiuily discharge any high vol-
tage condenserswhleh may be in meoireuit,
and remove the probe (rpm the circuit.
While the conductors inside the handle and
the test lead assembly never carry mare
than sou votts when the probe is properly
connected, THESE PARTS WILL BE Ex-
posED To THE FULL 30,000 vows, IF
NOT CONNECTED To THE VTVM.
lNSfALI. lw sPRING WHEN DESIRED
Due»
All DC ranges on the VTVM are now multiplied by 100,
thus the 150 volt range becomes the 15,000 volt ranger
ALTHOUGH MULTIPLY'LNG THE 50w RANGE BY 100
GIVES 50.0mm NEVER USE THE PROBE 0N DC
VOLTAGES ABOVE 30,000 VOLTE
ngh voltages up to 30,000 Volts DC, as encountered in
television receivers, my be applied to this test probe.
This probe increases the input resistance at the meter
to 1100 megohms. On the 5 Volt position oi the rnnge
swimh a ton scale rendingci 500 Volts isobtsined. This
permits measurements to be made in high resistance
circuits with negligible loading.
WARRANTY
The Heath Company limits its warrantyon any partsup.
plied with any Heathlcit (except tubes, meters, and recs
tiiiers,where the original manufzclllrers gnaranleeonv
Iy applies) to the replacement within three (3) monthsoi
said port which, when returned vnth prior permission,
pustpaid, was in the iudgment oi the Heath Company, de-
tective at the time oi sale.
The assembler is urged to inllow the instructions exact-
ly as provided. The Heath Co mpany assumes no respons-
tbility nor liability tor any damages or injuries sustained
in the 259201th at the device or in the operation or the
completed instrument,
HEATH COMPANY
Benton Harbor, Michimn
Page 2
For VTVMS with 3v Full Scale Range
ASSEMBLING THE HEATHKIT No.3ao HIGH VOLTAGE PROBE KIT
PROBE may ,a,
leIJLAYoR sliEVE
,
[500v spams
1
T
cotutk SREW
li(i(i(((ii((iH UHHKUWUHI
,
logomroom RESISTOR
learns 1
lawnmowe-
HANDLE THE 1090 MEGOHM RESISTOR WITH CARE
AS OUTLINED IN THE NOTE PACKED WITH THE
PART.
Remove the screw irom one end, and replace with the
collar screw. Screw the body spring onto the long part
of the collar screw. sup the insulator sleeve over the
body spring and slip this assembly into the probe body
with the res tor towards the l E,
Assemble the cable as shown, bysoldering the test lead
to the proper lug on the phone plug, Then replace the
bakelile cap on the phone plug. Now solder the test lead
to the eyelet in the connector.
Screw the test lead assembly to the prime body, thus
compressing the body spring, and insuring proper con-
ucl between resistor and lip, and between spring and
test lead assembly.
This test probe, when used with a standard 11 megohm
input resistance VTVM, will increase the voltage ranges
by a (rotor oi 100
Connect the probe to the VTVM in piace oi the regular
DC test probe.
PARTS LIST
43271 1 Connector
m ~2 1 Probe Body
247 1 1090 Megohm Resistor
250-5 1 tier Collar Screw
258-2 1 Tip Spring
250-3 l Body Spring
341-3 1 lleavy Tent Lead
70-1 i Insulator Sleeve
tail-3 1 Plume plug
Wimp some W"
CAUTiON: mall VOLTAGES ARE EX-
TREMELY DANGEROUS, NEVER MEA-
suan DC vomacss m EXCESS or
30,000 VOL/Psi
This probe is designed to permit high vol-
tage measurements to be made as saiely as
possible.
ALWAYS MAKE SURE THAT THE GROUND
CLIP IS CONNECTED BETWEEN THE
CHASSIS OF THE UNIT UNDER TEST AND
THE VTVM, AND THAT 11H: PROBE is
CONNECTED TO THE VTVM.
wherever possible, contact the high-voltage
byhooltlng the tip spring to the terminaiun-
tier test. This should he done with the power
tnrned oil. Than without touching the probe,
turn power on, take the reading, turn the
power oil, careiully discharge any highvol-
tage condensers which may be in thecircuit,
and remove the probe from the circuit.
While the Conductars inside the handle and
the test lead assembly never carry more
than 300 volts when the probe is properly
connected, THESE PARTS WILL BE EX-
POIED 10 THE FULL 30,000 VOLTS, IF
NOT CONNECTED TO THE VTVM.
INSYAU. m smear WHEN 025mm
All BC ranges on the VTVM are now multiplied by 100,
thus the 300 volt range becomes the 30,000 volt range,
and the 100 Volt range becomes the 10,000 Volt ranger
-NEVER use THE PROBE 0N DC vow-aces
ABOVE 30.000 VOLTS.
High voltages up to so 000 Volts DC, as encountered in
television receivers, may be app ied to this test probe,
This probe increases the input resistance of the meter
tn 1100 mlgollms. On the 3 Volt position of the range
switch a fill! scalereadingoi 300 Volts is obtained. This
permits measurements to he made in high resistance
cirnnlts with negligible landing.
WARRANTY
The Heath Company limits its warranty on any part sup-
plied with any lieathkit (except tubes, meters, and rec-
tiiiera, where the original manufacturers guarantee on-
ly applies) to the replacement within three (3) months oi
said part which, when returned with prior permission,
postpald, was in the judgment oi the Heath Company, dga
tective at the time of sale.
The assembler is urged to iotlow the instructions exact-
ly as provided. The lleath Company assumes no respmma
tbiltty nor liability lot any damages or injuries sustained
in the assemhly ot the device or in the operation oi the
completed instrument,
HEATH COMPANY
Benton Harbor, Michigan
