Harman kardon tu 970 service manual
This is the 18 pages manual for harman kardon tu 970 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon tu 970 service manual (Ocr-read)
Page 1

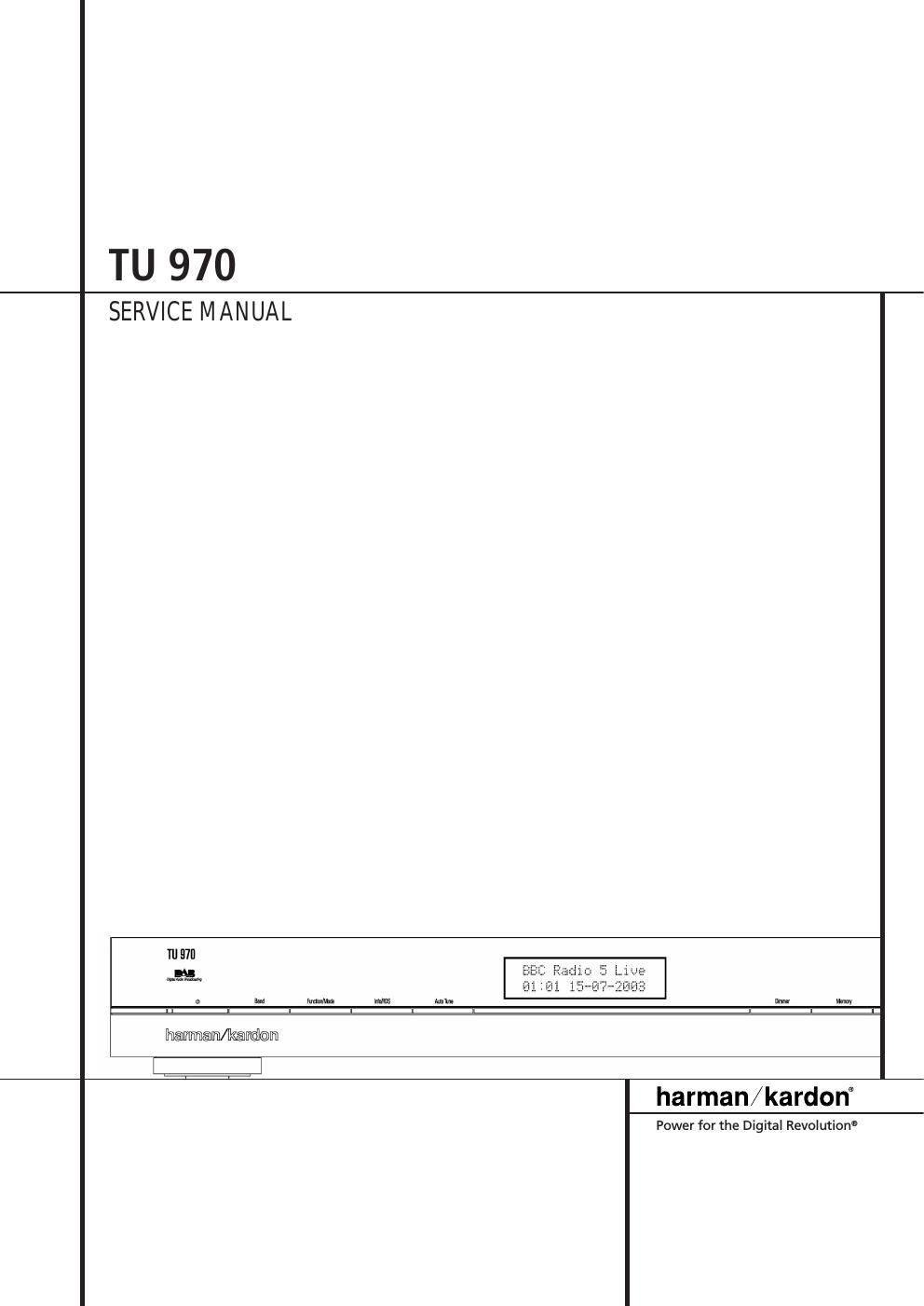

TU 970
SERVICE M ANUAL
TUflll]
Emlzatrman/kafidm
{ 1
harman/kardon
Power for the Digital Revcxlution®
Page 2
Technical Specifications
FM Section
Frequency Range
SignalrtoeNoise Ratio
Presets
Section
Frequency Range
SignalrtoeNoise Ratio
Presets
DAB Section
RF Section
Display
Presets
Audio Output
Optical S/PDIF
General
Power Requirement
Power Consumption
Dimension (Max)
Width
Height
Depth
Weight
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.
87.50 MHz to 108.00 MHz (50 kHz steps)
65dB (Mono) 60dB (Stereo)
30
522 kHz to 1620 kHz (9 kHz steps)
35dB
30
Band III, I74MHz-24OMHz
Input: 50 Ohm, nominal
Max signal: e3dBm typ
Sensitivity: 796dBm typ
Adjacent Channel Rejection: 35dB typ
2 line by 16 character DOT Matrix
IO
Stereo, 2.5V P»P
48kHz sample rate 16 bit sample resolution
|EC60958 Compliant
48kHz sample rate 24 bit sample resolution
230*240V AC, 50Hz
9W
3W (standby)
442mm
63mm
299mm
3.4kg
All features and specifications are subject to change without notice.
Harman Kardon and Power for the Digital Revolution are registered trademarks of Harman Kardon, Incorporated
TECHNICAL SPECIFICATIONS 13
