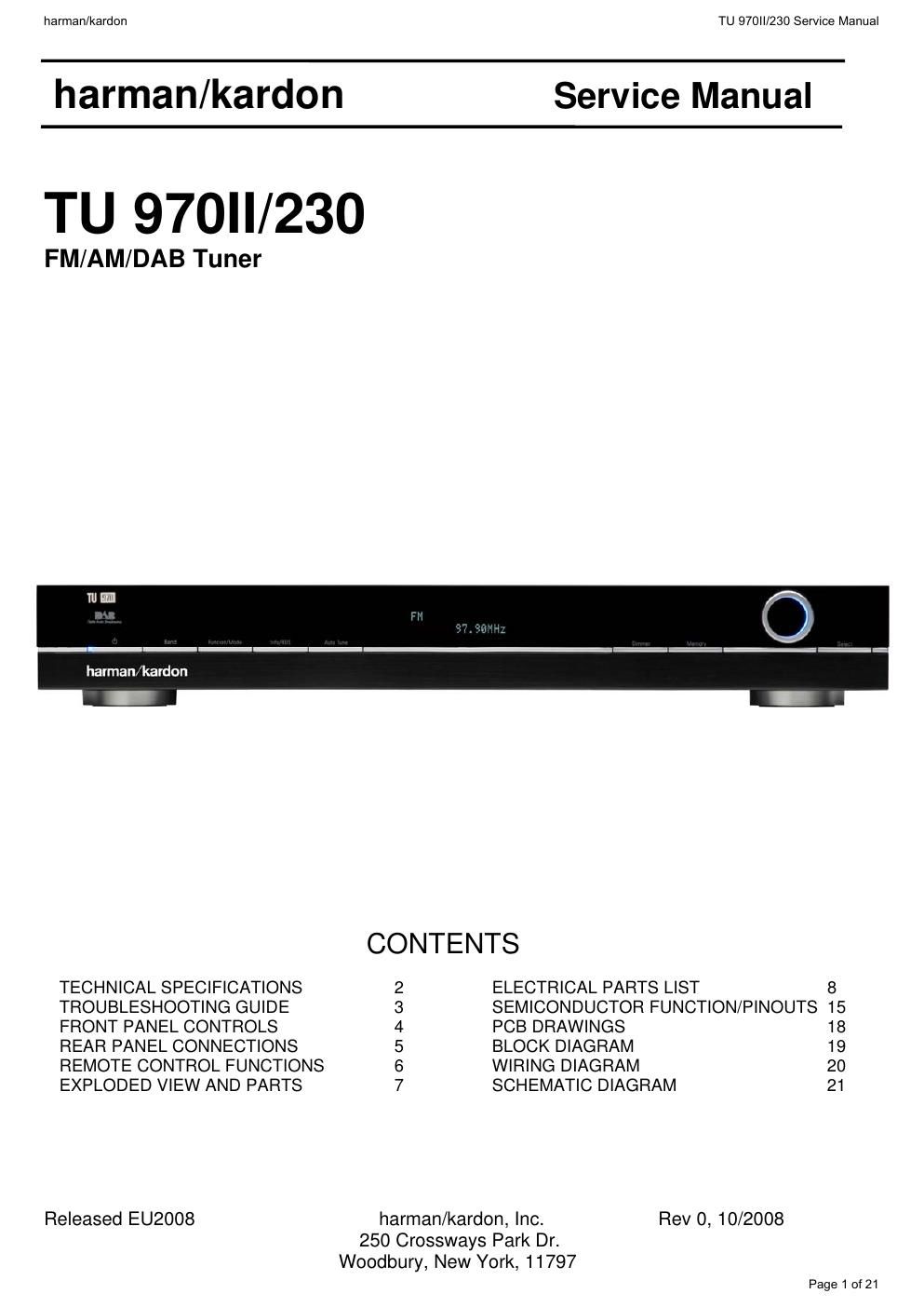

Page 1
harman/kardon TU 97OI|/230 Service Manual
harman/kardon Service Manual
TU 97OII/230
FM/AM/DAB Tuner
0
harman kardon
CONTENTS
TECHNICAL SPECIFICATIONS 2 ELECTRICAL PARTS LIST 8
TROUBLESHOOTING GUIDE 3 SEMICONDUCTOR FUNCTION/PINOUTS 15
FRONT PANEL CONTROLS 4 PCB DRAWINGS 18
REAR PANEL CONNECTIONS 5 BLOCK DIAGRAM 19
REMOTE CONTROL FUNCTIONS 6 WIRING DIAGRAM 20
EXPLODED VIEW AND PARTS 7 SCHEMATIC DIAGRAM 21
Released EU2008 harman/kardon, Inc. Rev 0, 10/2008
250 Crossways Park Dr.
Woodbury, New York, 11797
Page 1 on1
Page 2
29168710970117ENG 03/07/06
harman/kardon
11:03 Side 13
Technical Specifications
TU 970l|l230 Service Manual
FM Section
Frequency Range
Signal-toeNoise Ratio
Presets
AM Section
Frequency Rang
Signal-toeNoise Ratio
Presets
DAB Section
RF Section
Display
Presets
Audio Output
Optical S/PDIF
General
Power Requirement
Power Consumption
Dimension (Max)
Width
Height
Depth
Weight
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.
87.50 MHz to 108.00 MHz (50 kHz steps)
65 dB (Mono) 60 dB (Stereo)
30
522 kHz to 1620 kHz (9 kHz steps)
35 dB
30
Band III, 174 MHz , 240 MHz
Band L, 1452 MHz ~ 1492 MHz
Input: 50 Ohm, nominal
Max signal: ,3 dBm typ
Sensitivity: -96 dBm typ
Adjacent Channel Rejection: 35dB typ
2 line by 16 character DOT Matrix
99
Stereo, 2.5V PF
48 kHz sample rate 16 bit sample resolution
|EC60958 Compliant
48 kHz sample rate 24 bit sample resolution
2307240 V AC, 50 HZ
12 W
3 W (standby)
442 mm
63 mm
299 mm
3.4 kg
All features and specifications are subject to change Without notice.
Harman Kaidon and Power in! the Digital Revolution are registered trademarks of Harman Kardon, Incorporated
Page 2 of 21
