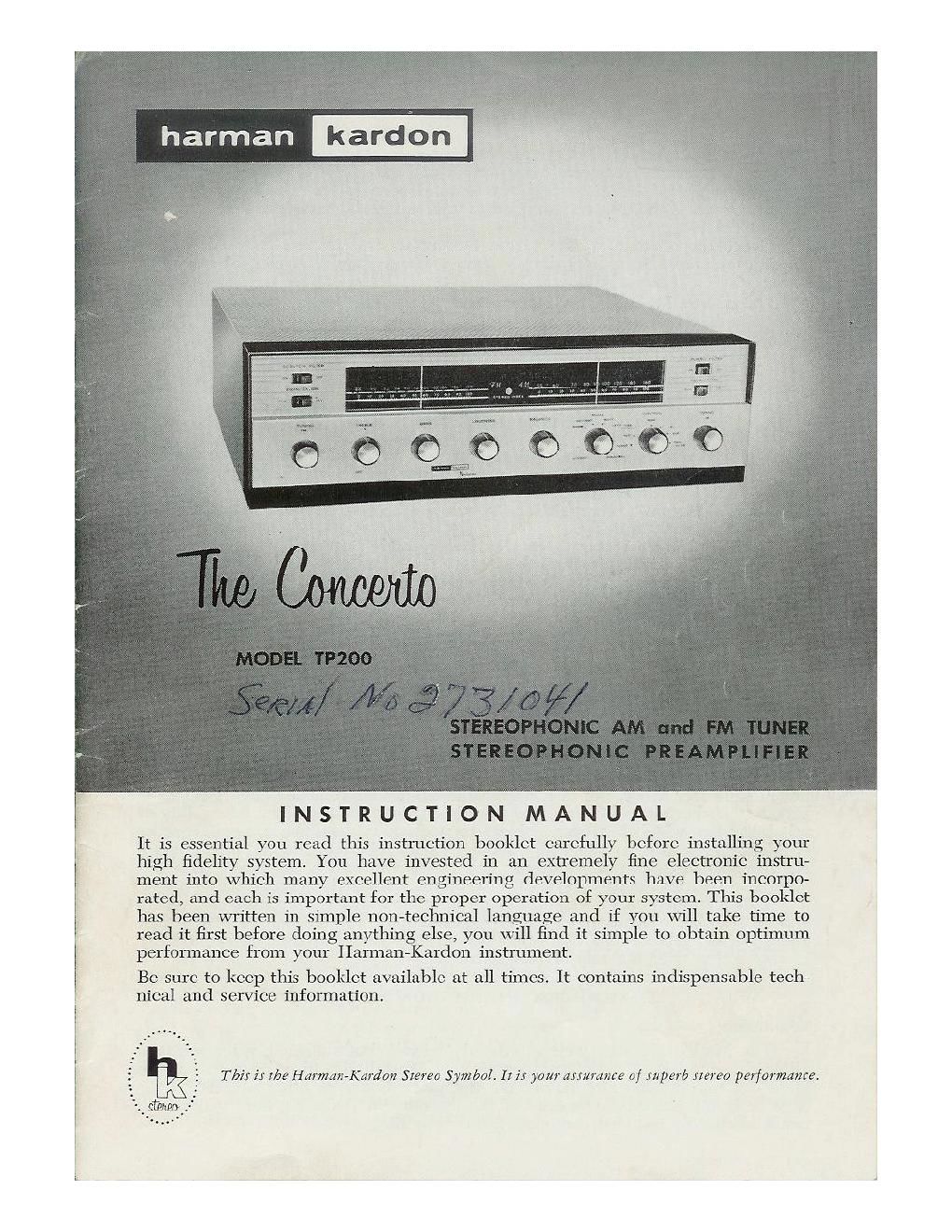

Page 1

INSTRUCTION MANUAL

It is essential you read this instruction booklet carefully before installing your
high fidelity system. You have invested in an extremely fine electronic instru-
ment into which many excellent engineering developments have been incorpo-
rated, and each is important for the proper operation of your system. This booklet
has been written in simple non-technical language and if you will take time to
read it first before doing anything else, you will find it simple to obtain optimum
performance from your IIarman-Kardon instrument.

Be sure to keep this booklet available at all times. It contains indispensable tech
nical and service information.

Tin} i: [I]? Harman-Rania Siereo Symbol. I t 1': your anmauce a] w per/1 .rlereo performance.

Page 2

UNPACKING

After unpacking tho Concerto, inspect it carefully for signs of transit damage.
The unit was subjected to many inspections and tests prior to final packing, and
it therefore should be in perfect condition. If damage is visible, notify your
dealer at once. If the unit was shipped to you, notify the transportation company
without delay.

Check the contents of the carton thoroughly and inspect the folds of the
packing material before discarding it. Your package should contain the following
items:

1 Concerto, Model TP200 Stereophonie AM & FM Tuner, Stereophonic Pre-

arrrplifier.

1 Instruction Booklet

l VVarranty Card

1 Mounting Template.

WARRANTY POLICY

We urge you to completely fill in your warranty card and mail it to the fac-
tory without delay to protect your rights under warranty. The warrantv cards
are carefully filed for reference and should you require information on the use of
this high fidelity unit, or repair service, we will be able to iunnediately identify
your set and reply quickly.

NOTE: It is necessary to rcCeivc factory authorization before returning, a
set for warranty repair either to the factory or to an authorized station. Repair-s
are to he rehrrned on an Express Prepaid basis. A letter describing the. exact diffi-
culty must be enclosed with the unit.

WARRANTY

\Ve warrant each Model TPQOO to be free from defects in material and
workmanship under normal use and service, and in accordance with the condi-
tions herein below set forth, for a period of 1 year from (late of delivery to the
original purchaser, and agree. to replace or repair any part or parts, with the
exception of tubes which are under the manufacturer's 90 day warranty, returned
to us within said 1 year, with transportation prepaid and which our examination
shall disclose to our satisfaction to have been thus defective. This warranty does
not include free. labor. nor is it applicable to any instrument which shall have
been repaired or altered in any way so as in our judgment to affect its stability or
reliability nor which has been subject to neglect. misuse, abuse, negligence or
accident nor which has had the serial number altered. effaced, or removed.
Neither shall this warranty apply to any instrument which has been connected
otherwise than in accordance with histrrrcliorrs furnished by us.

This warranty is expressly in lieu of all other warranties, express or implied.
and of all other obligations or liability on our part, and we neither assume nor
authorize any representative or other person to assume for us any other liability
in connection with the sale of this instrument.

STER EOPHONIC INSTALLATION PROCEDURE

Ventilation:

'lhe Model TPZOO is well ventilated in itself. but sufficient space must be
allowed around it to permit proper air flow. Install the tuner in a manner to
allow for unrestricted circulalion. Do not place books or other objects on the
cage or in the immediate vicinity of the instrument. Reducing the air flow will
result in sharply reduced component and tube life.
