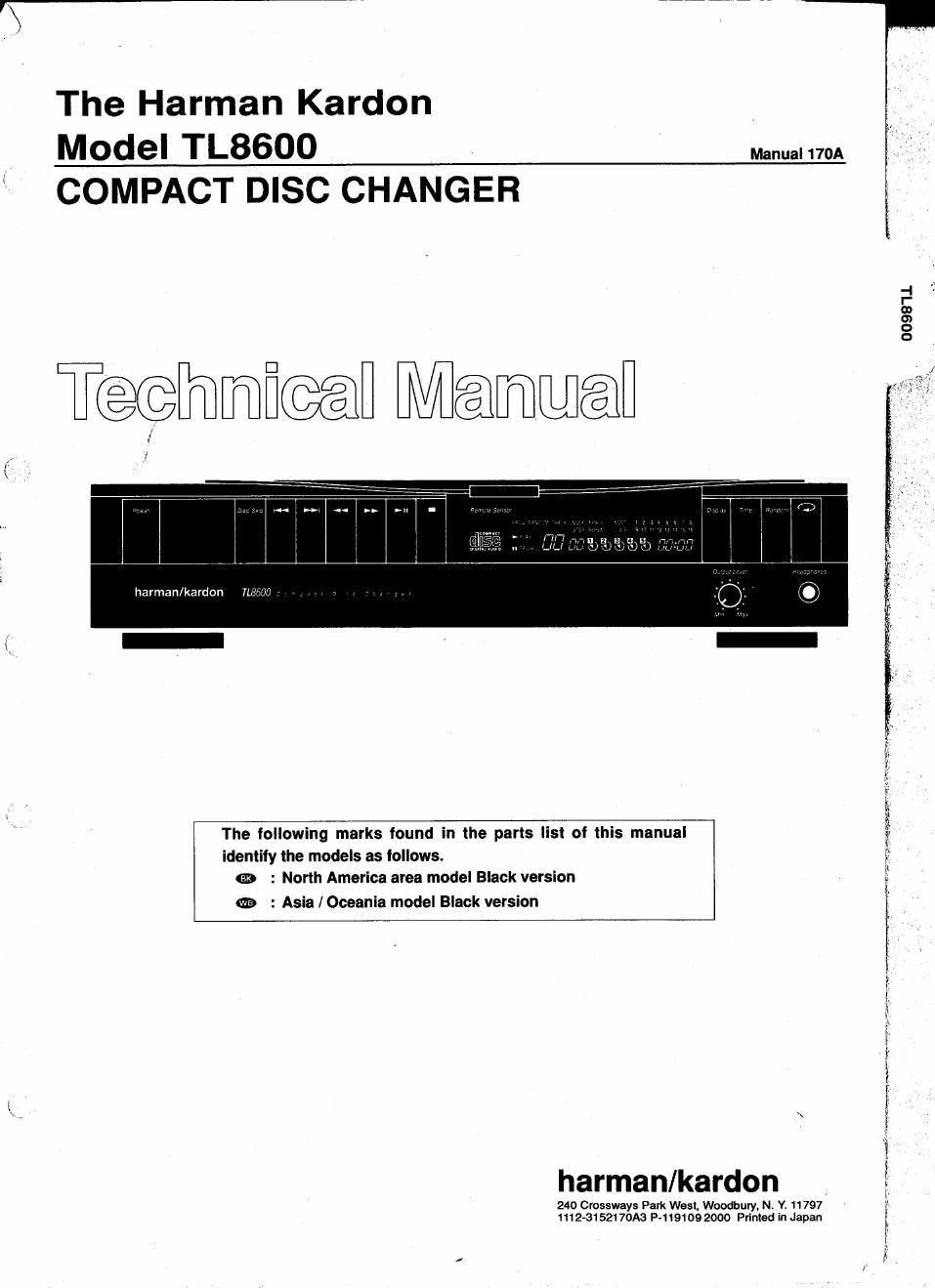

The Harman Kardon
Madel TLBGOO Manual 170A ,
COMPACT DISC CHANGER 1:-
009911
Tecmfififl Méflfiflflflafl
The following marks found in the parts list of this manual
identify the models as follows.
(3 : North America area model Black version
as : Asia / Oceania model Black version
harman/kardon
240 Crossways Park West, Woodbury, Ni V. 11797
1112491 52170A3 P-1191 09 2000 Primed in Japan
WW» .- ~ Wm. , ¢
Page 2
TL8600
'cuss 1 LASER PRODUCT
D
0
L0
to
.J
I-
Product complies with DHHS rules CFR subchapter J part 1040:
10 at date of manufacture.
DANGER-invisible laser radiation when opened and interlock
failed or defeated. Avoid direct exposure to beam.
CAUTION-use of all controls, adlustments or performance of
procedures other than those specified herein may result in
hazardous radlation exposure.
CLASS 1
LASER PRODUCT
Care of the Laser Pickup.
The laser pickup that detects the music recorded on a
CD is located under the compact disc carousel, The
laser pickup. especially its precision lens, is particularly
sensitive to dust. Keep the top cover closed when the
unit is not in use,
ADVAHSEL:
Usynlig Laserstréling ved abning nar
sikkerhedsafbrydere er ude af funktion. Undga
udsettelse for strafing.
VAROITUS!
Laite siséltéé laserdiodin, joka lahettaé nakymatoma
silmille vaarallista lasersateilyé.
SPECIFICATION
Line Output Level : 2.0V/10k9
Frequency Response : 4H2 to 20kHz +0dBI-O.2dB
Dynamic Range 1 QSdB
Signal to Noise Ratio : 104dB
Total Harmonic Distortion (T HD) :0.003%
Channel Separation : 9edB
D/A Converter : Dual, Linear, Pulse Width
Modulated Bit Stream
Clock Rate : 33.8688MH2 (33,368.8kHz)
- I Equipment and tools used tor adlustment
- Servo gain adjuster (See page 12)
- Test disc
(EIAJ CD-t, Philips Test Sample 5A814 126-2)
. Commercial music disc
. Dual channel oscilloscope (minimum frequency
30MHz, with EXT trigger and 1:1 probe)
Power Supply
Ur S. A, and Canada models : AC120V, 60H:
Asia / Oceania models :A0220l240V, 50/60Hz
Power Consumption : 20 Watts
Dimensions : 17-3/8" x 4" x 16-1/8"
(44a x100 x 410 mm)
Weight : 14.9 lbs (68 kg)
Specifications and components subject to change without notice
Overall performance will be malntained or improved.
- Low-frequency oscillator
. Hex wrench (M2.0)
~ Hex wrench (M127)
. Feelergauge 0.9mm
C
