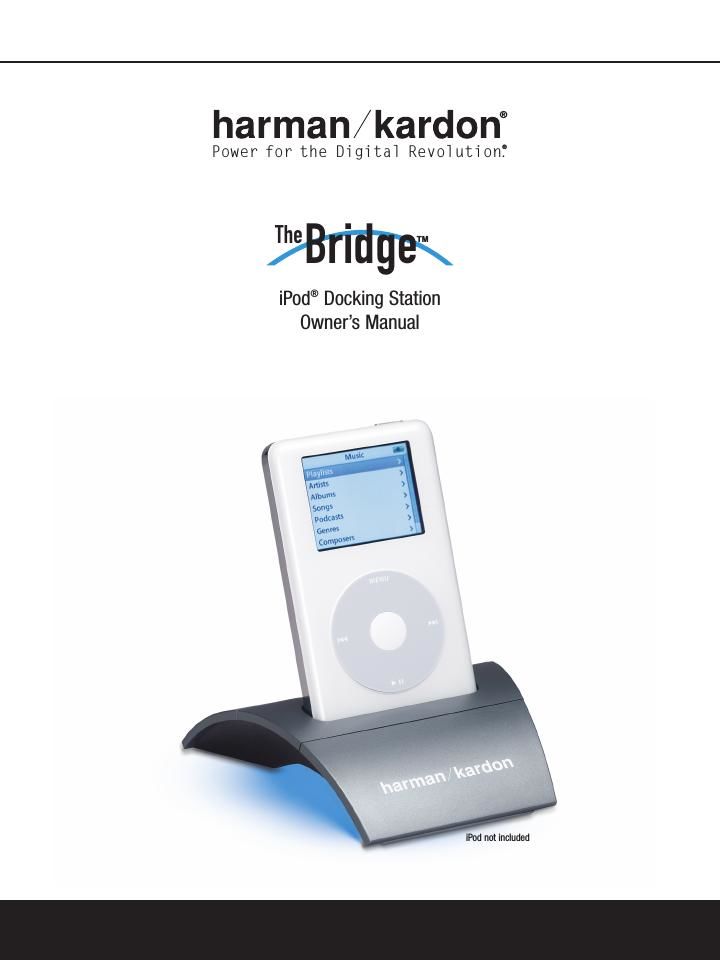

Harman kardon the bridge owners manual

Page 2

Press buttons when inserting or removing the plug. Docking Your iPod After placing the appropriate insert in the center well of The Bridge and con necting The Bridge to your receiver, dock your iPod by placing it into the insert, gently pressing it down until the connectors mate on the iPod and The Bridge. NOTE: If you normally keep your iPod in a protective case, or skin, you will need to remove it before playing your iPod in The Bridge. Using The Bridge Once The Bridge is connected,you may use either the frontpanel controls orthe AVRs remote to select tracks for playback from your iPod. To select the iPod docked in The Bridge,press the DMP/The Bridge Button on the remote, or use the Source Selection Button on the front panel to change sources, as described in the receivers owners manual. When an iPod is correctly docked in The Bridge, a message will appear in the frontpanel and on screen displays to confirm that The Bridge is CONNECTED , after which the displays will switch to the iPod navigation menus and the iPods own menu screen will be replaced by a check mark and a message reading OK to disconnect. NOTE: If the iPod is not properly con nected to the dock,amessage read ing Please check connection or bat tery condition may scroll across the bottom line of the receivers onscreen and frontpanel displays. If you see this message, remove the iPod and insert it in The Bridge again, making sure that it seats properly. When an iPod is properly connected to a receiver via The Bridge (as con firmed by the appearance of the check mark rather than the standard iPod menus) the iPodsClick Wheel and controls do not operate. Instead, you must use either the receivers frontpanel buttons or the remote control to operate your iPod. Controlling the iPod Refer to the table below to select the frontpanel or remote control buttonfor the desired iPod function. Press that button to operate the iPod. For example, to play a track on the iPod, you would normally press the ›IIicon at the bottom of the Click Wheel. To play a track using an iPod docked in The Bridge, press the Tune Mode Button on the front panel of your receiver, or the Play Button on the receivers remote. Navigating the iPods Menus To help you in selecting tracks and navigating through the iPods contents, twoline messages will be displayed in the receivers frontpanel display and on the video display connected to your receiver. In most cases, these display and navigation messages will closely mirror the familiar iPod menus. The upper line of the receiversdisplay will show the title of the current menu, such as Playlists, Artists, Albums, Genres,Songs, etc. The lower line will show each choice available for selec tion within that category as you scroll to it,similar to scrolling down the list of choices in the iPods menu. iPod Button iPod AVR Front AVREquivalent Function Panel Button Remote Button ›II Play/PauseTune ModePlay I‹‹ Previous Track Tune Down ‹‹ ›› I Next TrackTune Up ›› Menu Menu CallUp AM/FM Menu Select ButtonSelect FunctionSetSet ›II Pause Tune Mode Pause Click Wheel Scroll Preset Up Navigation Clockwise Forward Arrow Right › Click Wheel Scroll Preset NavigationCounterclockwiseBackward Down Arrow Left ‹ 3
