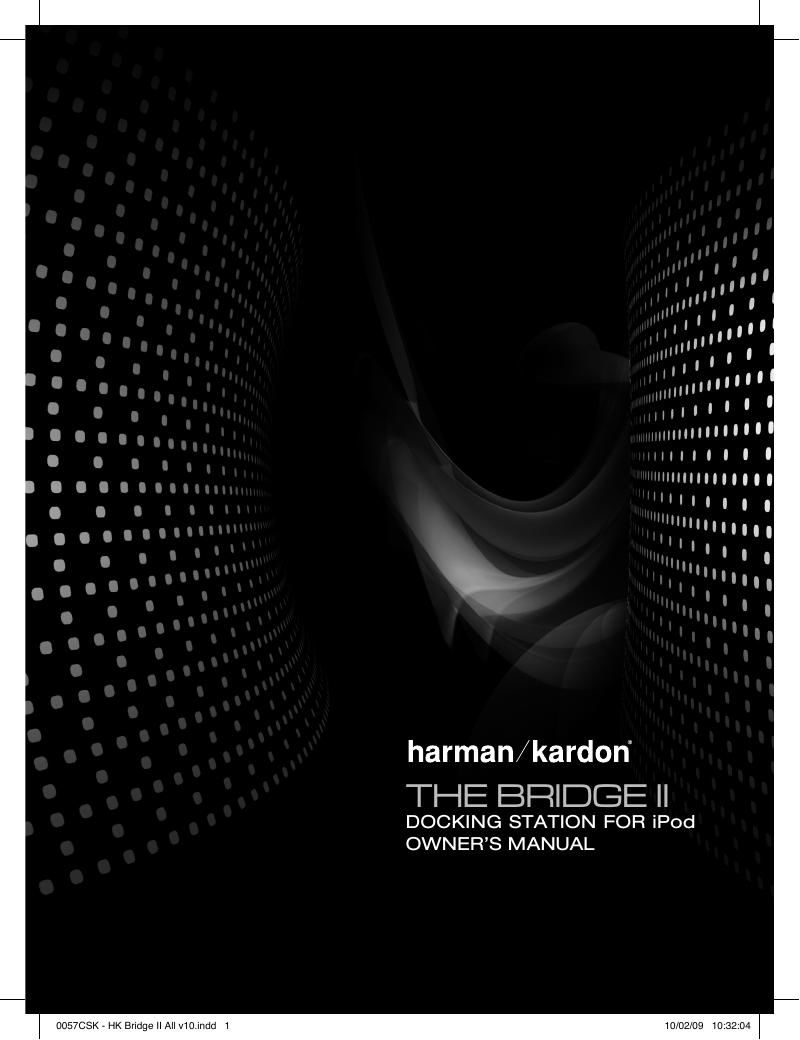

Harman kardon the bridge 2 owners manual
This is the 8 pages manual for harman kardon the bridge 2 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon the bridge 2 owners manual (Ocr-read)
Page 1
2 Congratulations! With The Bridge II, you are entering the new world of entertainment made possible by combining the incredible storage capacity and playback flexibility of an iPod with the sonic power of your Harman Kardon ® system. With a single cable, your iPod is connected, and all you need is your remote control to get started! Features - Single connection to any The Bridge-ready Harman Kardon product - Plays content from a compatible iPod through your Harman Kardon system - Controls your iPod, using the Harman Kardon remote - Easy track selection with on-screen navigation - Charges the iPod Included - The Bridge II docking station - Five clear dock adapters, marked NANO, 5G (VIDEO 60GB), 5G (VIDEO 30GB), 13 and 12, 14 - Black insert marked UNIVERSAL to accept appropriate dock adapter - Adapter for use with The Bridge-ready products Compatibility The Bridge II is compatible with all The Bridge- and The Bridge II-ready Harman Kardon receivers, and the Harman Kardon DMC 1000 digital media center. As of the printing of this manual, these models include: - Audio playback only: AVR 140, AVR 240, AVR 340, AVR 145, AVR 245, AVR 445, AVR 645, AVR 745, HK 3490 and DMC 1000 (still-image playback available on DMC 1000) - Audio, video and still-image playback: AVR 146, AVR 147, AVR 247, AVR 347, AVR 350, AVR 355 (230V), AVR 660 (230V), AVR 760 (230V), AVR 354 (120V), AVR 3550HD (120V) and AVR 7550HD (120V) The Bridge II is compatible with most iPod models equipped with dock connectors, 4G or later. Video and still-image playback is only possible with photo- and video-capable iPod models that support video browsing: the iPod 5G, iPod classic and iPod nano (3rd generation). inTRODUCTiOn iPod not included 0057CSK - HK Bridge II All v10.indd 2 10/03/09 9:19:12
Page 2
3 English InSTALLATIOn InstallIng With only a single cable connection, The Bridge II is easy to connect to your Harman Kardon product. step One: Turn off the Harman Kardon The Bridge- or The Bridge II-ready product, using its master power switch. step two: -Ready Products – Holding the cable with the wider part of the connector at the bottom, gently squeeze the tabs on each side as you insert it into the connector on the rear panel of the Harman Kardon product. See Figure 1. Figure 1 – The Bridge II connector on The Bridge II-ready Harman Kardon products -Ready Products – A different con - nector was used on The Bridge-ready Harman Kardon products and the HK3490, as shown in Figure 2. Do not plug The Bridge II directly into the DMP/The Bridge connector on the rear panel of these products. First, connect the included adapter to The Bridge II cable, then plug the adapter into the product. Figure 2 – The DMP/The Bridge connector on The Bridge-ready Harman Kardon products step three: Place the black insert in The Bridge II, making sure to push it all the way down. See Figure 3. nOtE: Do not place an iPod in The Bridge II unless both the black insert and a dock adapter are installed. Otherwise, the iPod will not connect properly, and both it and the Bridge II may sustain damage that is not covered by the warranty. step Five step Fourstep three step Four: Locate the dock adapter that was included with your iPod, or select one of the included clear dock adapters by referring to Table 1. If your iPod is an older model that does not appear in Table 1 and that did not include an adapter, contact Apple Inc. to purchase one. Place the adapter in The Bridge II insert, as shown in Figure 3. step Five: Remove the iPod from any case, and dock it in The Bridge II, as shown in Figure 3. The Bridge II Insert iPod Model NANO iPod nano, 1st and 2nd generation 5G (VIDEO 60GB) iPod, 5th generation (60GB, 80GB) and iPod classic (1 60GB) 5G (VIDEO 30GB) iPod, 5th generation (30GB) and iPod classic (80GB) 1 3 iPod nano, 3rd generation 1 2, 14 iPod touch – install large bumper table 1 – select the Correct the Bridge II Insert Figure 3 – Docking an iPod in The Bridge II 0057CSK - HK Bridge II All v10.indd 3 10/02/09 10:32:16
