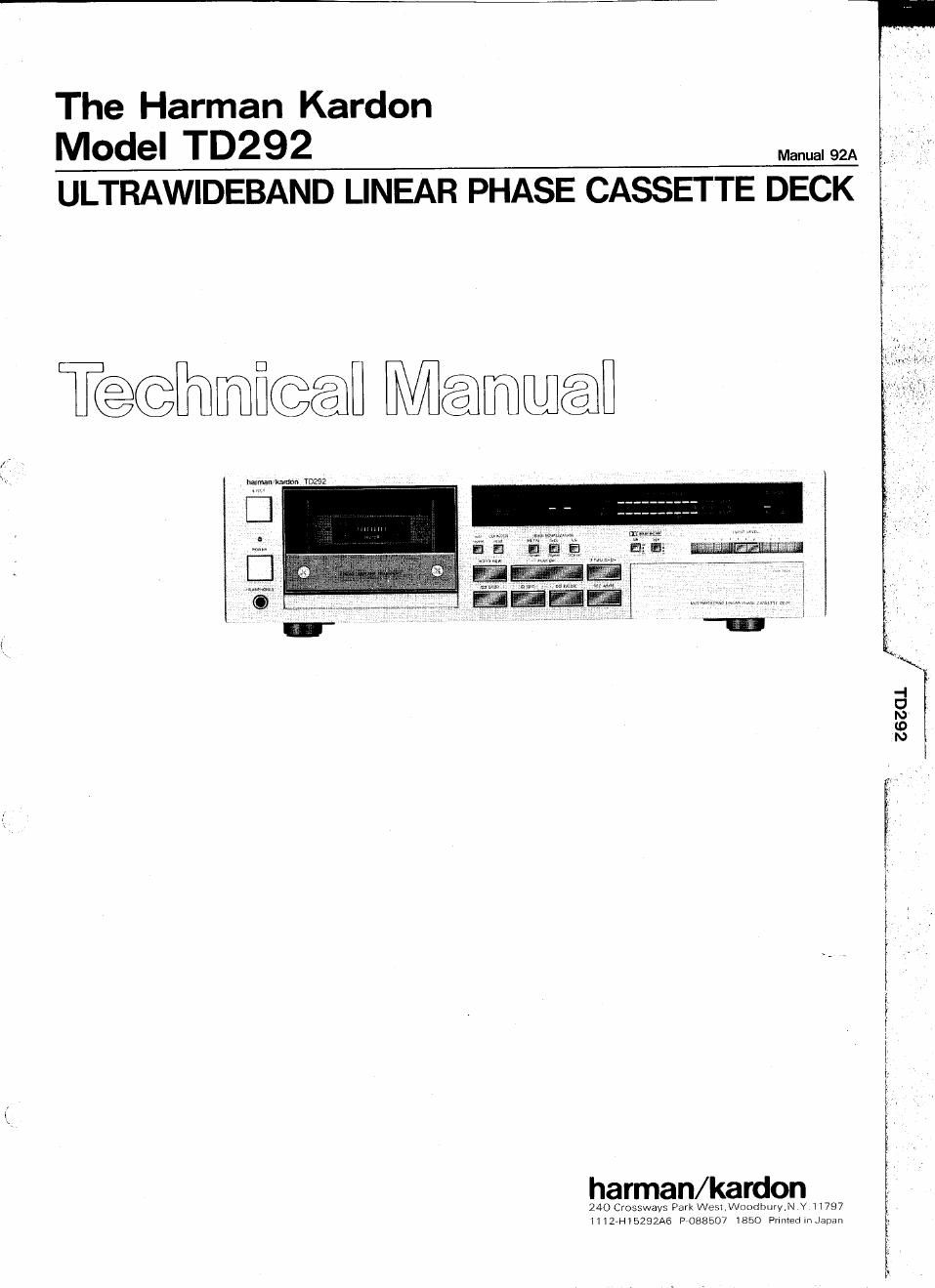

Harman kardon td 292 service manual

Page 2

N
a)
N
O
I-

SPECIFICATIONS

Track Configuration

Nominal Limit
4-track 2 Channel Stereo
Cassette Deck
0 MECHANICAL SECTION
Record/Playback Tape Speed
Deviation 4.75 cm/sec.
Drift 4.75 cm/sec.
Wow and Flutter

0.05% :ei.5%

0.2% i1.5%
0.05%(NABI50.08%
0,08%(CCIRI£O.14%

Take Up Torque 509r. cm 35~ 709r. cm
Back Tension 4gr. cm 2~69r. cm
F.FWD Torque IOOQr. cm 70~150gr. cm

REW. Torque 100gr. cm 70~150gr. cm

F.FWD/REW. Time 90 sec. 5100 see.
(C-60 Tape)

Motor Direct Drive motor

. AMPLIFIRE SECTION

Bias Frequency

Playback Output

Signal at Line Input (Input 1kHz,100mVI
IHF-A WTD at Dolby Level

105kHzi5kHz
520mV $1.5dB

Dolby* NFI Off LN 51dB
CrOz 54dB
Metal 54dB
Dolby B NR LN GidB

CrOz 64dB z 60dB

Metal 64dB 2 60dB
Dolby c NR LN 66dB

CrOz 70:13 2 66dB

Metal 7on3 2 66dB

~Dolby noise reduction manufactured under license from Dolby Laborato-
ries Licensing Corporation. Dolby" and the double-D symbol are
trademarks of Dolby Laboratories Licensing Corporation.

Nominal Limit
Channel Separation 45de35dB
Crosstalk 70d3260dB
Record/Playback Distortion
(Input 1kHzl

LN 1.0%5 1,6%
CrOz 1.8%53.0%
Metal 1.096516%
MPX Filter Attenuation
at 15kHz 0.3st1dB
at 19kHz 35dBZSOdB
Erase Flatio (Input 80Hz)
LN 70d3260dB
Metal 61dB2 56dB
52mV 40(min)~100(maxlmV

F\

Input Sensitivity

(Input 1kHZI at Line Input
Input Impedance

(Input 1kHzI at Line Input

9 DIMENSIONS (W x H x D) 17-7/16" x 443/16 x 13-1/8"
(443 x122 x 334 mm)

12le. 902. (5.7kgl

23ku 19(min) ~ 30(max)k(l

. WEIGHT
0 POWER SUPPLY

U.S.A. & Canada models AC120V, 60Hz

General model AC100/120/220/240V, ,

50/60Hz ( x:

9 POWER CONSUMPTION '
U.S.A. & Canada models 18W
General model 20W

Specifications and components subject to change without notice. Overall
perlormance will be maintained or improved.

This specification is the target of servicing, But. there is a case that the
specification is not applicable to the measurement condition and instrument.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE USA.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators,
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester.
standard equipment item No. 21641, RCA Model
WT54OA or use alternate method as follows:

Plug the power cord directly into a 120»vo|t AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 IrF capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher, sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

T0 AC GROUND SUCH
AS WATER OR BX CABLE,
CONDUIT, ETC.

HIGH
VOLTAGE
OR +LEAD

GROUND
LEAD

Ly:

{ii

VTVM
.0 AC SEALED.

1l5kfl
10W

VVV

_ll_

0.15pF

{
\ H
TEST PROBE
TO EXPOSED CONNECT TO KNOWN
METAL PARTS EARTH GROUND

resistor. (This test should be performed with the power switch in both the On and Off positins.)
A reading of 0.35volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
