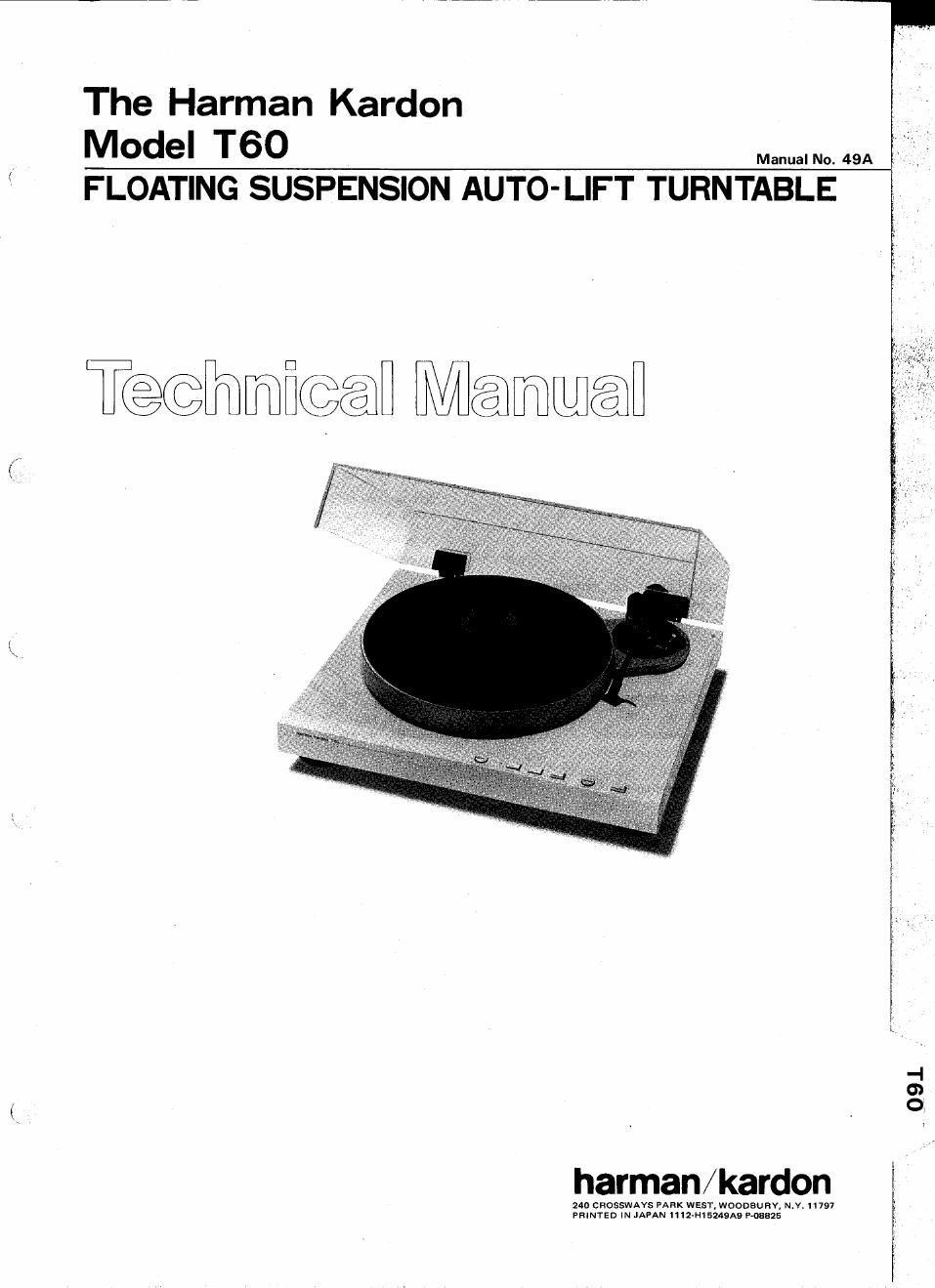

Harman kardon t 60

Page 2

CONTENTS
f SPECIFICATIONS ....................... 2 GENERAL UNIT PARTS LIST .............. 11
v» LEAKAGE TEST ........................ 2 ELECTRICAL PARTS LIST .......... . . 12,13
COMPONENTS ......................... 3 PACKAG E ........................... 14
INTERNAL VIEW ....................... 4 SCHEMATIC DIAGRAM .................. 15
DISASSEMBLY PROCEDURES ............. 4. 5 IC FUNCTIONAL BLOCK DIAGRAM ......... 15
CARTRIDGE REPLACEMENT INSTRUCTION . . . 6 BLOCK DIAGRAM ..................... 15
ALIGNMENT PROCEDURES .............. 7,8 WIRING DIAGRAM ..................... 16
GENERAL UNIT EXPLODED VIEW ......... 9,10
SPECIFICATIONS
0 Speed Nominal Limit 0 Dimensions (W x H x D) 17-4/9" x 52/3" x 15-1/9"
Quartz lock (443 x 144 x 384 mm)
33-1/3 *0-1% +05% -0-2% 0 Weight 20.5 lbs. (9.2 kg)
45 10.1% +0.5% -0.2%
Control width 0 Power Supply AC 120V, 60Hz
33-1/3 $3.096 0 Power Consumption SW
45 $3.096
0 Wow and Flutter 0.04% S 0.07%
O Signal~to~Noise Ratio GSdB Z 60dB . . .
. Specifications and components subject to change without notice.
0 Possible Cartridge Weights 2.59 N 89 Overall performance will be maintained or improved.

LEAKAGE TEST

Before returning the unit to the user, perform the following safety checks:
1. Inspect all lead dress to make cer-
tain that leads are not pinched or

that hardware is not lodged be- SIMPSON MODEL 229 ETC-FOR

tween the chassis and other metal LEAKAGE TEST

parts in the unit. TO EACH exposeo T0 AC GROUND sucn
2- Replace a" devices saw mazes? cassesssssfas

as nonmetallic control knobs, inv VOLTAGE LEAD

sulating fishpapers, cabinet backs, on + LEAD

adjustment and compartment cov-

ers or shields, isolation resistor-

capacity networks, mechanical in-

sulators, etc.
3. Be sure that no shock hazard exists; check for leakage

current using Simpson Model 229 Leakage Tester, 6

standard equipment item No. 21641, RCA Model

WT540A or use alternate method as follows: VTVM

Plug the AC line cord directly into a 120»volt AC -0AC SCALEO-

receptacle (do not use an Isolation Transformer for

this test). Using two clip leads, connect a 1500 ohm, 151'; 3VHM
10«watt resistor paralleled by a 0.15mf capacitor, in M
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 ohms per volt, or _I '-
higher, sensitivity to measure the AC voltage drop 0.15 MF
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a

O ' . TEST PROBE
(D return path to the chassis (antenna, metal, cabinet,
I- screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the To EXPOSED CONNECT To KNOWN
METAL PARTS EARTH GROUND

resistor. (This test should be performed with the
power switch in both the On and Off positions.)
A reading of 0.35 volt RMS or more is excessive and
indicates a potential shock hazard which must be
corrected before returning the unit to the owner.
