Harman kardon t 55 c owners manual

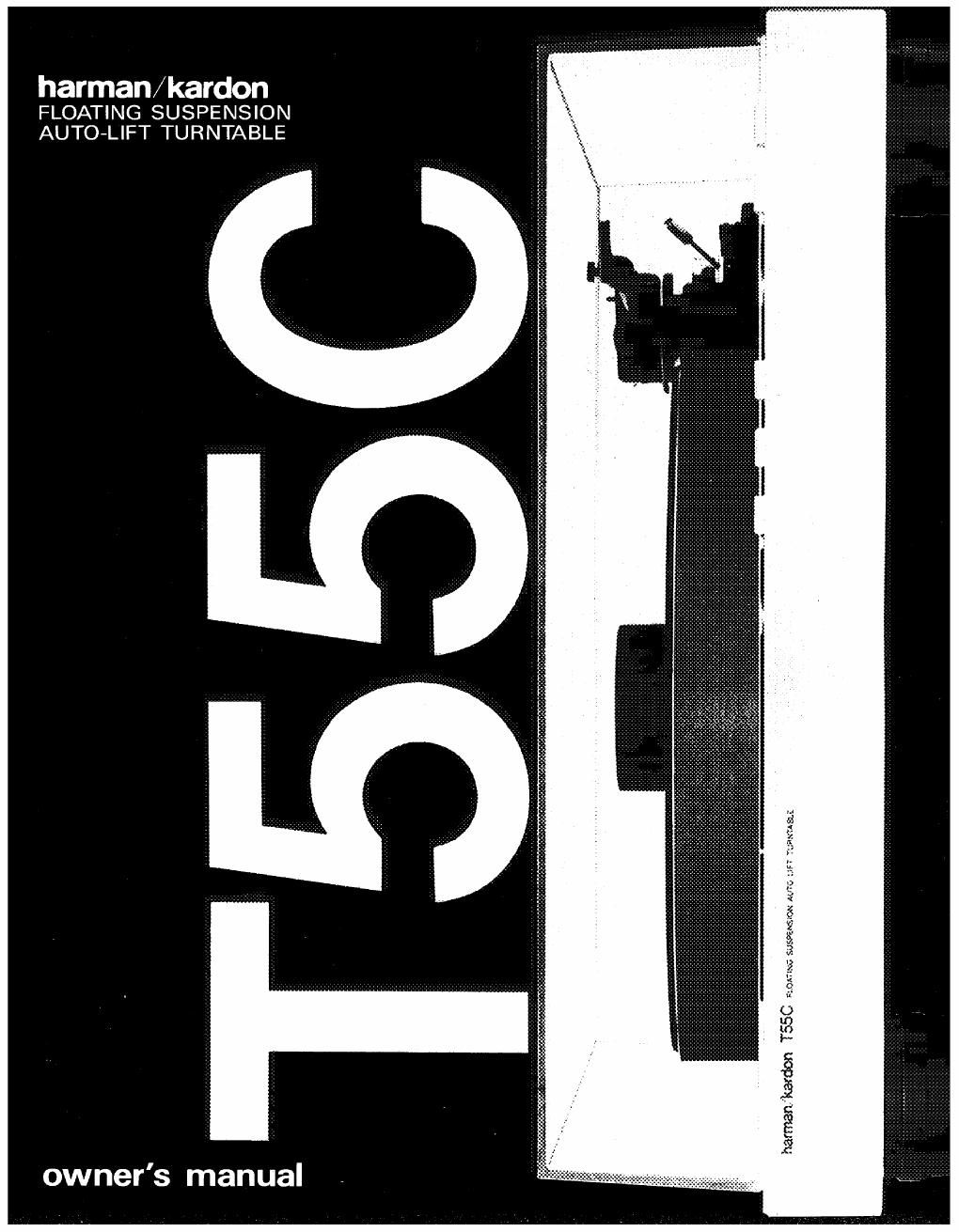

Page 1

harman/kardon
FLOATING SUSPENSION
AUTO-LIFT TURNTABLE

harmnfiaafim 755C hams; aumwm Aura-

owner's manual

Page 2

Congratulations on your purchase of the
Harman Kardon T55C Floating Suspension Auto-
lift Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your turntable only in
accordance with its instructions. Keep it in a safe
place for future reference.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER~
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user of the
presence of uninsulated "dangerous voltage" within the
products enclosure; that may be of sufficient magnltude
to constitute a risk of electric shock to persons

tended to alert the user of the presence of important oper-
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

j The exclamation point within an equilateral triangle is in-

WOW & Flutter IWRMS)
Rumble (DIN-B WTD)

Fitch Adjustable Range

Tonearm
Effective Tonearm Mass:

Stylus Overhang
Offset Angle
Effective Length
Tracking Error
Phone Capacntance
Tracking Force

Acceptable Weight of
Cartridge

Dimensions (WX H x D)

Weight
Power Supply

Power Consumption

SPECIFICATIONS

: 0.035%
: -68dB, DIN 45544

record reference

:13%

89 (plus the mass of
the cartridge used)

:18mm

1 255°

: 216mm

: 1-2 degrees

: 100/200/300pF
: O~3 grams

:3~Sg

:17-1/2" x5-3/4 >< 15-1/8

I443X l45>< 384 mm)

:16Ibs.loz, (7.3kg)
:AC 120V, 60Hz
:8W

All specifications and ieatures subject to change Without rVetice.
