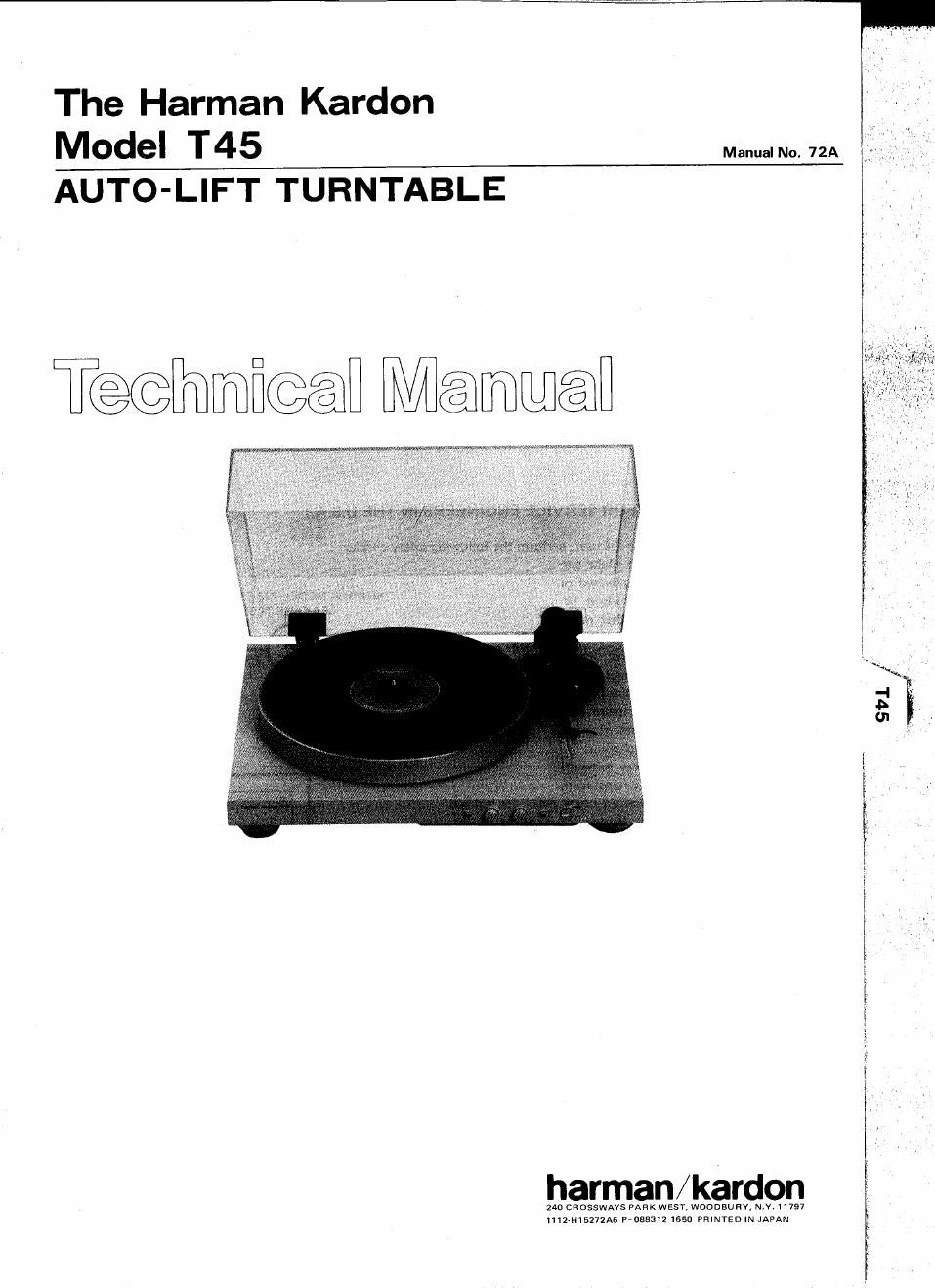

The Harman Kardon

Model T45
AUTO-LIFT TURNTABLE

Manual No. 72A

T@@Pmmfi@@ Mmm

harman/kardon

240 caosswnvs PARK WEST. woonsunv. N.V. 11797
I'l12-HI5272A6 p-oasarz 1850 PRINTED IN JAPAN

Page 2

SPECIFICATIONS
Wow & Flutter (WRMS) 0.04% Acceptable Weight of Cartridge 3 ~ 89
I j Rumble (DIN-B WTD) -68dB, DIN 45544 Dimensions (W x H x D) 17-3/8" x 5-3/4" x 14-13/16"
record reference (440 x 145 x 375mm)
Pitch Adjustable Range 13% Weight 15 lbs. 7 oz. (7kg)
Tonearm Power Supply
Effective Tonearm Mass 3g (plus the mass of USA. and Canada models AC120V, GOHZ
the cartridge used) General model AC110-120V/220-240V,
Stylus Overharlg 18mm 50/60Hz
Offset Angle 255° Power Consumption 8W
Effective Length 216mm
Tracking Error :2 degrees
Phono Capacitance 150/250/350pF Specifications and components subject to change without notice
Tracking Force 0 N 3 grams Overall performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:
1. Inspect all lead dress to make cer-
tain that leads are not pinched or
that hardware is not lodged be-

tween the chassis and other metal

parts in the unit. TO EACH EXPOSED
METAL SURFACE or

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

T0 AC GROUND SUCH
AS WATER OR BX CABLE.

2. Be sure that any protective devices UNI-r UNDER T551- HIGH GROUND CONDUIT, ETC,
such as nonmetallic control knobs, VOLTAGE LEAD
m insulating fishpapers, cabinet backs, 0 -EAD
V adjustment and compartment cov-
I- ers or shields, isolation resistor-
capacity networks, mechanical in~
sulators, etc. which were removed
for servicing are properly reinstalled.
3. Be sure that no shock hazard exists; check for leakage 5
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model VTVM
WT540A or use alternate method as follows: 0AC SCALE 0'
Plug the power cord directly into a 120volt AC LSKQ
receptacle (do not use an Isolation Transformer for 10w
this test). Using two clip leads, connect a 1500 MM,

Ohm, 10-watt resistor paralleled by a 0.15uF capac-
itor, in series with all exposed metal cabinet parts

and a known earth ground, such as a water pipe or -| '-
conduit. Use a VTVM or VOM with 1000 Ohms per 0.15;":
volt, or higher, sensitivity to measure the AC voltage

drop across the resistor. (See Diagram.) Move the TEST PROBE

resistor connection to each exposed metal part having

a return path to the chassls (antenna, metal, cablnet, To EXPOSED CONNECT TO KNOWN
screw heads, knobs and control shafts, escutcheorl, METAL pARTS EARTH GROUND

etc.) and measure the AC voltage drop across the

resistor, (This test should be performed with the

power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before
returning the unit to the owner.
