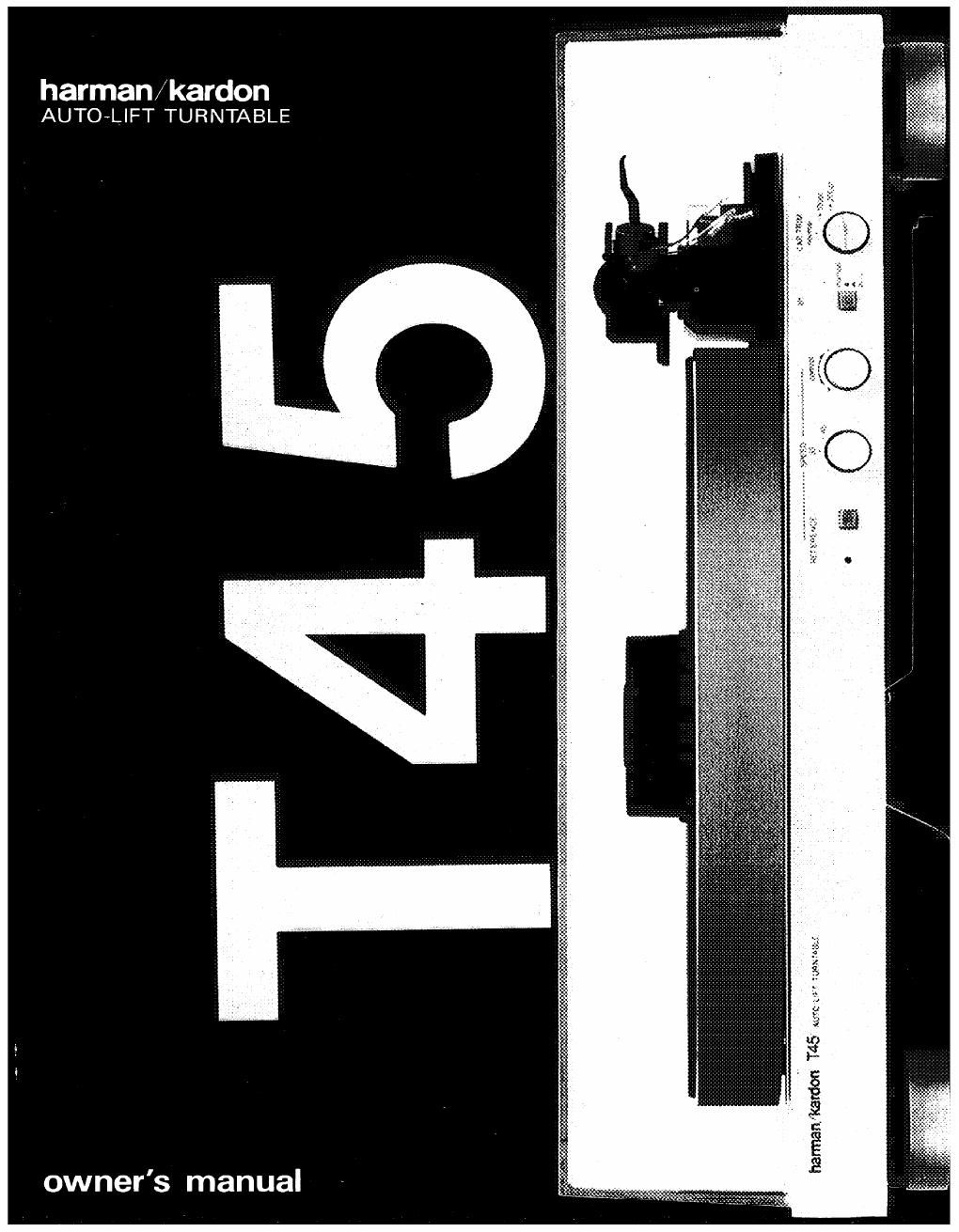

Page 1

harman/kardon
AUTO-LIFT TURNTABLE

hermanxkerdon T45

owners manual

Page 2

SPECIFICATIO

Congratulations on your purchase of the
Harman Kardon T45 Auto-lift Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your turntable only in
accordance with its instructions. Keep it in safe
place for future reference.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACKi NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol. within an
equilateral triangle, is intended to alert the user of the
presence of uninsuiated dangerous voltage" within the
products enclosure; that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point Within an equilateral triangle is in-
tended to alert the user of the presence of important oper-
ating and maintenance lserwcing) instructions in the
literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Wow & Flutter iWRMS)
Rumble (DIN-B WTD)

Pitch Adjustable Range

Tonearm
Effective Tonearm Mass

Stylus Overhang
Offset Angle
Effective Length
Tracking Error
Phone Capacitance
Tracking Force

Acceptable Weight of
Cartridge

Dimensions (Wx H x D)

Weight
Power Supply
Power Consumption

: 0,04%
: -68dB, DIN 45544

record reference

:i3%

: 89 (plus the mass of the

cartridge used)

: 18mm

: 255°

: 2l6mm

: 12 degrees

: 160/250/350pF
: O~3 grams

:3~89

: 178/8 X 53/4" X 14-13/16

(440x145x375 mm)

: 15lbs. 7oz. (7kg)
: AC lZOV, 60Hz
: 8W
