Extracted text from harman kardon t 45 c service manual (Ocr-read)

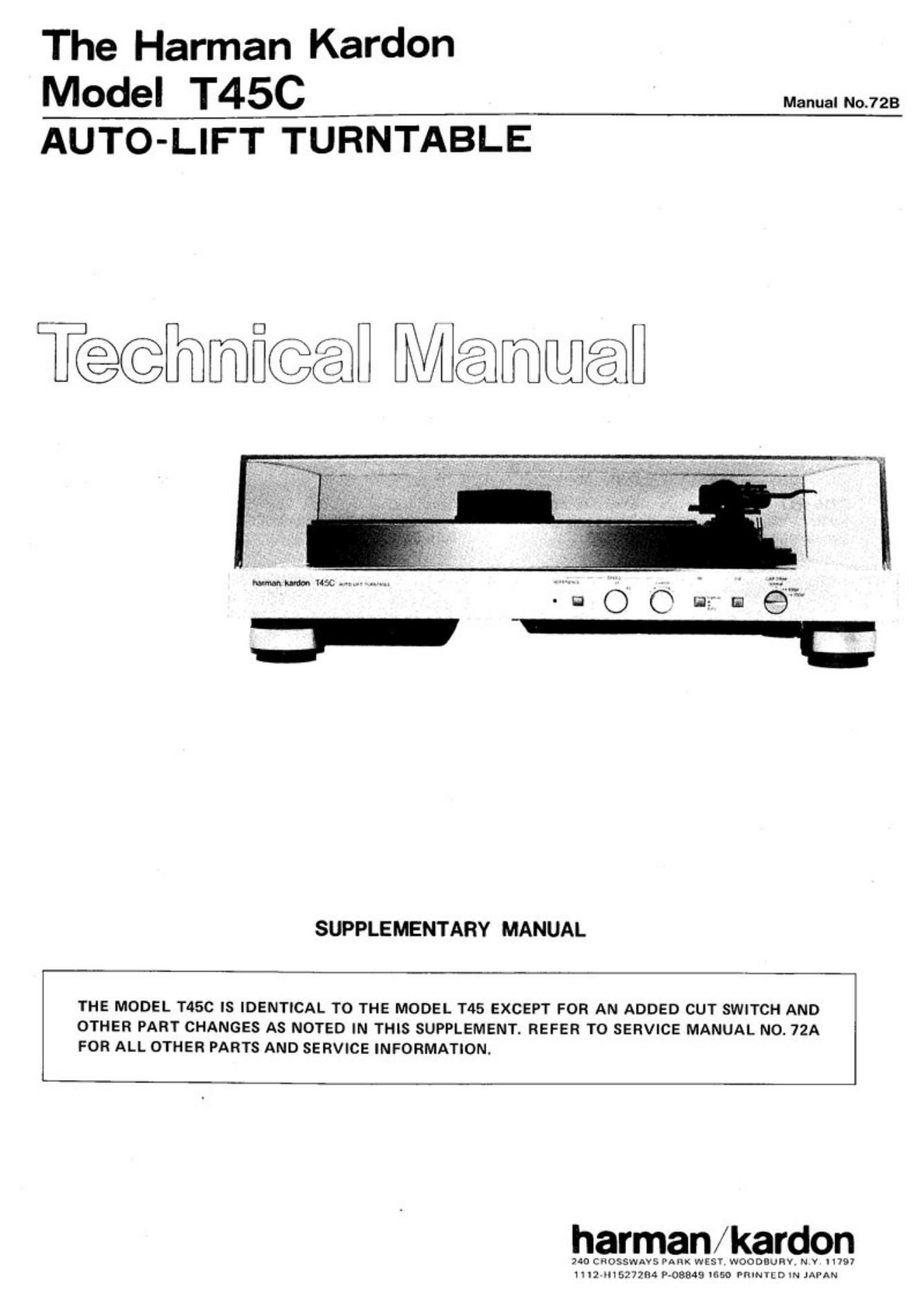

Page 1
The Harman Kardon
MOdel T45C Manual No.728
AUTO-LIFT TURNTABLE
1 @mw@fl
T@@hmk%a
SUPPLEMENTARY MANUAL
THE MODEL T45C IS IDENTICAL TO THE MODEL T45 EXCEPT FOR AN ADDED CUT SWITCH AND
OTHER PART CHANGES AS NOTED IN THIS SUPPLEMENT. REFER TO SERVICE MANUAL NO. 72A
FOR ALL OTHER PARTS AND SERVICE INFORMATION.
harman/kardon
240 CROSSWAVS PARK WEST WOODBURV. N V H797
11 I2 15977914 koseos mm anuo IN JAPAN
Page 2
GENERAL UNIT PARTS LIST
Ref. No. ,_ A y i - 1-Port No. description;
1 A415-T45CA Cabinet Assembly (for U.S.A. 8: Canada models)
A415-T45CB Cabinet Assembly (for General model)
2 A443-T45C Front Panel Assembly
39 897342 Spacer
41 874045 Bracket
ELECTRICAL PARTS LIST
Ref. no; " W--. ] Se's'crapiion _,--~ ~
CHASSIS MISCELLANEOUS
C01, 2 913142-1 Connector, Power Cord
SW1 915021-1 Micro-Switch, Rest
J1/2 913924-3 2oPin Jack, Output
PCB-1 MAIN P.C. BOARD
C216. 217 5345476-25 Capacitor, 47yF, t20%, 25V, Electrolytic
X206 24104103 Transistor, 280945(Ql or 280945(Pl or 2SC945(K)
SW204/205 915370 Push Switch, Lift, Cut
