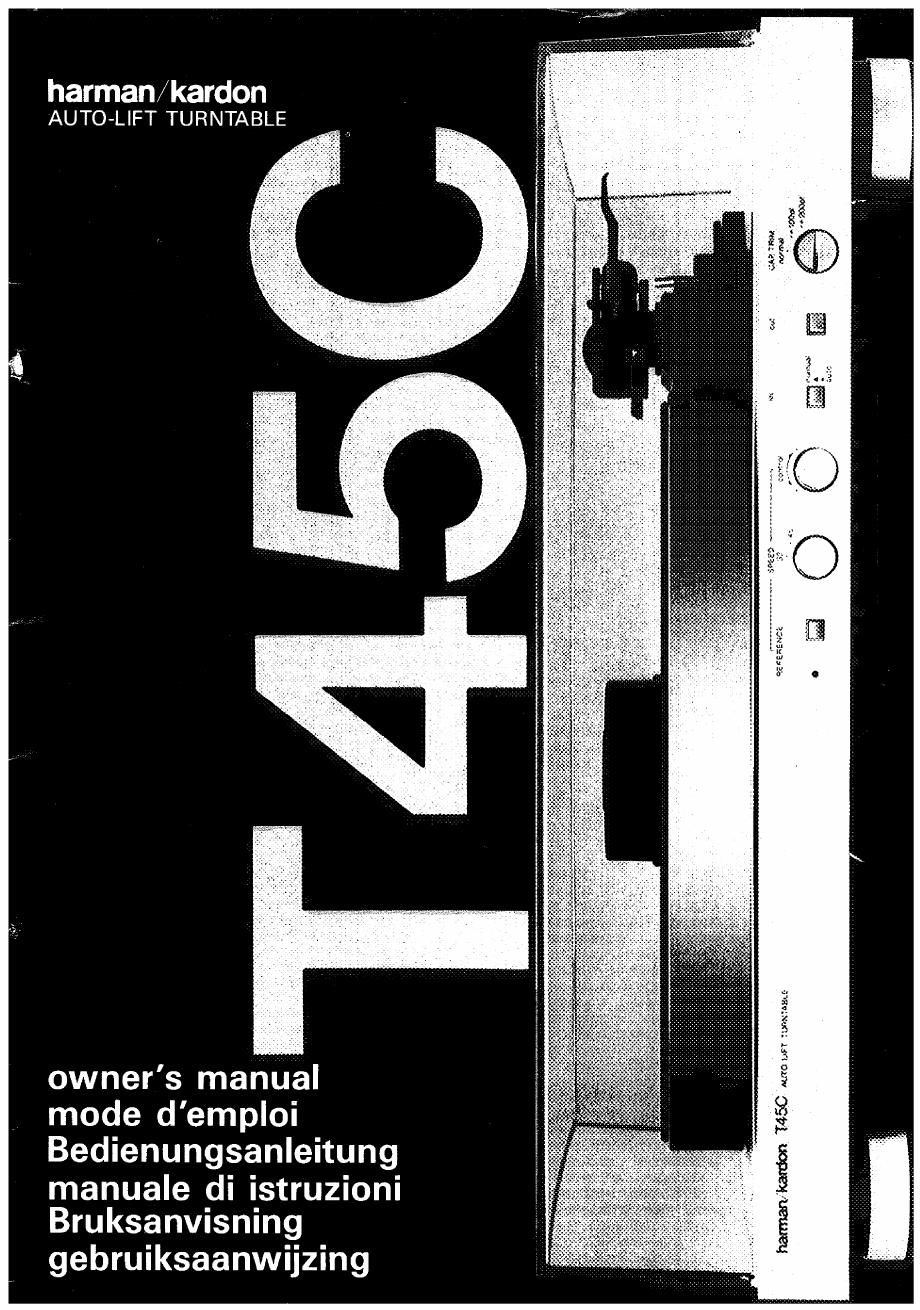

Harman kardon t 45 c owners manual

Page 2

PECIFIC TIONS

Congratulations on your purchase of the
Harman Kardon T45C Auto-lift Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your turntable only in
accordance with its instructions. Keep it in a safe
place for future reference

Wow & Flutter (WRMSI : 0,04%

Rumble IDlN-B WTDl : -68dB, DIN 45544 record
reference
Pitch Adjustable Range : i 3%
Tonearm
Effective Tonearm Mass : 89 (plus the mass of the
cartridge usedl

Stylus Overhang : 18mm

Offset Angle : 255

Effective Length : 216mm

Tracking Error : : Zdegrees

Phono Capacitance . i601250l350pF

Tracking Force :O~3 grams
Acceptable Weight of ' 3~89

Cartridge

Dimensions (W X H X D) : 17-3/8 " X 5-3/4 X14-13/16

(440x 145 x 375 mml

Weight : 15lbs.7ozt l7kg)

Power Supply

General model : AC 110-120/220-24OV1

50/60Hz
Canada model : AC 120V, 60Hz
Power Consumption : 8W

All specrlicazions ano features suoiect to change without notice

This apparatus has been produced to comply with directive No.
761889lEEC (CISPR i4l,

FOR CUSTOMERS IN THE UK
Your unit is supplied With the flex which will have either two or three
wires, so the following items should be observed to guarantee safety:

THREE CORE FLEX
WARNING: THIS APPARATUS MUST BE EARTHEDI
IMPORTANT. The wires in this mains lead are coloured in accordance
with the following code:

Green-and-yellow Earth

Blue . Neutral

Brown Live

As the colours of the Wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
rn your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to
the terminal in the plug which is marked by the letter E or by the safer
ty earth symbol a- or coloured green or green-and-yellow

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The Wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red

TWO CORE FLEX
IMPORTANT. The wires in this mains lead are coloured in accordance
with the followmg code:

Blue : Neutral

Brown , Live

As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal
which Is marked With the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal
which is marked With the .etter L or coloured red.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

&

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER IOR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, Within an
equilateral triangle, is intended to alert the user of the
presence of uninsulated "dangerous voltage within the
products enclosure; that may be of sufficient magnitude
to constitute a risk of electric shock to persons

The exclamation point Within an equilateral triangle is in»
tended to alert the user of the presence of important oper-
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.

9%

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
