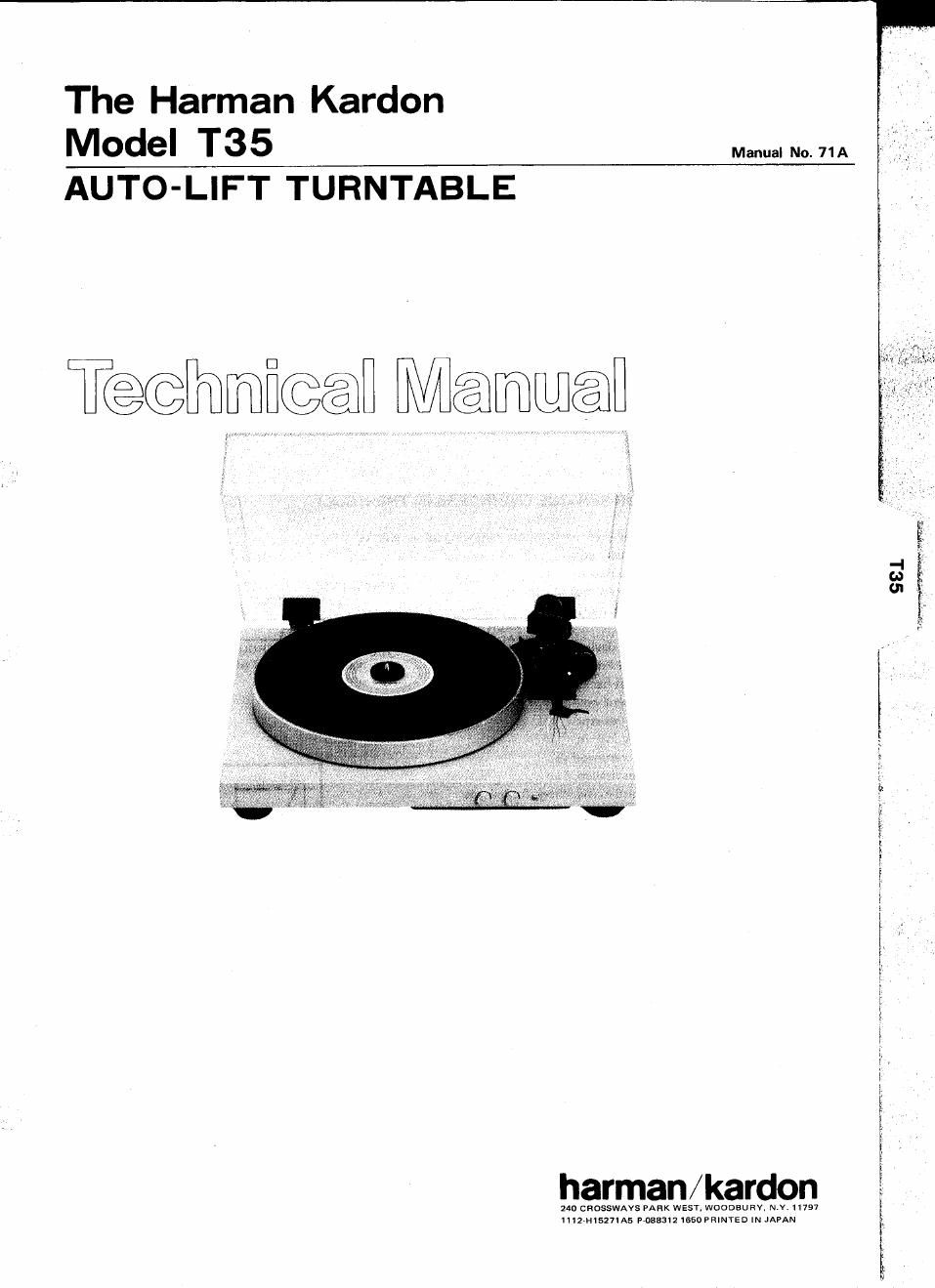

Harman kardon t 35 service manual

Page 2

IO
M
I-

SPECIFICATIONS

Wow & Flutter IWRMSI
Rumble (DIN-B WTD

Pitch Adjustable Range

0.04%

-68dB, DIN 45544
record reference

t 3%

Tonearm

Effective Tonearm Mass 89 (plus the mass of

the cartridge used)

Stylus Overhang 18mm
Offset Angle 255°
Effective Length 216mm
Tracking Error :2 degrees
Phono Capacitance 160pF
Tracking Force 0~3 grams

Acceptable Weight of Cartridge 3~8 9
Dimensions (W X H X D) 17-3/ " x 5-3/ x 14-13/16"
(440 x 145 x 375mm)
Weight 14 lbs. 702. (6.4kg)
Power Supply
U.S.A. and Canada models AC120V, 60Hz

AC110-120V/220-240V,
50/60Hz

General model

Power Consumption 8W

Specifications and components subject to change without notice.
Overall performance will he maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.l

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make cer-
tain that leads are not pinched or
that hardware is not lodged be-
tween the chassis and other metal
parts in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment cov-
ers or shields, isolation resistor-
capacity networks, mechanical in-
sulators, etc. which were removed
for servicing are properlv reinstalled.

3. Be sure that no shock hazard exists; check for leakage

current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT540A or use alternate method as follows:
Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15uF capac-
itor, in series with all exposed metal cabinet parts
and a known earth ground, such as a water pipe or
conduit. Use a VTVM or VOM with 1000 Ohms per
volt, or higher, sensitivity to measure the AC voltage
drop across the resistor. (See Diagram.) Move the
resistor connection to each exposed metal part having
a return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the
power switch in both the On and Off positions.)

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER OR BX CABLE,
CONDUIT, ETC.

HIGH
VOLTAGE
OR +LEAD

LEAD

é
VTVM
-0Ac SCALE 0-

1.5kSl
10W

'VV):

_I|_

0.15uF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
