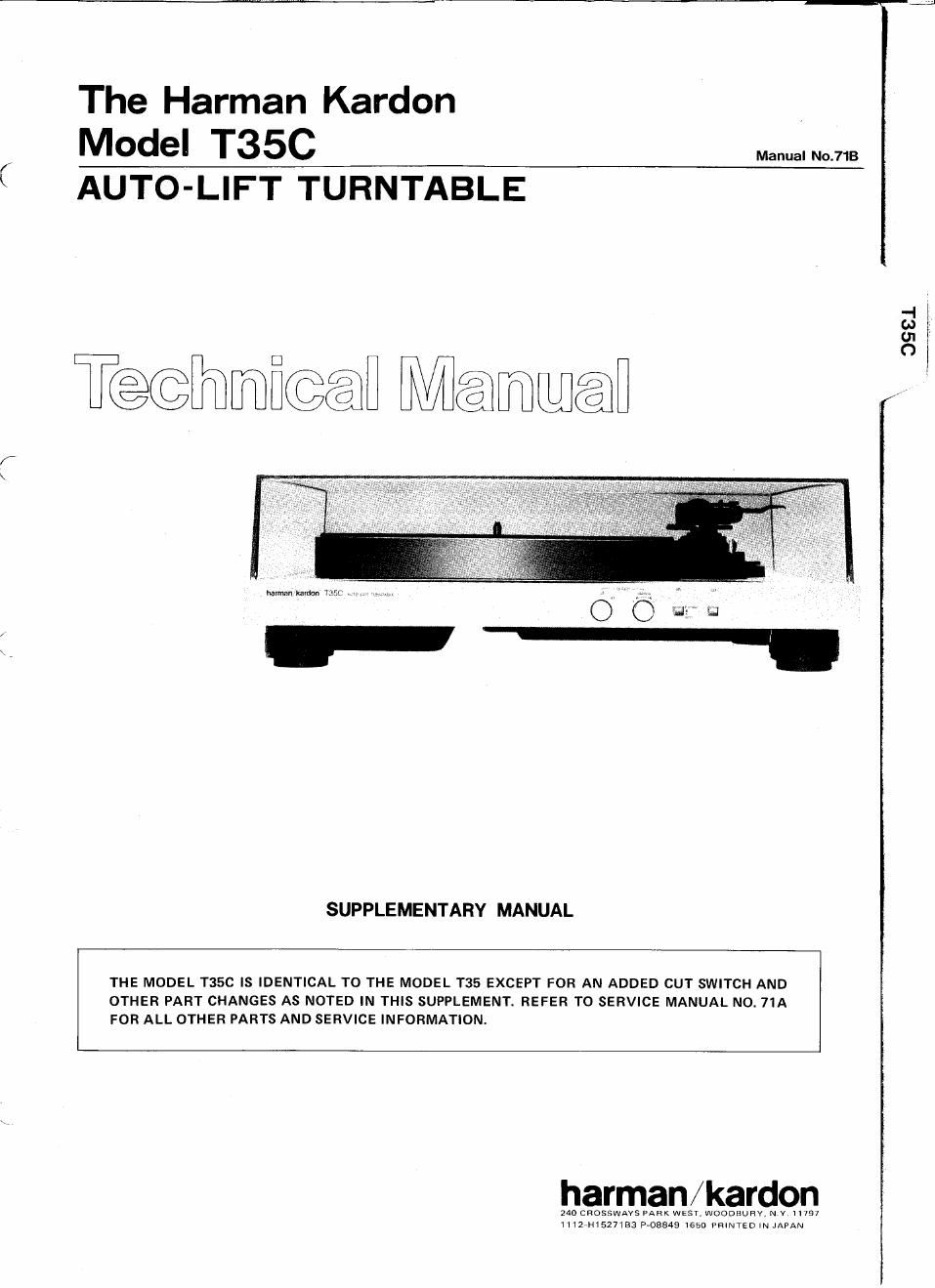

The Harman Kardon ,
MOdel T35C Manual No.71B
AUTO-LIFT TURNTABLE
T@@mfi@@fl Méamwénfl
SUPPLEMENTARY MANUAL
THE MODEL T356 IS IDENTICAL TO THE MODEL T35 EXCEPT FOR AN ADDED CUT SWITCH AND
OTHER PART CHANGES AS NOTED IN THIS SUPPLEMENT. REFER TO SERVICE MANUAL N0. 71A
FOR ALL OTHER PARTS AND SERVICE INFORMATION.
harman/kardon
240 cnosswmrs PARK WEST. WOODEURV, N v H797
11127H1527153 P703849 1650 PRINTED m JAPAN
398i
Page 2
T35C
GENERAL UNIT PARTS LIST
Ref. No. | Part No. | Description
1 A415-T35CA Cabinet Assembly (for U.S.A. & Canada models!
A415»T35CB Cabinet Assembly (for General model)
2 A443»T35C From Panel Assembly
23 914901-2 Foot
39 874045 Bracket
ELECTRICAL PARTS LIST
Ref. No. Part No. l Description
' caAssisMréCEL-LANEO 's - , _ _
P2 871474 Output Cord Assembly (for U.S.A. & Canada models)
SW1 915021-1 Micro-Switch. Rest
LUG2 914359-4 Lug Terminal with Lead Wire
0216, 217
sw204/205
5345-47625 Capacitor, 47%, :20%, 25v, Electrolytic
915370 Push Switch, Lift, out
/«
