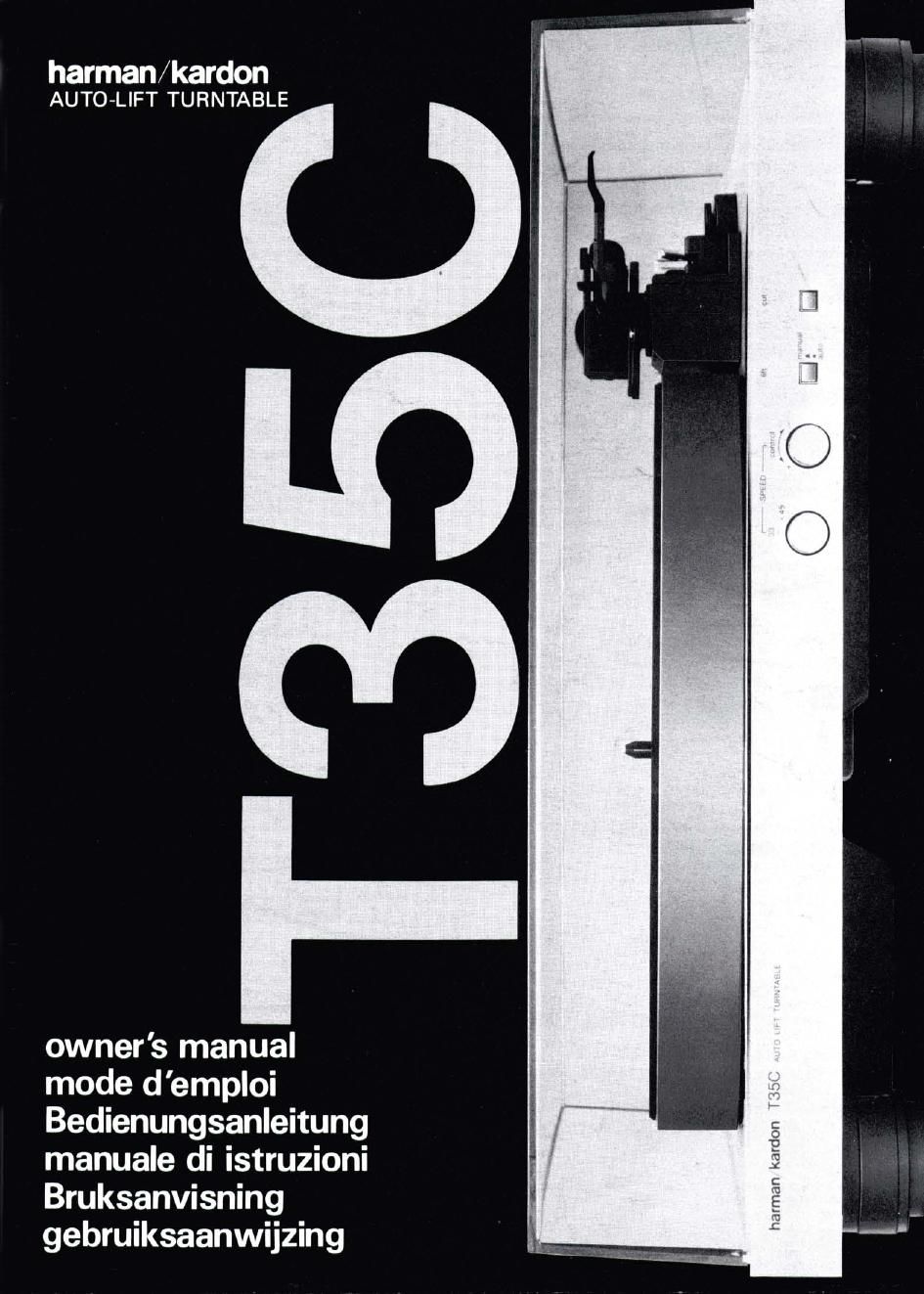

Harman kardon t 35 c owners manual

Page 2

SPECIFIC IONS .

Congratulations on your purchase of the
Harman Kardon T35C Auto-lift Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your turntable only In
accordance with its instructions. Keep it in a safe
place for future reference.

Wow & Flutter lWRMSl
Rumble lDlN~B WTDI

Pitch Adjustable Range

Tonearm
Ellective Tonearm Mass

Stylus Overhang
Ollsot Angle
Ellecttve Length
Tracking Error
Phono CapaCitancc
Tracking Force

Acceptable Weight ol
Cartridge

Dimensmns lW x H x Dl

Weight

Power Supply
General model

0 04%

-68dB, DIN 45544 record
relerence

: 3%

89 Iplus the mass of the
cartridge used)

l8mm

26 5"

216mm

: 2 degrees

160 pF

0~ 3 grams

3-89

178/8 X 5-3/4 xl4-13l16
l440>< l45>< 375 mm)

l4lbs.202, (6 4kg)

: AC 110-1201220~240V,

50/60Hz
Canada model : AC 120V, 60Hz
Power Consumption 8W
All \[llst ilii .IIllllI\ .IIrlI lmltiirrr» \UUKTI It) litlllQl: Without rintrtc

This apparatus has been produced to comply wrth directive No

76l889lEEC ICISPR 14)

FOR CUSTOMERS IN THE UK
Your Unll IS supplied with the llex which Will have either two or three
wrres, so the lollowrng items should be observed to guarantee safety

THREE CORE FLEX
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT. The wires in thrs mains lead are coloured in accordance
with the lollowrng code
Greenrandryellow Earth
Blue Neutral
Brown Live

As the colours ol the wires in the mains lead pl this apparatus may
not correspond With the coloured markings rdentilying the terminals
in your plug. proceed as Iollows

The wrre which rs coloured green-and-yellow must be connected to
the terminal in the plug which is marked by the letter E or by the sale»
ty earth symbol $ or coloured green or green-and-yellow

The wire which is coloured blue must be connected to the terminal
which is marked WITH the letter N or coloured black

The wrre which is coloured brown must be connected to the terminal
which is marked With the letter L or coloured red

TWO CORE FLEX
IMPORTANT. The Wires in this mains lead are coloured in accordance
With the Iollowmg code

Blue Neutral

Brown Live

As the colours ol the wires in the mains lead pl thrs apparatus may
not correspond With the coloured markings ldentilyrng the terminals
ln your plug, proceed as lollows

The wrre which rs coloured blue must be connected to the lerrnlnal
which IS marked with the letter N or coloured black

The wire which rs coloured brown must be connected to the terminal
which rs marked With the letter L or Coloured red

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

&

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER IOR BACK) NO USER-
SERVICEABLE PARTS INSIDE REFER SERVICING T0
QUALIFIED SERVICE PERSONNEL

The lightning Ilash With arrowhead symbol, Within an
eouilaieial tirangle, IS lnlended to alert the user at the
presence ol uninsulated "dangerous voltage" wllhln the
products enclosure, that may be ol suIIiCient magnitude
to constitute a irsk ol elecirrc shock to persons

The exclamation pornt Within an equilateral triangle is in

tended to alert the user ol the presence 01 important oper-

ating and maintenance lservicingl lnSlTUCIIOnS in the

literature accompanying the appliance
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
