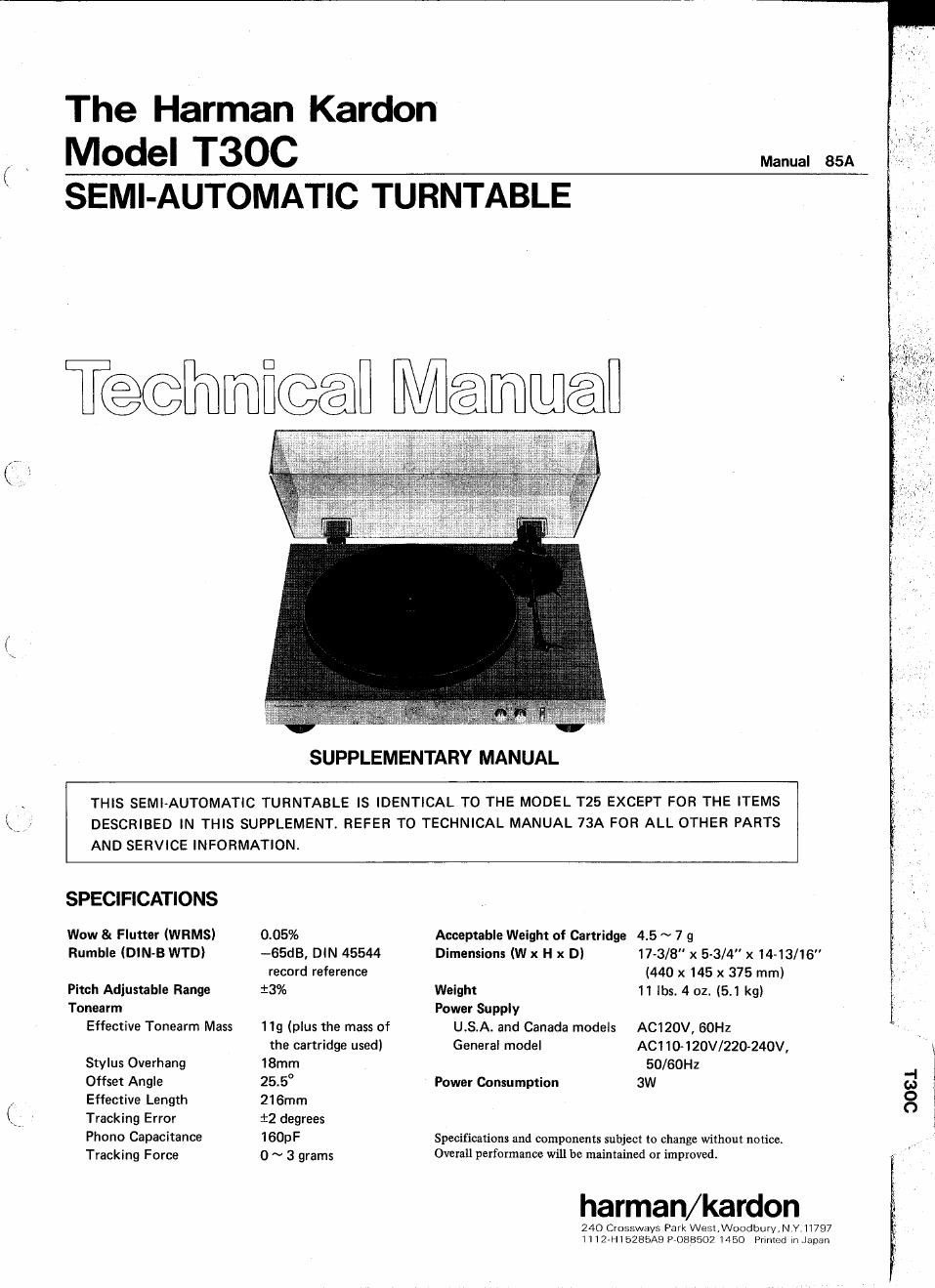

The Harman Kardon'
Model T3OC
Manual 85A
SEMI-AUTOMATIC TURNTABLE
ecemicea Mame]
SUPPLEMENTARY MANUAL
THIS SEMI-AUTOMATIC TURNTABLE IS IDENTICAL TO THE MODEL T25 EXCEPT FOR THE ITEMS
DESCRIBED IN THIS SUPPLEMENT. REFER TO TECHNICAL MANUAL 73A FOR ALL OTHER PARTS
AND SERVICE INFORMATION.
SPECIFICATIONS
Wow & Flutter (WRMSI
Rumble (DIN-B WTD)
Pitch Adjustable Range
Tonearm
Effective Tonearm Mass
Stylus Overhang
Offset Angle
Effective Length
Tracking Error
Phono Capacitance
Tracking Force
0.05%
~65dB, DIN 45544
record reference
:3%
Mg (plus the mass of
the cartridge used)
18mm
255"
216mm
:2 degrees
160pF
0 ~ 3 grams
Acceptable Weight of Cartridge 4.5 ~ 7 9
Dimensions (W x H x D)
Weight
Power Supply
U.S.A. and Canada models
General model
Power Consumption
17-3/ x 5-3/ " x14-13/16
(440 x145 x 375 mm)
11 lbs. 4 oz. (5.1 kg)
ACIZOV, BOHI
ACI10420V/220-240V,
50/60Hz
3W
Specifications and components subject to change without notice.
Overall performance will be maintained or improved.
harman/kardon
240 Crossways Park WesI,Woodbury,N/ 11797
1112-H15285A9 P088502 1450 Primed in Japan
0081.
Page 2
GENERAL UNIT EXPLODED VIEW
General Model
