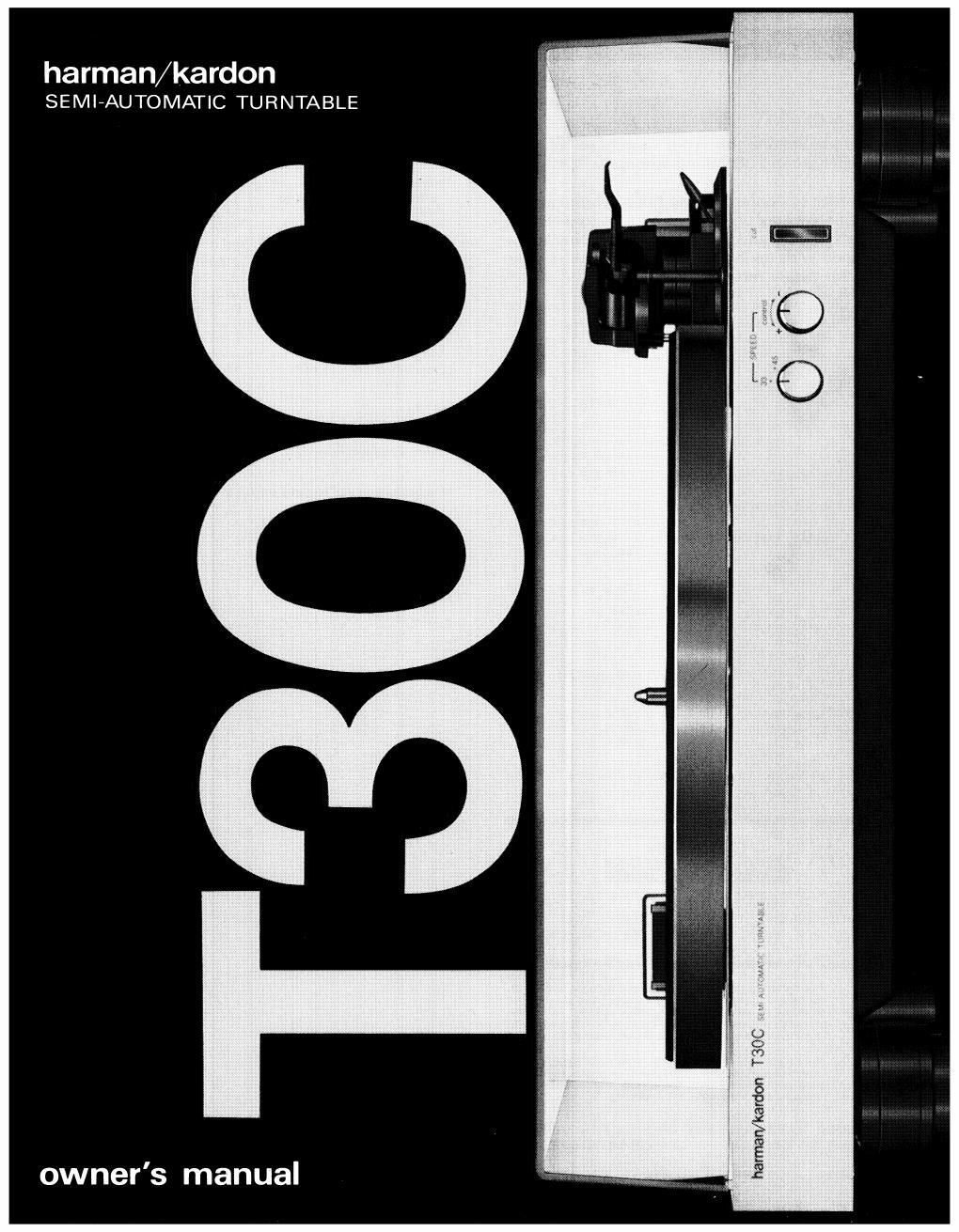

Page 1

harman/kardon
SEMI-AUTOMATIC TURNTABLE

m'man/karécm *

owners manual

Page 2

SPECIFICATIONS

Congratulations on your purchase of the
Harman Kardon T30C Semi-automatic Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your turntable only in ac-
cordance with its instructions. Keep it in a safe
place for future reference.

CAUTION
RISK or ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is in
tended to alert the user to the presence of important oper-
ating and maintenance lserviclngl instructions in the
literature accompanying the appliance.

ee

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Wow & Flutter (WRMS)
Rumble (DIN-B WTD)

Pitch Adjustable Range

Tonearm
Effective Tonearm Mass

Stylus Overhang
Offset Angle
Effective Length
Tracking Error
Phono Capacitance
Tracking Force

Acceptable Weight of
Cartridge

Dimensions (W X H X D)

Weight
Power Supply

Power Consumption

: 0.05%
: -65dB, DIN 45544

record reference

:i3%

: 119 (plus the mass of the

cartridge used)

: 18mm

: 256°

: 216mm

: :2 degrees
: 160pF

: O~8 grams

:4.5~7g

: 1773/8" >< 58/4 X 14-13/16

(440x145x375 mm)

: lllbs. 4oz. (5.1kg)
: AC 120V, GOHZ
: 3W

All specifications and features subject to change without notice.
