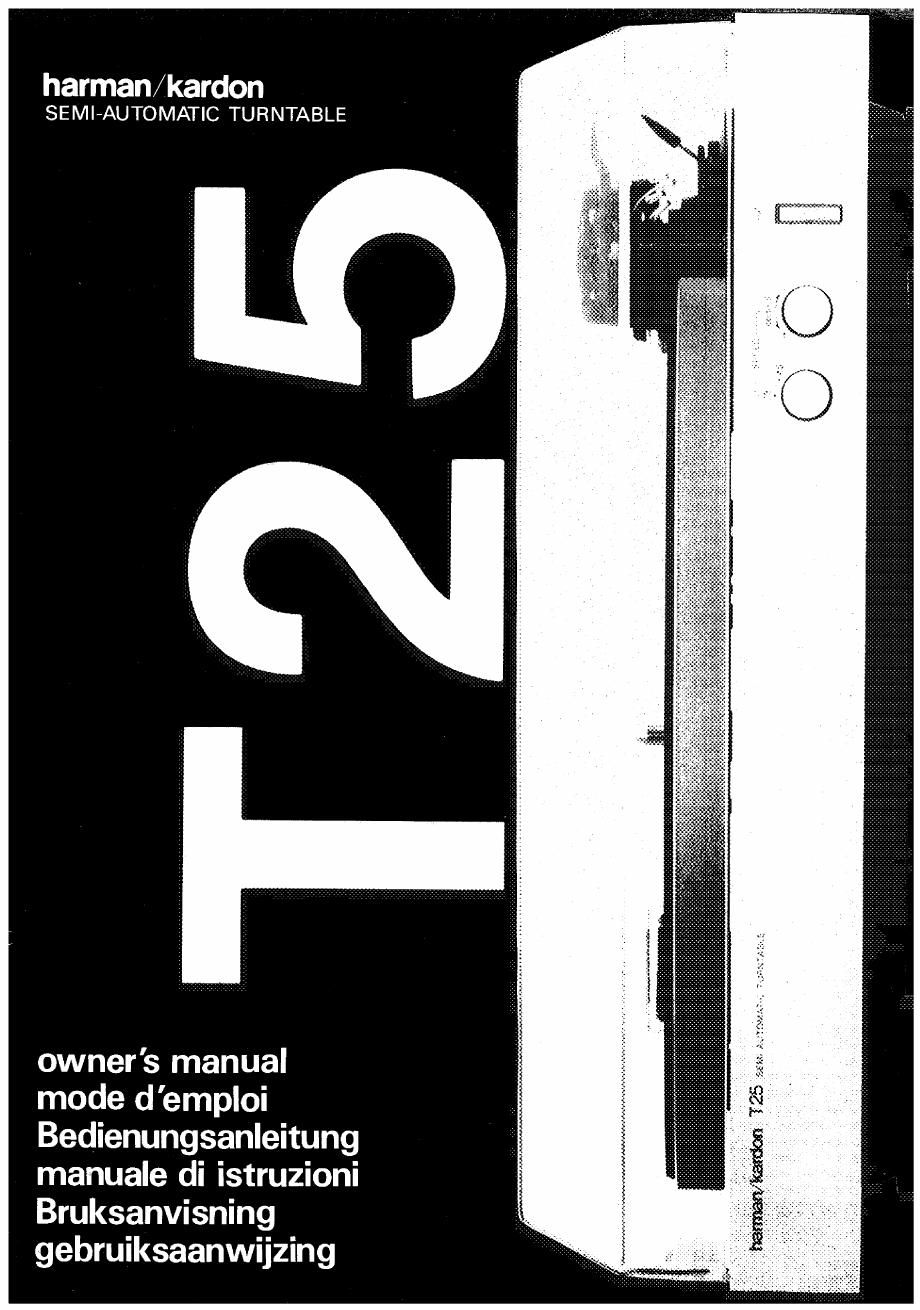

Harman kardon t 25 owners manual

Page 2

PECIFIC TIONS

Congratulations on your purchase of the
Harman Kardon T25 Semi-automatic Turntable.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owner's manual and use your turntable only in
accordance with its instructions. Keep it in safe

place for future reference.

Wow & Flutter (WRMSI
Rumble (DIN-B WTDI

Pitch Adjustable Range

Ton earm
Effective Tonearm Mass

, 0.05%
. -65dB, DIN 45544

record reference

_ i3%

. llg (plus the mass of the

cartridge usedl

Styles Overhang l8mm
Offset Angle 255°
Etiective Length ' 216mm
Tracking Error . :2 degrees
Phono Capacitance . TSOpF
Tracking Force . 0-3 grams
Acceptable Weight of : 4.5-~7g

Cartridge
Dimensions (WX H X D)

Weight

Power Supply
General model
Canada model

Power Consumption

: lBl/A"X5~5/l6">

(386 x134 X 360 mm)

: 1i|bs.lloz. (5.3kgl

: ACT lO-l 20/220-240V,

50/60Hz

,AC'I2OV, SOHZ
: 3W

This apparatus has been produced to comply with directive No.

76/889IEEC lCISPR l4l,

FOR CUSTOMERS IN THE UK

Your unit is supplied with the flex which will have either two or three
Wires. so the following items should be observed to guarantee salety:

THREE CORE FLEX
WARNING: THIS APPARATUS MUST BE EARTHED.
IMPORTANT. The Wires in this mains lead are coloured in accordance
With the following code:

Green-and-yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plugproceed as follows:

The wire which is coloured green-andyellow must be connected to
the terminal in the plug which is marked by the letter E or by the sale-
ty earth symbol 'a' or coloured green or greeneand-yellow.

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black,

The Wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

TWO CORE FLEX
IMPORTANT. The wrres in this mains lead are coloured in accordance
with the following code:

Blue . Neutral

Brown Live

As the colours of the wares in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug, proceed as Iollows:

The wire which is coloured blue must be connected to the terminal
which is marked With the letter N or coloured black

The wire which is coloured brown must be connected to the terminal
which IS marked With the letter L or coloured red.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

ii

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACKI. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning Ilash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user of the
presence of uninsulated dangerous voltage" Within the
products enclosure; that may be oi sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is in-
tended to alert the user of the presence of important oper-
ating and maintenance tservicingl instructions in the
literature accompanying the appliance.

ee

WARNING: TO PREVENT FIRE OR SHOCK HAZARD] DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
