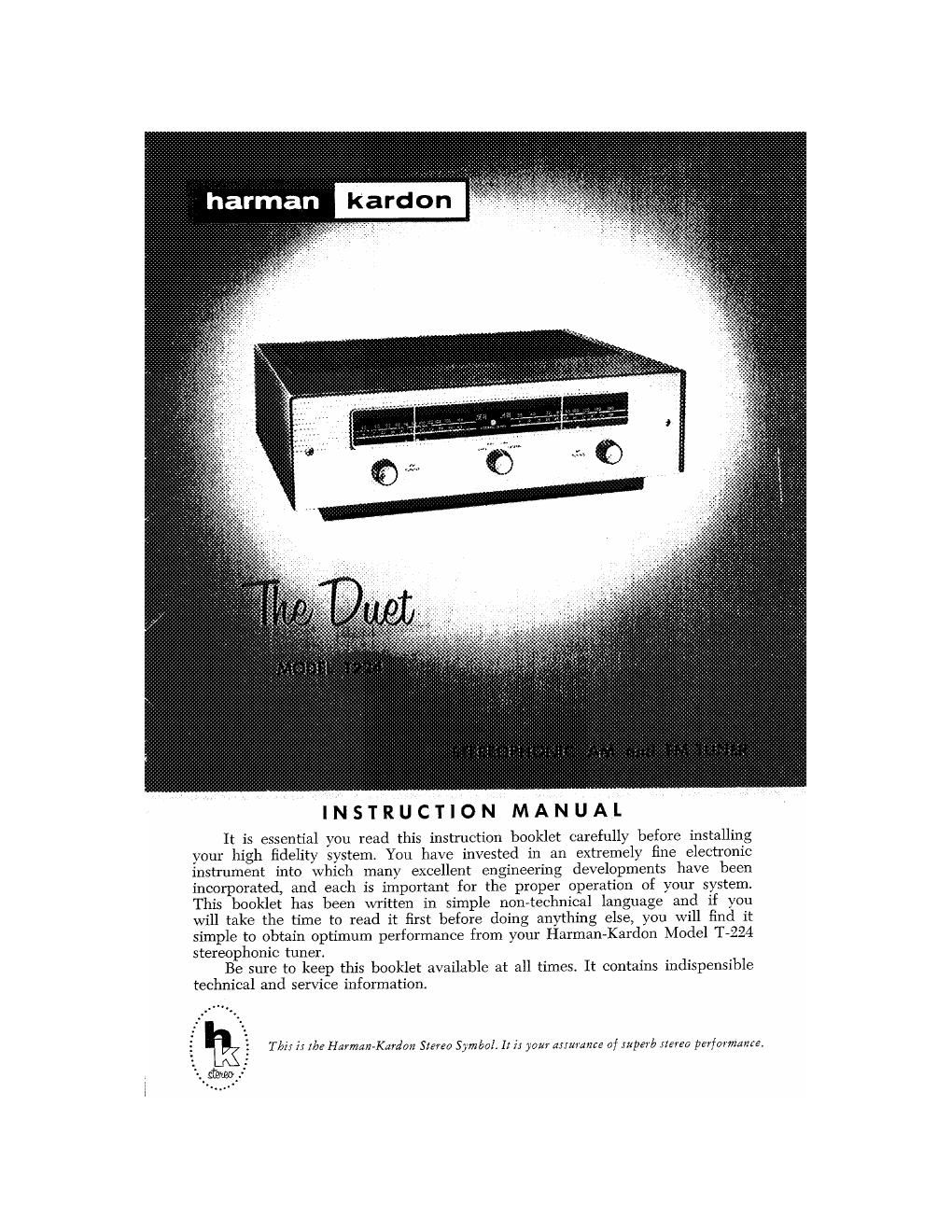

INSTRUCTION MANUAL
It is essential you read this instruction booklet carefully before installing
your high fidelity system. You have invested in an extremely fine electronic
instrument into which many excellent engineering developments have been
incorporated, and each is important for the proper operation of your system.
This booklet has been written in simple non»technical language and if you
will take the time to read it first before doing anything else, you will find it
simple to obtain optimum performance from your Harman-Kardon Model T-224
stereophonic tuner.
Be sure to keep this booklet available at all times. It contains indispensible
technical and service information.

Tbi: i: 2192 HarmaanMdon Stereo S ymbal. 121'; your mum-awe of :kperb xterm performance.

Page 2

GENERAL DESCRIPTION

The T-224 stereophonic tuner is extremely versatile and may be used in
any of the following ways:
l.-Standard monaural AM reception.
2i-Standard monaural FM reception,
3.-Stereophonic AM and FM reception.
45FM multiplex stereophonic reception.

UNPACKING

After unpacking the Duet, inspect it carefully for signs of transit damage.
The unit was subjected to many inspections and tests at the factory prior to final
packing, and it therefore should be in perfect condition. If damage is visible,
notify your dealer at once. If the unit was shipped to you, notify the transporta-
tion company without delay.

MAINTENANCE AND REPAIR

Due to the conservative design and high quality components of this instru-
ment, no routine maintenance other than yearly tube-checking is required.
Should trouble develop,however, only the most qualified service technician should
be employed, as special equipment and training is required to properly service
a high fidelity unit. This manual contains information of great value to the re-
pairman, and should be kept available.

Factory Warranty Stations are maintained in most major cities. For the
address of the nearest one, or for any other information relating to your Harman-
Kardon products, write to the attention of the Customer Service Department,
Harman-Kardon, Inc., 520 Main Street, VVestbury, N. Y. Be sure to include
the model and serial number of the set in question. A short description of your
complete installation is often of help in answering your questions.

WARRANTY POLICY

NOTE: It is necessary to receive factory authorization before returning a
set for warranty repair either to the factory or to an authorized station. Repairs
are to be returned on an Express Prepaid basis. A letter describing the exact
difficulty must be enclosed with the unit.

We warrant this instrument to be free from defects in material and work-
manship under normal use and service, and in accordance with the conditions
herein below set forth, for a period of one year from date of delivery to the
original purchaser, and agree to replace or repair any part or parts, with the
exception of tubes which are covered by manufacturers 90 day warranty, re-
turned to us within said one year with transportation prepaid, and which our
examination shall disclose to our satisfaction to have been thus defective. This
warranty does not include free labor, nor is it applicable to any instrument which
shall have been repaired or altered in any way so as in our judgment to affect its
stability or reliability nor which has been subject to misuse, neglect, abuse,
negligence or accident, nor which has had the serial number altered, effaced or
removed. Neither shall this warranty apply to any instrument which has been
connected otherwise than in accordance with the instructions furnished by us.

This warranty is expressly in lieu of all other warranties, express or implied,
and of all other obligations or liabilities on our part, and we neither assume nor

authorize any representative or other person to assume for us any other liability
in connection with the sale of this instrument,
