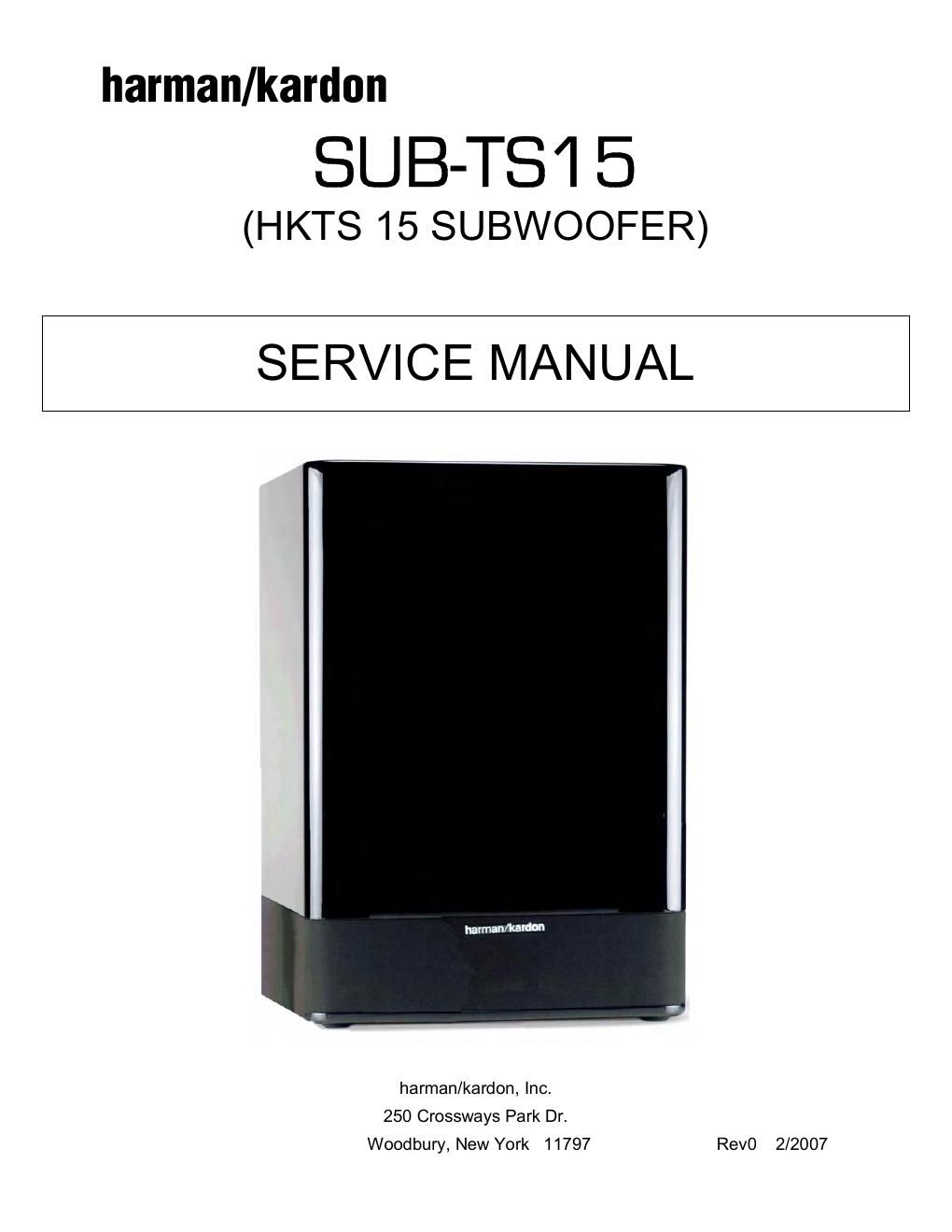

Harman kardon sub ts15 actsub
This is the 31 pages manual for harman kardon sub ts15 actsub.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon sub ts15 actsub (Ocr-read)
Page 1
CONTENTS BASIC SPECIFICATIONS . . . . . . . . . . . . ……………………………………. . . . 1 DETAILED SPECIFICATIONS. . . . . . . . . . . . . .. . . . . . . . . ………………….. …2 PACKAGING. . . . . . . . . . . . . .. . . . . . . ……………………… . . . . .. . .. .. .. . . . . 4 CONTROLS & CONNECTIONS . . . . . . . . . . . . . .. . . . . . . . . ………………….. 5 SPEAKER CONNECTIONS……………………….………..……. . . .. . .. . . . .. . . 7 OPERATION……. . . . . .. . . . . . . . .. .. . . . .. .. . . . . ………………………………10 TEST PROCEDURE. . . . . . . . . . . ………………………………………………….11 UNIT EXPLODED VIEW. . . . …………… ……………. .. ………... . . .. .. ... . … . 12 AMPLIFIER EXPLODED VI EW . . . . ………………... . .. ………... . . .. . . .. . .… . 13 BLOCK DIAGRAM . . . . . . . . . . . . . .. . . . . . . ……………… . . . . .. . .. . .. . . . . 14 DETAILED TROUBLESHOOTING..…………………………………………………16 PCB DRAWINGS. .. . . . . . . . . . . . . . .. . . . . ……… . …………. . . . .. .. .. . .. . . . 17 ELECTRICAL PARTS LIST …………. .. .. . .. . . . …………………………... … . . 23 SEMICONDUCTOR PINOUTS . . . .. .. .. .. . . . .. . ……………..………..………. .27 SCHEMATIC DIAGRAMS . . . . . . . . .. .. .. .. . . . .. . ………………………..……. .28 SPECIFICATIONS Amplifier Power (RMS) 100 Watts Driver 10" (254mm) woofer, Bass Reflex Enclosure Inputs Stereo Line Level, dedicated Subwoofer (LFE) and Speaker Level with gold-plated binding posts Outputs Speaker Level with gold-plated binding posts Frequency Response 35Hz – 120Hz (Filter switch ON) 35Hz – 450Hz (Filter switch OFF) External Trigger Input Voltage: 3-30 Volts AC/DC Dimensions (H x W x D) 18-7/8" x 13-3/8" x 13-3/8" (479mm x 340mm x 340mm) Weight 35.11 lb/15.8kg Occasional refinements may be made to exis ting products without notice but will always meet or exceed original specifications unless otherwise stated. SUB-TS15 harman/kardon 1
Page 2
SUB-TS 15 100W Powered Sub/ Plate Amp LINE VOLTAGE Yes/No Hi/Lo Line Nom. Unit NotesUS 120vac/60Hz Yes 108-132 120 Vrms Normal Operation Parameter Nonimal Specification UnitQA Test Limits Conditions Notes Amp Section Type (Class AB, D, other) AB n/a n/a Load Impedance (speaker) 4 Ohms n/a Nominal Rated Output Power 100 Watts 75 50 - 250 Hz, 1 input driven, limiter off THD @ Rated Power 0.08 % 0.1 22k filter THD @ 1 Watt 0.15 % 0.5 22k filter DC Offset 5 mV-DC 30 @ Speaker Outputs Damping factor >100 n/a 30 Measured at amplifier board Measured at the speaker at speaker output terminals on the amp board. Input Sensitivity Input Frequency 50 Hz n/a Nominal Freq. Line (L&R) Input 220 mVrms 154 - 308 To Rated Power Single input driven SUB (LFE) Input 125 mVrms 87 - 175 To Rated Power SUB (LFE) input driven only Speaker/Hi Level Input 2.2 Vrms 1.5 - 3.0 To Rated Power (20 dB below Line In), Single input driven Hi Level Max. Input Voltage 32 Vrms30 Nominal Freq., Min. Volume Signal to Noise SNR-A-Weighted 100 dB 85 relative to rated power A-Weighting filter SNR-unweighted 90 dB 80 relative to rated power 22k filter SNR rel. 1W-unweighted 65 dB 60 relative to 1W Output 22k filter Residual Noise Floor 1.2 mVrms 3.0Volume @max, using RMS reading DMM/VOM (or A/P) Residual Noise Floor 0.8 mVrms 2.0Volume @max, w/ A/P Swept Bandpass Measurement (Line freq.+ harmonics) Input Impedance Line Input (L, R,LFE) 10K ohms n/a Nominal Speaker/Hi Level Input 4.7K ohms n/a Nominal Filters L&R Fixed Low-Pass Filter 170 Hz 150 - 200 @ -6dB ref. 100Hz 2nd order fixed SUB (LFE) Low pass Filter 270 Hz 240 - 300 @ -3dB ref. 100Hz 2nd order fixed Subsonic filter (HPF) 3rd Order 28 Hz 22 - 28 @ -3dB ref. 30Hz 3rd order fixed Limiter THD at Max. Output Power 2.0 % 5.0 Features Auto - On -Off Selection Switch YES functional Refer to ATO section Phase Switch 0-180 deg functional Filter On/Off Switch YES functional Volume Pot Taper (Lin/Log) LOG functional A Taper Speaker Out YES functional Binding post connector L&R 2-Color LED power indicator YES functional Blue: On, Amber: Stand-by Power Switch YES functional Fuse Holder YES functional Input Configuration Line In (L,R) YES functional Dual RCA jack SUB (LFE) YESfunctional RCA jack Speaker/Hi Level In YES functional Binding post connector L&R Signal Sensing (ATO) Auto-Turn-On (yes/no) YES functional Auto - on selection switch in Auto ATO Input test frequency 50 Hz n/a Auto - on selection switch in Auto ATO Level Line & SUB Input 4.0 mV 2.0 - 6.0 Auto - on selection switch in Auto ATO Level Speaker in 40 mV 25 - 55 Auto - on selection switch in Auto ATO Turn-on time 5 ms functional Amp connected and AC on, then input signal applied ATO Turn-OFF Time 15 minutes 10 - 20Time before muting, after signal is removed Power on Delay time 3 sec.functional AC Power Applied Transients/Pops ATO Transient 5 mV-peak 10 @ Speaker Outputs Turn-on Transient 50 mV-peak 100 @ Speaker Outputs AC Line cycled from OFF to ON SUB-TS15 harman/kardon 2
