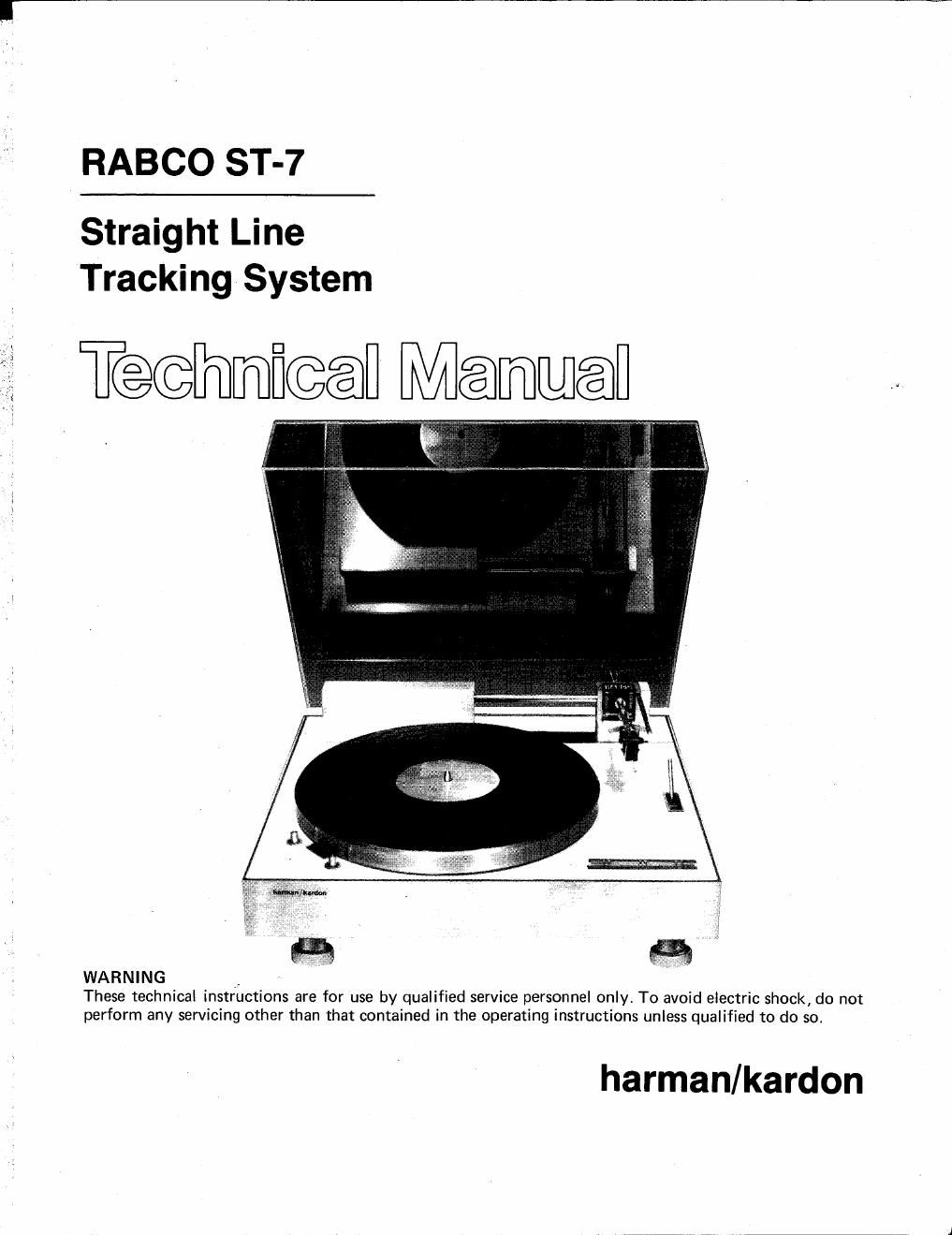

Page 1
RABCO ST-7
Straight Line
Tracking System
Teflmm 3 WW
These technical instructions are for use by qualified service personnel only. To avoid electric shock, do not
perform any servicing other than that contained in the operating instructions unless qualified to do so.
WARNING
harman/kardon
Page 2
CONTENTS
Mechanical Concept
PC Board Assembly
Troubleshooting
Disassembly
Adjustments
Parts List
Figure 1. General View of ST-7 turntable
l 7 Counter Welght
Carriage Assembly
Comrol Arm
-Gram Weight
-Tone Arm
Restrictor
Platter
: -Cue Lever
Slroboseope
Window
/ Touch Control Bar
45 RPM
Speed
Adjustments
33v: RPM / 45 RPM Slop 331/: RPM
Warning: To prevent fire or shock hazard, do not expose this turntable to rain or moisture.
