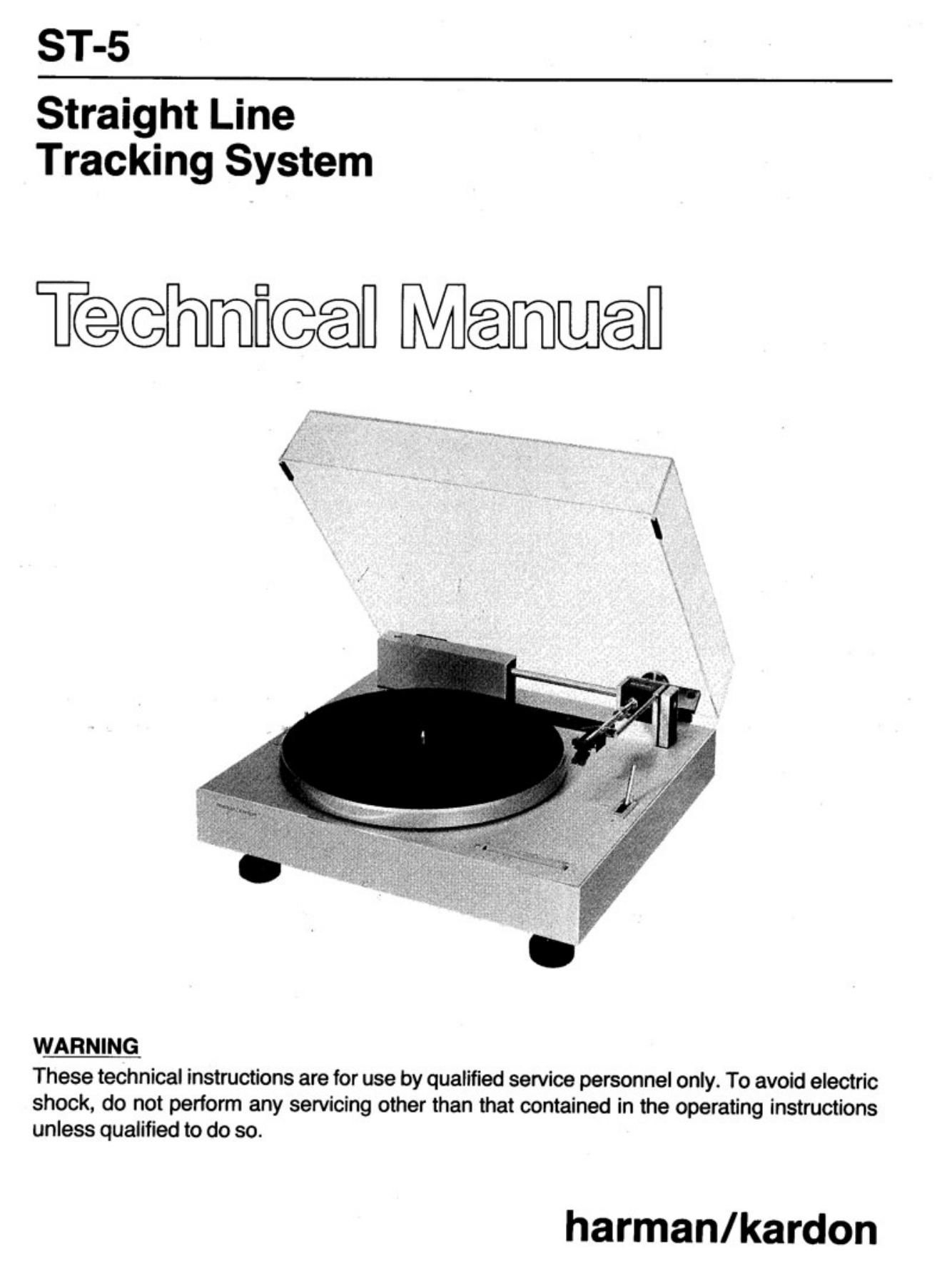

Page 1
ST-5
Straight Line
Tracking System
Technical Manuafl
WARNING
These technical instructions are for use by qualified service personnel only. To avoid electric
shock, do not perform any servicing other than that contained in the operating instructions
unless qualified to do so.
harman/kardon
Page 2
SPECIFICATIONS:
Tracking Error:
Skating Force:
Tone Arm Mass (eflectlve):
Styme Overhang:
Rumble DIN 8:
Wow and Flume:
NAB Weighted:
DIN 3:
Hum (Tone Arm In)
DIN 45544:
Speeds:
0th Drive:
Platter Weight:
Dimensions (incl. dust cover):
Weight Total:
00
6 grams
0
- 57dB.
0.045%
O. 1 2%
- 70dB.
33-1/3. 45 RPM
Synchronous AC with
precision ground belt
2.4 lbs/1.1 Kg
6-3/4"H >< 16-1/2"W x 161/4"D
171 mm. H x 419mm. w x 413mm. 0
20 lbs./9.1 Kg.
