Harman kardon sb 15 230 service manual
This is the 30 pages manual for harman kardon sb 15 230 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon sb 15 230 service manual (Ocr-read)

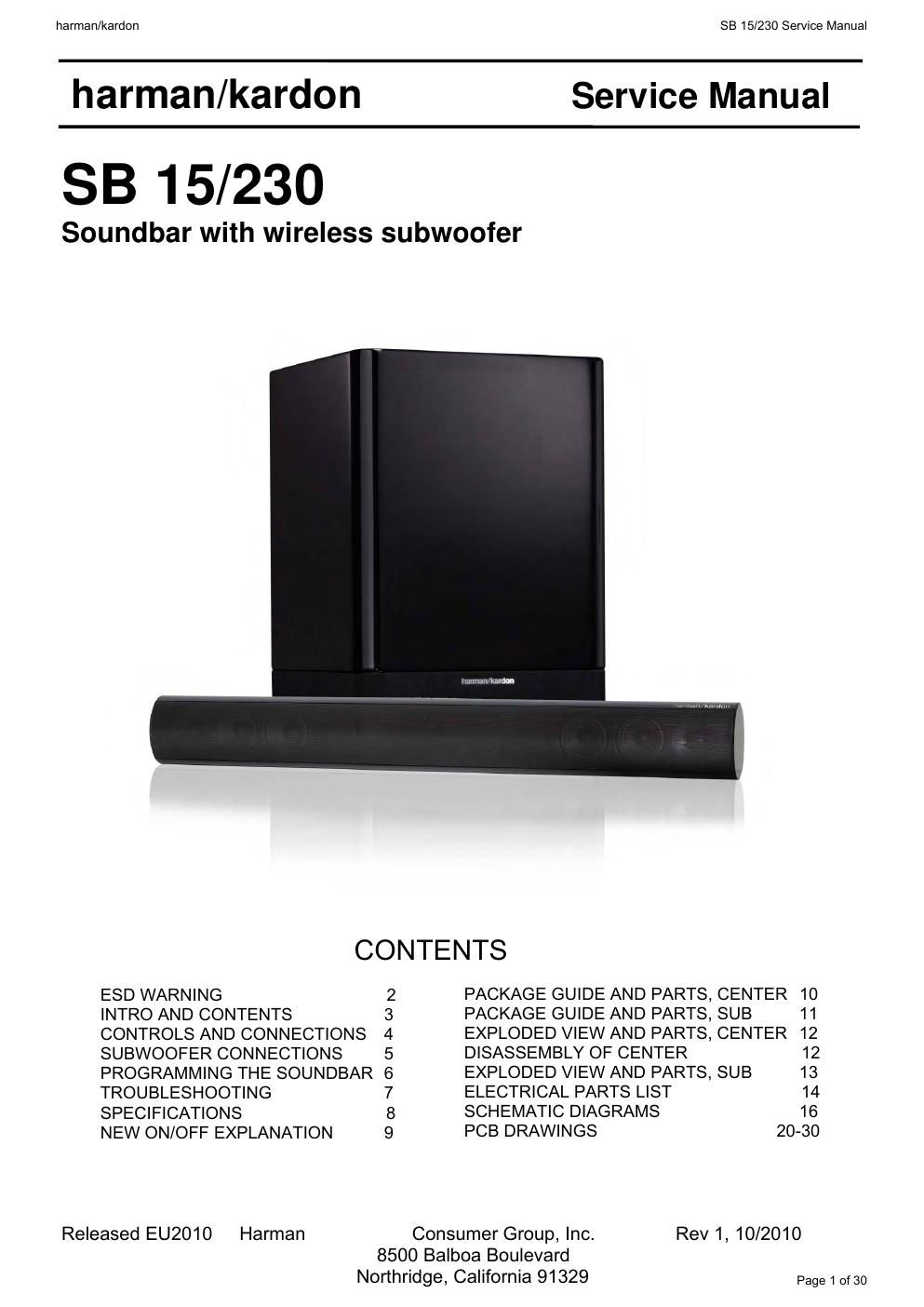

Page 1
Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably insulated from the supply circuit before retuming the product to the customer. Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build-up or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.) 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices. CAUTION : 004B004400550050004400510012004E00440055004700520051 00360025000300140018001200150016001300030036004800550059004C00460048000300300044005100580044004F 00330044004A004800030015000300520049000300160013
Page 2
22 3 ENGLISH Harman Kardon® SB 15/230Included Introduction Thank you for purchasing the Harman Kardon® SB 15/230 speaker system, with which youre about to begin many years of listening enjoyment . The SB 15/230 has been custom-designed to provide the excitement and power of the cinema experience in your own living room . While sophisticated electronics and state-of-the-art speaker components are hard at work within the SB 15/230, hookup and operation are simple . To obtain maximum enjoyment from your new soundbar speaker system, we urge you to take a few minutes to read through this manual . This will help ensure that the connections you make are correct . In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power and refinement the SB 15/230 is able to deliver . If you have any questions about this product, its installation or its operation, please contact your dealer, the best local source of information . Description and Features The SB 15/230 is a complete home theater speaker system that includes: A video-shielded stereo soundbar speaker (the SB 15CNTR) with two-way dual- - driver left and right speakers and built-in 25-watt x 2 stereo amplifier A 10-inch (250mm), 100-watt wireless powered subwoofer (the SB15SUB) - Wall-mount brackets for the soundbar - A 6 .5-foot (2m) stereo audio cable for connecting the system directly to your TVs - audio output . The SB 15CNTR soundbar contains the systems left and right speakers and stereo amplifiers, and features digital signal processing with virtual 3D surround circuitry that creates a complete surround-sound experience without any extra speakers or wires . You can set the soundbar on a table in front of your TV, and the system includes hardware that makes it easy to mount the soundbar on the wall along with your flat-panel TV . You can program the soundbar to respond to your TV remotes volume, power and source commands . The SB15SUB subwoofer receives its signal from the SB 15CTR soundbar via wireless technology, so you can place it anywhere in your room without having to run any wires . Its 10-inch (250mm) woofer and built-in 100-watt amplifier deliver a movies impact and excitement . Other conveniences include a volume control, a phase switch for fine-tuning bass response to suit your listening environment, and an efficient switching system that senses the presence of an audio signal and automatically switches the subwoofer on . Harman Kardon invented the high-fidelity receiver more than 50 years ago . With state-of-the-art features and time-honored circuit designs, the SB 15/230 will turn your flat-screen TV into a fun and exciting home theater .One SB 15CNTR soundbar speaker One SB 15SUB 10-inch (250mm) 100-watt wireless subwoofer Two wall-mount brackets for the SB 15CNTR soundbar One 24V DC power supply and AC power cord for the SB 15CNTR speaker One 6 .5-foot (2m) stereo audio cable Important If anything is missing, or if any part of your SB 15/230 system fails to operate properly, contact your dealer immediately . 004B004400550050004400510012004E00440055004700520051 00360025000300140018001200150016001300030036004800550059004C00460048000300300044005100580044004F 00330044004A004800030016000300520049000300160013
