Page 1

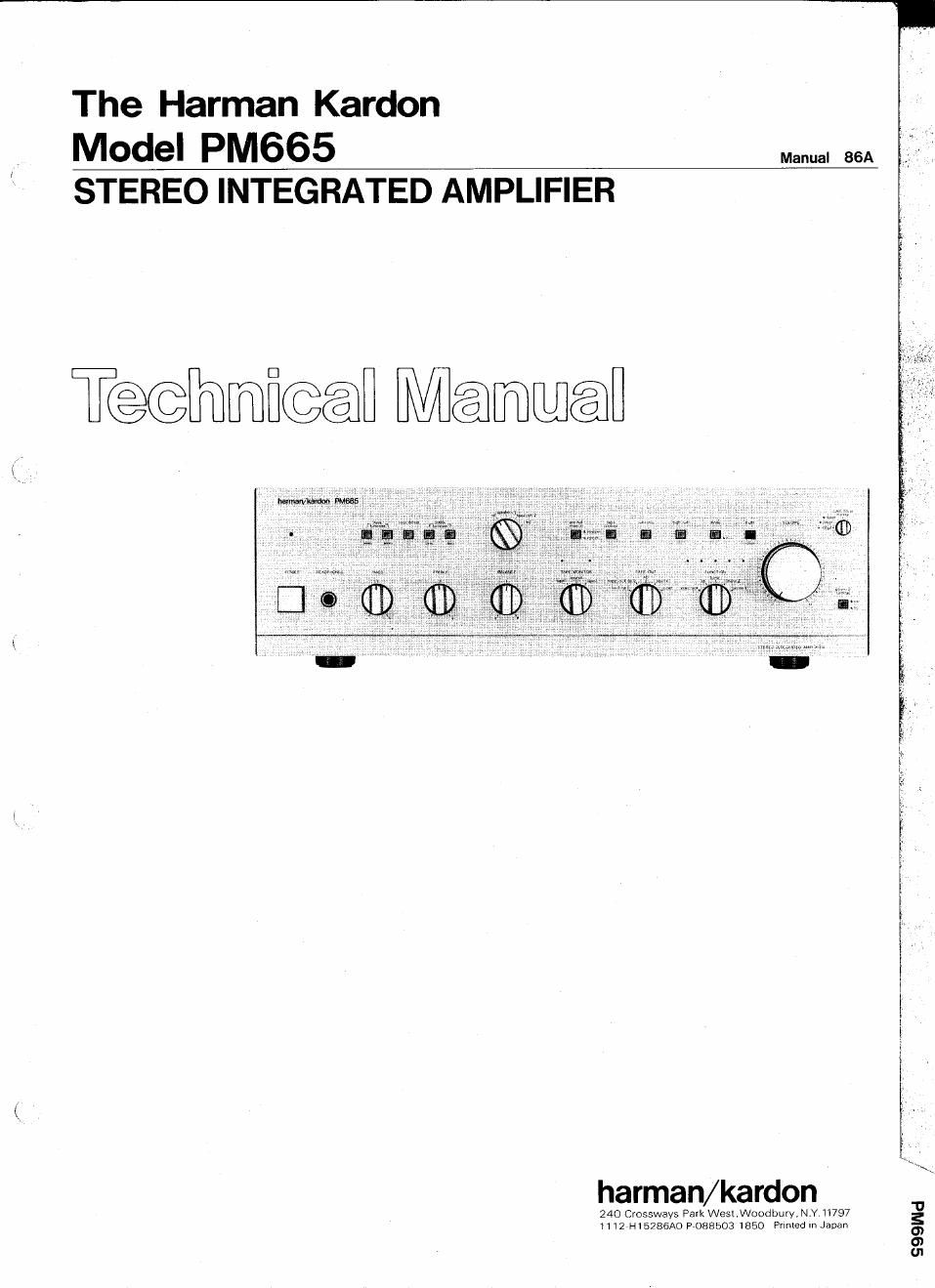

The Harman Kardon
MOdel PM665 Manual 86A
STEREO INTEGRATED AMPLIFIER

T@@mfi@@fl Mammfl

harma n/kardon
240 Crossways Park WesI,Woodbury,N.Y.11797
1112 Hl5 , 850 1 Pnnted m Japan

999m ,-

Page 2

-]
SPECIFICATIONS
Nominal Limit Nominal Limit
RMS Output Power Filters
89, 20H: ~ 20kHz, THD 0.08% 110W 2 100W Subsonic 15Hz, 6dB/Octave
49, 1kHz, THD 1.0% 187WZ 180W High Cut 6kHz, 6dB/Octave
High Instantaneous Current Bass Contour _/
Capability (HCC) 74A 2 60A Boost at 50Hz +10dB (
Hart Power Bandwith IOHz ~ 100kHz DC Output Voltage -
Frequency Response at -3dB 0.18Hz ~ 177kHz L channel 0mV 4; 60mV
Input Sensitivity R channel 0mV : 60mV

Video/CD 135mV i 25mV RIAA Equalization at Tape Out
Phono (MM) 2.2mV t 0.2mV" (20Hz/20kHz) (No load) 0.1dB i 0.5dB/0.1dB 10.5dB
Phono (MC) 120pV i 20pV* Phono Overload (No load)

Signal to Noise Ratio Phono (MM) 198mV Z 180mV
Video/CD 78.4dB Z 76dB Phono (MC) 10.9mV Z amv
Phono (MM) 77.5dB Z 75dB Dimensions (W x H x D) 17-1/ "x5-5/16"x15-11/16"
Phono (MC) 76dB Z 74dB (443 x 134 x 398 mm)

Channel Separation at 10kHz Weight 29 lbs. 12 oz. (13.5 kg)
Video/CD 53.7dB > 45dB Power Supplies
Phono (MM) 56dB E 45dB U.S.A. and Canada models AC 120V, 60Hz
Phono (MC) 51dB Z 44dB General and German models AC 220/240V, 50/60Hz

- lM Distortion Ratio 0.06% 30.1% Power Consumption
4 Damping Factor at 1kHz 88 _>_ 60 U.S.A. and Canada models 550W (600VA)

Tone Control Characteristics General and German models 485W
Bass Turnover Frequency(200Hz/400Hz)
Bass at 50Hz/100Hz
Boost 10dB 1' 2dB
Cut -10dB i 2dB
Treble Turnover Frequencvi2kHz/6kHz)
Treble at 10kHz/30kHz
Boost
Cut

*Input Sensitivity for German model are 2.4mv i- 0.2mV (MM)
and 145uV i 20pV (MC).

This specification is the target of servicing. But, there is a case
that the specification is not applicable to the measurement
condition and instmrnent.

IDdB i 2dB
-10dB i' 24:13

Specifications and components subject to change without notice.
Overall performance will he maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make cer-
tain that leads are not pinched or
that hardware is not lodged be-

l tween the chassis and other metal
parts in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment cov-
ers or shields, isolation resistor-
capacity networks, mechanical in-
sulators, etc. which were removed
for servicing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage

current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT540A or use alternate method as follows:
Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15pF capac-
itor, in series with all exposed metal cabinet parts
and a known earth ground, such as a water pipe or
conduit. Use a VTVM or VOM with 1000 Ohms per
volt, or higher, sensitivity to measure the AC voltage
drop across the resistor. (See Diagram.) Move the
resistoi connection to each exposed metal part having
a return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the
power switch in both the On and Off positions.)

returning the unit to the owner.

PM665

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER 0R BX CABLE,
CONDUIT. ETC.

HIGH
VOLTAGE
OR +LEAD

GROUND
LEAD

VTVM
Lo AC SCALEQ-

1.5M).
10W

VVV

_|I__

DJSLAF
TEST PROBE
TO EXPOSED CONNECT TO KNOWN
METAL PARTS EARTH GROUND

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before
