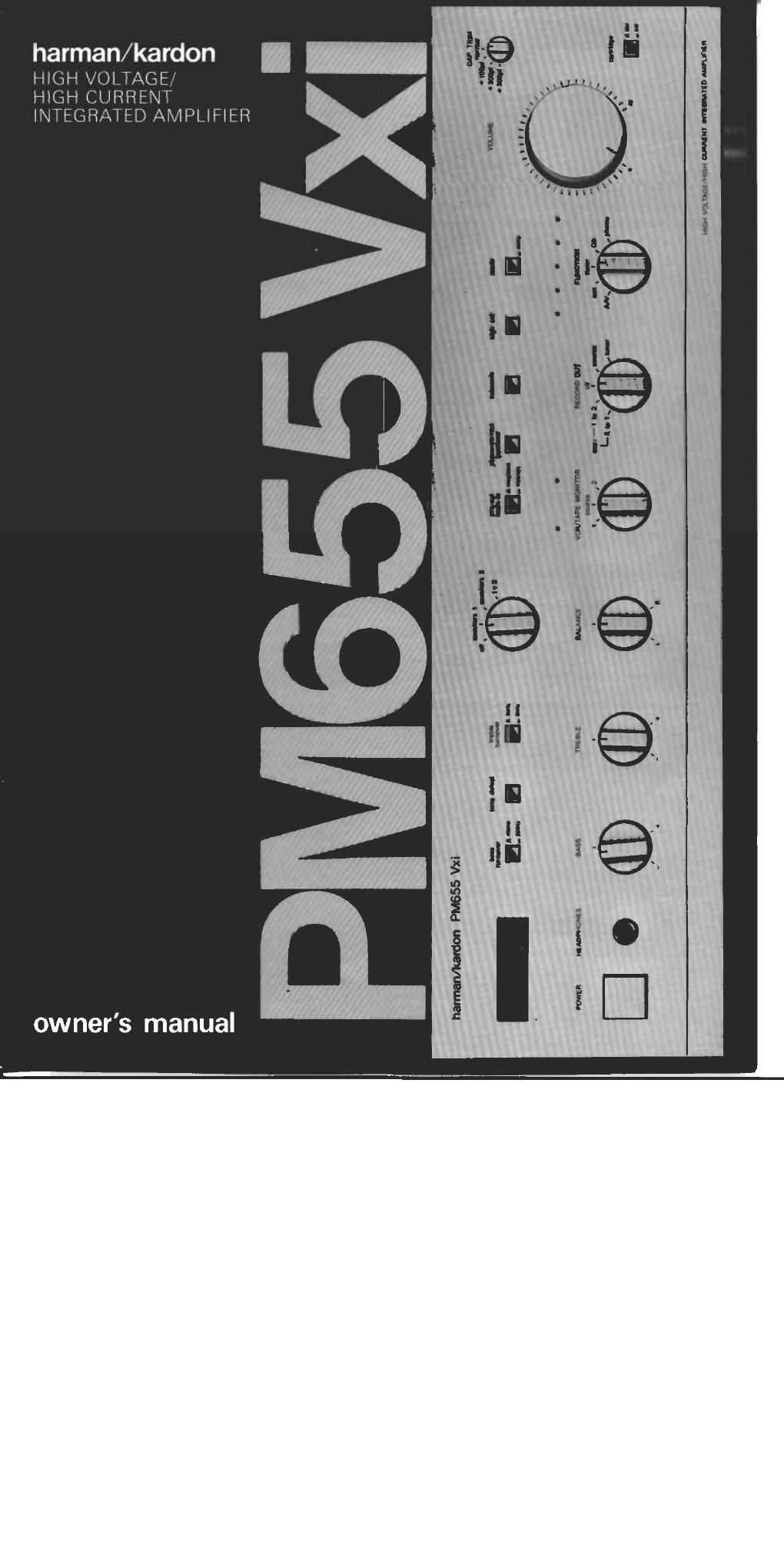

Page 1

harman/kardon
HIGH VOLTAGE-v"

HIGH CURRENT
INTEGRATED AMPLIFIER

I! «nun-u mi" "1! L63"!

> -

(O _.
5 2
CL

harman/katdon PM655 in

owners manual

Page 2

_-_

SPECIFI TIO

Congratulations on your purchase of the Harman
Kardon PM655 in High Voltage/High Current Inte-
grated Amplifier.

In order to appreciate the full performance of this
sophisticated unit, please be sure to read this owner's
manual and use your integrated amplifier only in ac»
cordance with its instructions. Keep it in a safe place
for future reference.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

&

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER SERVA
ICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL,

&
&

WARNING: TO REDUCE THE RISK OF FIRE 0R ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (serVicing) instructions In
the literature accompanying the appliance.

CAUTIONITO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD.
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED To PREVENT BLADE EXPOSURE,

ATTENTION: POUR PREVENIR LES CHOCS ELECTV
RiouEs NE PAS u l iLISER CETTE FICHE POLARISEE AVEc UNE
RALLONGE. UNE PRISE DE COURANTOU UNEAUTRE SORTiE
DE COURANT, SAUF Sl LES LAMES PEUVENT ETRE INSEREES
A FOND SANS EN LAiSSER AUCUNE PARTiE A DECOUVERT

Continuous Average Power
(FTC)
(both channels driven,
2W2ODOOHZ)

HCC (High instantaneous
Current Capability)

Power Bandwidth (at half
rated Output, 8 Ohms)

Frequency Response (at
1 Watt output, +0. ~3dB)

Damping Factor

Signal-torNoise Ratio (ref.
rated power output, A-wtd)

Phono (MM)
Phono (MC)
Video/CD
Mainrin

Input Sensitivity/Impedance
Phono (MM)

Phono (MC)

Video/CD

Main-in
Phono Overload

MM

MC

Tone Control Characteristics
Bass Turnover Frequency
Treble Turnover Frequency :

Filters
Subsonic
High Cut

Phase-correct Loudness
Boost (at BOHZ)
Phase Shift
(BOWZODOOHZ)

Dimensions (W x H x D)

Weight
Power Supply
Power Consumption

' 90 Watts per channel

@ less than 0.08% THD
into 8 Ohms

90 Watts per channel.
@ less than 0.1% THD
into 4 Ohms

:i45 Amps

:

:0,2Hz to 150.000Hz

:65dB

:80dB
.76dB
:98dB
: 110dB

'2.2mV/47l< Ohms,

l25-425pF

120uV/56 Ohms
'135mV/22k Ohms
:O.8V/22l< Ohms

: 220mV
: IZmV

:200Hz/4OOH2

ZkHz/BkHz

:l5H2, 6dB/Octave
:6kHz, BOB/Octave

:+lOdB
.<5

:l7~1/2"x5»l/4"x15~11/l6"

(443 x134 x 398 mm)
24.7le. (I1.2kg)

'AC 120V, 60Hz
I 340W, 430VA

All specifications and features subject to change without notice

This manual applies to Champagne gold and black versions with

this model PM655 l/Xl
