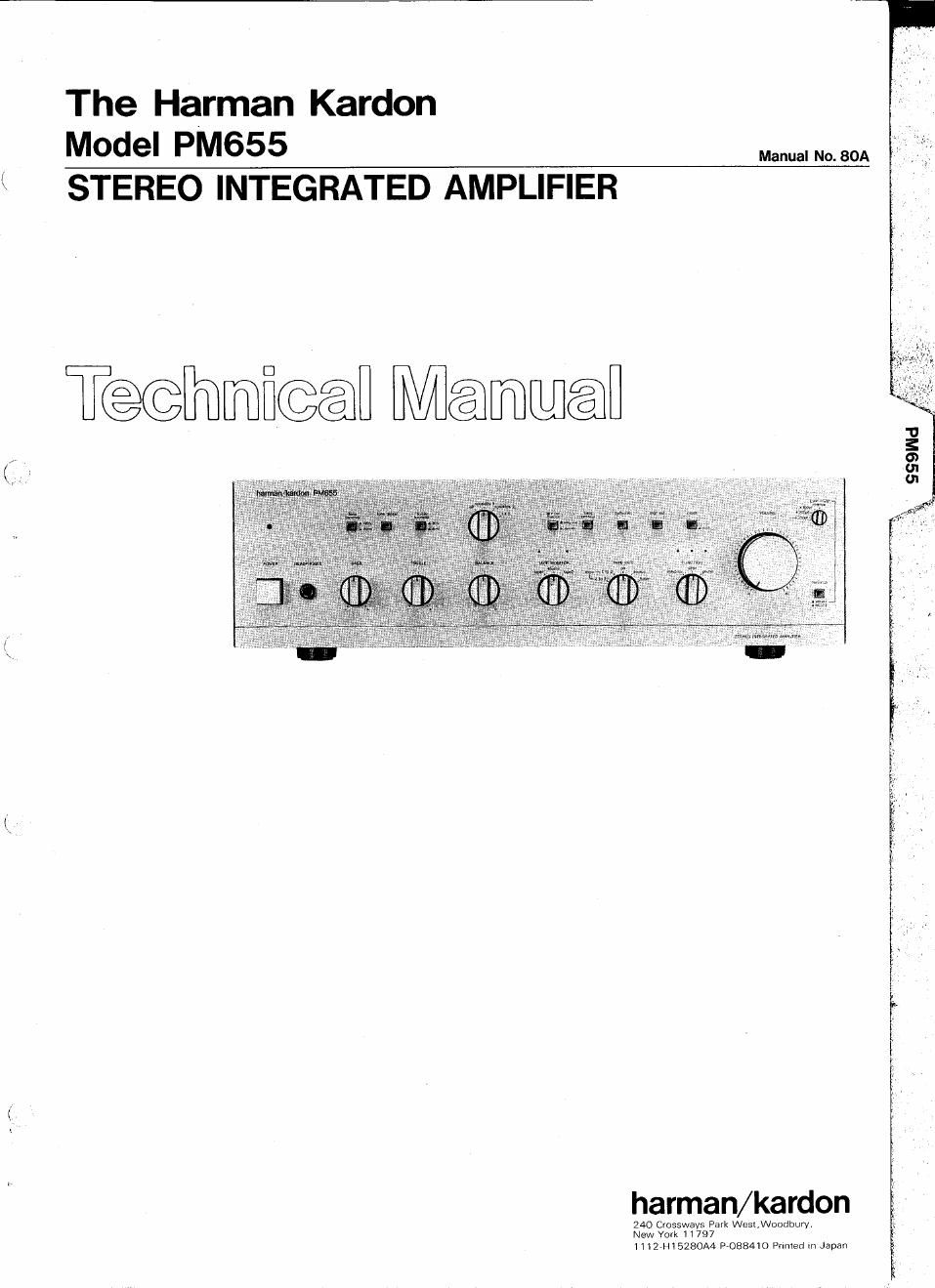

Page 1

The Harman Kardon
Model PM655

( STEREO INTEGRATED AMPLIFIER

T@@mfi@@ Mmm

Manual No. 80A

harman/kardon

240 Crossways Park Wesl,Woodbury.
New York 11797

11127H15280A4 P7088410 antsd In Japan

Page 2

to
in
to
E
a

SPECIFICATIONS

RMS Output Power
89, lkHz, THD 0.08%
45), lkHz, THD 1.0%
High Instantaneous Current
Capability (HCC)
Half Power Bandwith
Frequency Response at -3dB
Input Sensitivity
Video/CD, Tuner

Nominal Limit

67W 2 60W
112w Z1oow

45A
10HZ ~ lOOkHz
0.15Hz ~180kHZ

135mV 1: 25mV

Nominal Limit

Filters
Subsonic 15Hz. GdB/Octave
High Cut 6kHz, 6dB/0ctave
Bass Contour
Boost at 50Hz +10dB
DC Output Voltage
L channel OmV i GOmV
R channel OmV 1 GOmV

RIAA Equalization at Tape Out
(20HZ/20kHz) (No load) 0.2dB S 0.5dB/0.2dB S 0
Phone Overload (No load)
Phono (MM)
Phono (MC)
Dimensions (W x H x D)

220mv2 190mV
13mV Zamv
17-1/2"x5-5/16"x15-11
(443 x 134 x 398 mm)
Weight 22 lbs.11 oz. (10.3 kg)
Power Supplies

U.S.A. and Canada models

General and German models
Power Consumption

U.S.A. and Canada models

General and German models

AC 120V, GOHZ
AC 220/240V, 50/60H:

400W (440VA)
290W

Phono (MM) 2.2mV i 0.2mV
Phono (MC) 120uV i 0.2uV
Signal to Noise Ratio
Video/CD, Tuner 79.5dB 2 78dB
Phono (MM) 79.5dBZ77dB
Phono (MC) 77dB Z 74dB
Channel Separation at 10kHz
Video/CD, Tuner SOdB 2 45dB
Phono (MM) 56d3245de
Phono (MC) 50d3245de
IM Distortion Ratio 0.06% S 0.1%
Damping Factor at 1kHz 66 Z 50
Tone Control Characteristics
Bass Turnover Frequency 200Hz/400Hz
Bass at SOHZ
Boost 10dB i 2dB
Cut -10dB i 2dB
Treble Turnover Frequency 2kHz/6kHz
Treble at 10kHz
Boost 10dB i 2dB
Cut -10dB i 2dB

Input Sensitivity lPhono MM and MC) for German model are
2.4mv i 0.2mV (MM) and 145W i 20w (MC).

This specification is the target of servicing. But, there is a case
that the specification is not applicable to the measurement
condition and instrument.

Specifications and components subject to change without notice.
Overall performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)
Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make cer-
tain that leads are not pinched or
that hardware is not lodged be-
tween the chassis and other metal

SIMPSON MODEL 229 ETCr FOR
LEAKAGE TEST

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

parts in the unit.

2. Be sure. that any protective devices HIGH

VOLTAGE

GROUND
LEAD

TO AC GROUND SUCI-
AS WATER OR BX CAl
CONDUIT, ETC,

such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment cov~
ers or shields, isolation resistor-
capacity networks, mechanical in-
sulators, etc. which were removed
for servicing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage

current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT540A or use alternate method as follows:
Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15pF capac-
itor, in series with all exposed metal cabinet parts
and a known earth ground, such as a water pipe or
conduit. Use a VTVM or VOM with 1000 Ohms per
volt, or higher, sensitivity to measure the AC voltage
drop across the resistor. (See Diagram.) Move the
resistor connection to each exposed metal part having
a return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This testshould be performed with the
power switch in both the On and Off positions.)

OR +LEAD

fa

VTVM
.0 Ac SCALEQ.

1.5m
10W

W

_ll_

0.15uF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected befi

returning the unit to the owner.
