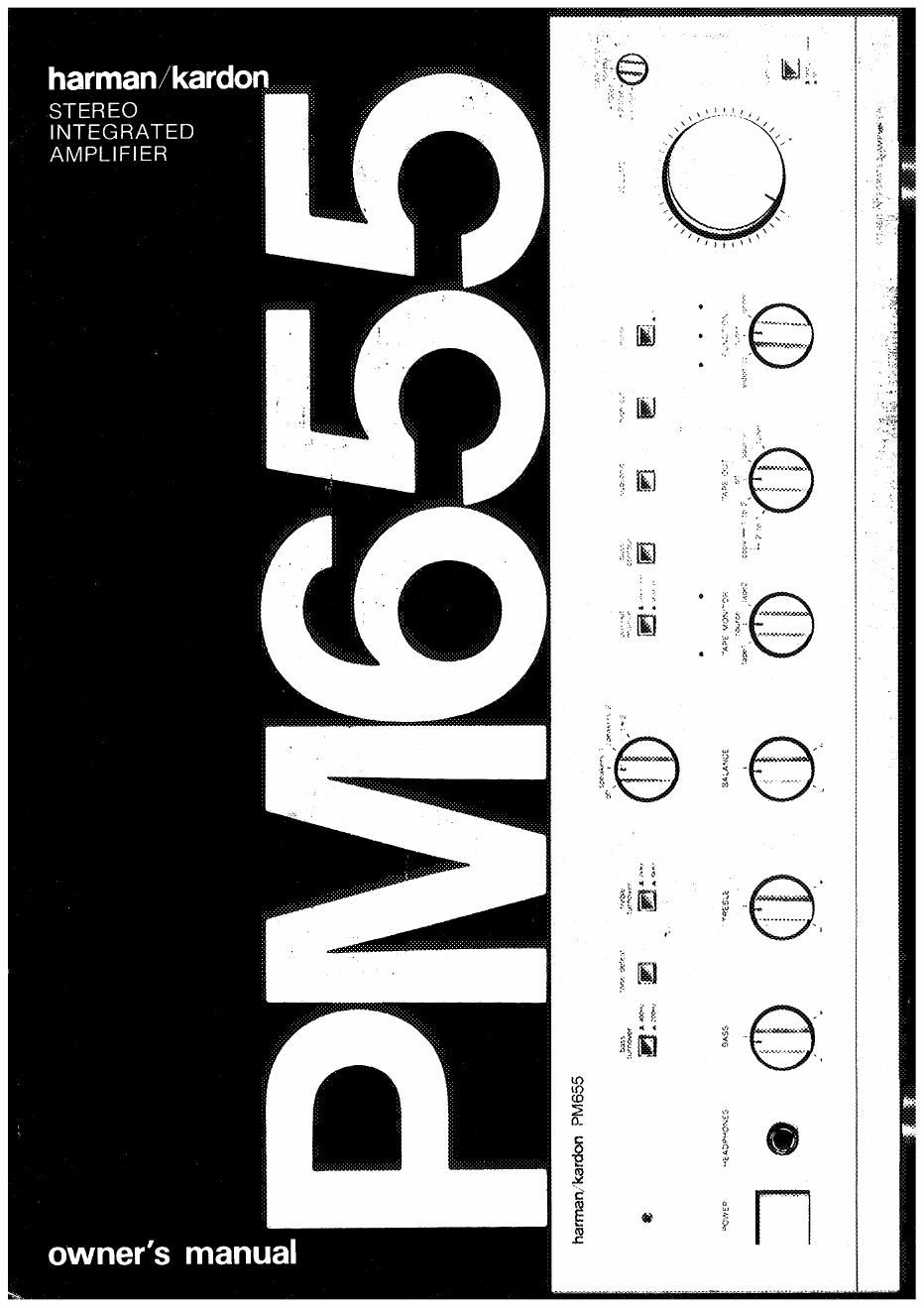

Page 1

harman/kardon ,. .

STEREO
INTEGRATED
AMPLIFIER

. . .
7.». .3; a»; - \

a

00

harmam'kardon PMS€>5

owners manual

Page 2

SPECIFIC ONS

Congratulations on your purchase of the
Harman Kardon PM655 Stereo Integrated
Amplifier.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owner's manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

[A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE, REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage" within the
products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important oper-
ating and maintenance (sen/Icing) instructions in the
literature accompanying the appliance.

9%

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

CAUTION: To PREVENT ELECTRIC SHOCK, DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED To
PREVENT BLADE EXPOSURE.

A ENTION: POUR PREVENIR LES CHOCS ELECTRIQUES NE
PAS UTILISER CETTE FICHE POLARISEEAVEC UNE RALLONGE. UNE
PRISE DE COURANT 0U uNE AUTRE SORTIE DE couRANT, SAUF
SI LES LAMEs PEUVENT ETRE INSEREES A FOND SANs EN LAlSSP
ER AUCUNE PARTIE A DECOUVERT

Power Output] RMS : 60 watts per channel
(both channels drIven into @ less than 0.08% THD
8 Ohms, 20-20.000H2)

HCC (hIgh Instantaneous . 45A
current capability)

Power Bandwrdth (at half . iOHz to 100.000Hz

rated output Into 8 Ohms)

Frequency Response : 0.2Hz to 150,000Hz

(+0, 73:18)
Damping Factor >65

$ignai»to-Norse Ratio,
IHF-A WTD (reference 1W

Output)
Phono (MM) : 79dB
Phono (MC) : 77dB
Video/CD. Tuner,: BOdB

Tape

input Sensitivity/Impedance

Phone (MM) : 2 2mV/47l< Ohms and i25pF
Phono (MC) : l20yV/56 Ohms
Video/CD, Tuner,: lSSmV/22k Ohms
Tape
Main-in : 0.8V/22k Ohms
Phono Overload
MM : 220mV
MC : i2mv

Tone Control Characteristics
Bass Turnover Frequency : ZOOHz/AOOHZ
Treble Turnover Freouency: 2kHz/6KH2

Filters
: iEHz, 6dB/Octave
: GkHZ, GdB/Octave

Subsonic
High Cut

Bass Contour
Boost (at EOHZ) : +TOdB
Phase Shlit :<5°
(30072O,OOOHZI

:17-i/2"><5-5/16><15-11/16
(443 x134 x 398 mm)

Dimensions (W x H x D)

Weight : 22lbs.iiez. (10.3kg)
Power Supply : AC 120V, 60Hz
Power Consumption : 400W

All specrhcations and features subject to change Without notice.

Thrs manual applies to champagne gold and black versions with
{MS model PM655.
