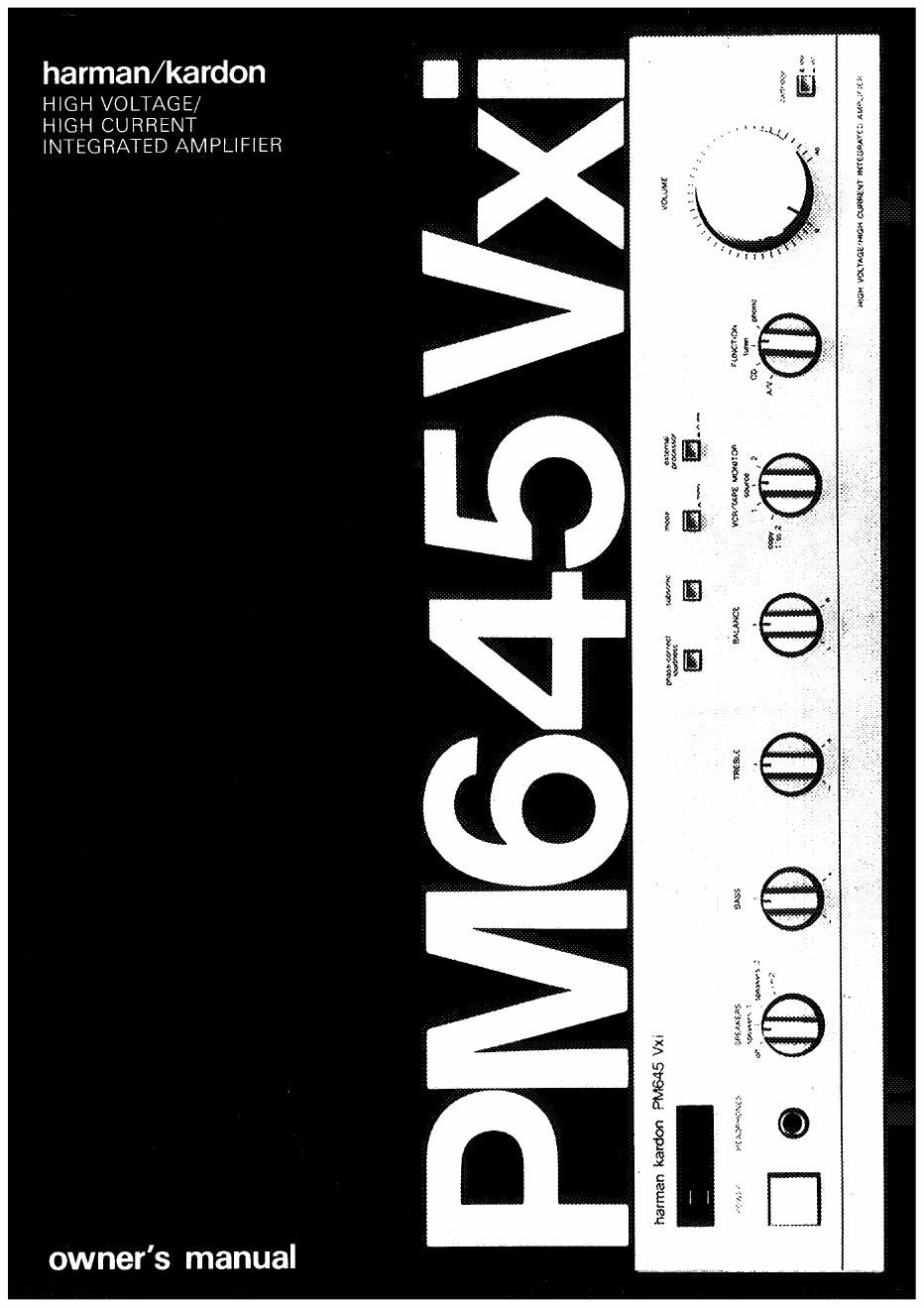

Harman kardon pm 645 vxi owners manual

Page 2

SPECIFI TION

Congratulations on your purchase of the Harman
Kardon PM645 in High Voltage/High Current lnte-
grated Amplifier.

ln order to appreciate the full performance of this
sophisticated unit, please be sure to read this owner's
manual and use your integrated amplifier only in ac-
cordance with its instructions. Keep it in a safe place
for future reference.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

ii

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK) NO USER SERV-
ICEABLE PARTS lNSIDE. REFER SERVICINGTO QUALIFIED
SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle. is intended to alert the user to the
presence of uninsulated dangerous voltage within
the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

WARNING: TO REDUCETHE RISK OF FIRE OR ELECTRlC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
lVlOlSTURE.

CAUTIONZTO PREVENT ELECTRlC SHOCK, DO NOT
USE THis (POLARlZED) PLUG WlTH AN EXTENSlON CORD,
RECEPTACLE on OTHER OUTLET UNLEss THE BLADES CAN
BE FULLY iNSERTED To PREVENT BLADE EXPOSURE,

ATTENTION: POUR PREVENIR LES CHOCS ELECT»
RlOUES NE PAs UTlLlSER CEi'rE FlCHE POLARISEE AVEC UNE
RALLONGE, UNE PRISE DE COURANT ou UNEAUTRE SOHTlE
DE COURANT, SAUF Sl LEs LAMEs PEUVENT ETRE lNSEREES
A FOND SANS EN LAlSSER AUCUNE PARTIE A DECOUVERT.

Continuous Average Power
(FTC)
(both channels driven,
ZMZOOOOHZ)

HCC (High instantaneous
Current Capability)

Power Bandwidth (at halt
rated output, 8 Ohms)

Frequency Response (at
l Watt output, +0, -3dB)

Damping Factor

Signal-to-Noise Ratio (ref.
rated power output, A-wtd)

Phono (MM)
Phono (MC)
Tuner/CD

Input Sensitivity/Impedance
Phono (MlVl)
Phono (MC)
Tuner/CD

Phono Overload
MM
MC

Tone Control Characteristics
Bass Boost/Cut (at 50Hz) .
Treble Boost/Cut (at iOkHz) :

Suosonic Filter

Phaseroorrect Loudness
Boost (at 50Hz)
Phase Shift
(soc-zoooonz)

Dimensions (W x H x D)

Weight
Power Supply

Power Consumption

:60 Watts per channel

@ less than 009% THD
into 8 Ohms

60 Watts per channel

@ less than 0 3% THD
into 4 Ohms

: i30 Amps
:<10H2 to lOODOOHz
:O.5Hzt0150,000H2

:65dB

:80dB
.76dB
:98dB

:2,2niV/47k Ohms, 125pF
:120pV/56 Ohms
'135mV/22k Ohms

'110mV
:GmV

+10dB/i OdB
+iOdB/ni OdB

:15Hz. BdB/Octave

:+10dB
:<5

:17-1/2"x4"x13-15/16"

(443 x l03 x 353 mm)

115.4lbs. (7kg)
:AC 120V, 60HZ
:248W, BOOVA

All specifications and features subject to Change without notice

This manual app/[es to champagne gold and black versions

with this mode/PM645 l/Xf.
