Page 1

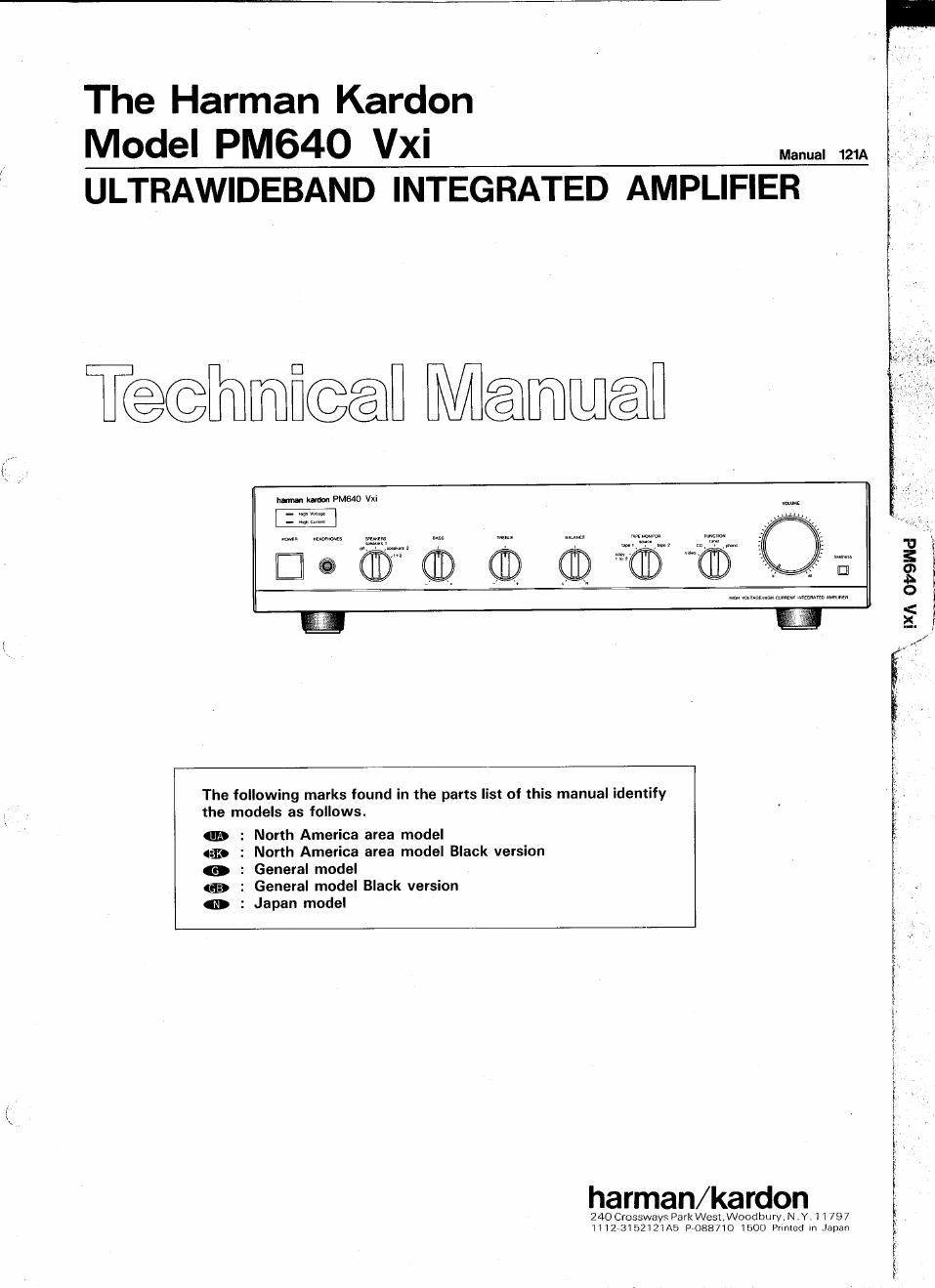

The Harman Kardon

ULTRAWIDEBAND INTEGRATED AMPLIFIER

Tecemiwl Mflffllfléfifl

Model PM64O in

The following marks found in the parts list of this manual idenrify
the models as follows.

on : North America area model

«no : North America area model Black version
o : General model

cg») : General model Black version

0 : Japan model

harman/kardon

240 Crossways Park Wesl,Woodburv, N .Y.11/S7
111273152121Ab P 088710 1500 Prlnted m Japan

3 l
2 l
° 1
<

a. l
x'/

a M

Page 2

PM640 in

~ssa
SPECIFICATIONS
Nominal Limit . Nominal Limit

RMS Output Power Loudness Control (with Volume

89, 1kHz THD 0.1% 50w;45w Control at -40dBl

4o, 1kHz THD 0.3% 55.7w;45w at 10kHz 3dB: ldB
High Instantaneous Current at 50Hz 10dB : 2dB (

Capability (HCC) 29.6;25A DC Output Voltage -
Half Power Bandwith 10Hz~100kHz L channel OmV 2 60mV
Frequency Responce at -3dB 0.56Hz~167kHz R channel 0th60mV

Input Sensitivity

RIAA Equalization at Tape Out

Tuner 135mV i 25mV (ZOHz/ZOkHzl (No load) 0.12dB +1.0dB/O.12dB-0.2dB
Phono 2.2mV:0.2mV Phono Over Load (No load)

Signal to Noise Ratio Phono 104mV;95mV
Tuner 83.7de75dB Dimensions (W x H x D) 1771/2 X 41/16 x13-7/8"
Phono eo.od3;73da (443x103x 351mm)

Channel Separation at lOkHz Weight 12le. 202- (5.5km
Tuner 67ng50dB Power Supplies
Phono 58ng45dB North America area model AC 120V, 60Hz

lM Distortion Ratio
Damping Factor at 1kHz
Tone Control Characteristics
Bass Turnover Frequency (200Hz/4OOHZ)
Bass at 50Hz/100Hz
Boost 10dB i 2dB
Cut 1 OdB i 2dB
Treble Turnover Frequency (2kHz/6kHz)
Treble at 10kHz/30kHz
Boost 'lOdBiZdB
Cut 10dB i 2dB

0.022%§O.1%
58350

'>'<
>
O
V
to
E
o.

AC 220/24OV, EO/BOHZ
AC 100V, 50/60Hz

General model
Japan model
Power Consumption

North America area model 215W (277VA)
General model 151W
Japan model 110W

f

This specification is the target of servicing. But, there is a case that the
specification is not applicable to the measurement condition and instrument.

Specifications and components subject to change without notice. Overall
performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.i

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs.
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators,
etc. which were removed for service
ing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT54OA or use alternate method as follows:

Plug the power cord directly into a 120nvolt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 ptF capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metall cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC, FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE.
CONDUIT, ETC.

HIGH
VOLTAGE
OR + LEAD

GROUND
LEAD

6

VTVM
-0 AC SCALE 0

1.5kn
10W

WV

0.15M:

TEST PROBE {

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND

resistor. (This test should be performed with the power switch in both the On and Off positions.)
A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
