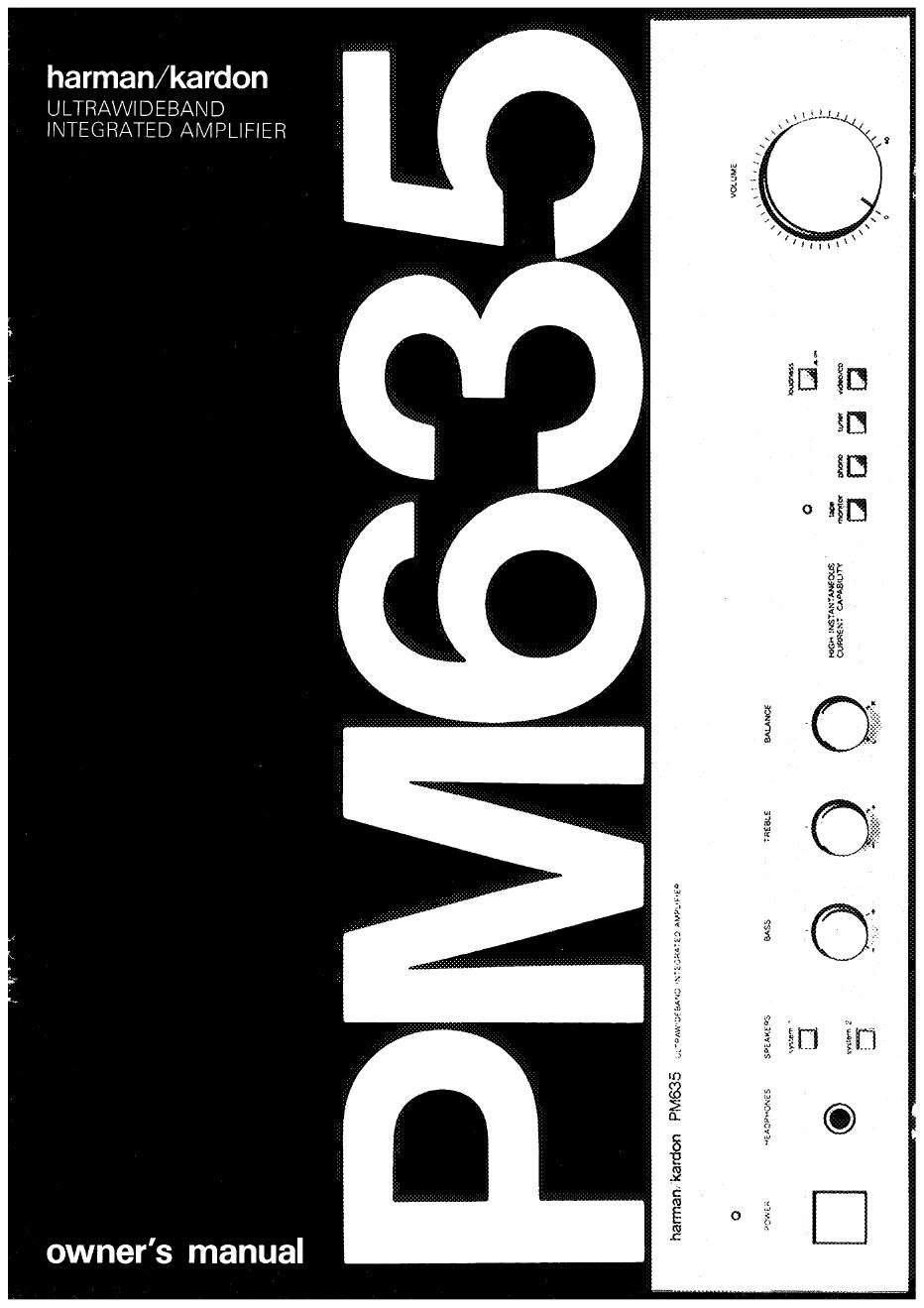

Page 1

harman/kardon

ULTRAWI DEBAND
INTEGRATED AMPLIFIER

I!)
23
6::

harman kardon

owner's manual

Page 2

SPECIFIC TIONS

Congratulations on your purchase of the
Harman Kardon PM635 Ultrawideband
Integrated Amplifier.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your integrated amplifier
only in accordance with its instructions. Keep it
in a safe place for future reference.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

& &

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACKl. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle IS in-
tended to alert the user to the presence of important operr
ating and maintenance (servicing) instructions in the
literature accompanying the appliance

9%

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE,

CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THlS
lPOLARlZEDl PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLEss THE BLADES CAN BE FULLY INSERrED TO
PREVENT BLADE EXPOSURE.

ATTENTION: FOUR PREVENIR LES CHOCS ELECTRIQUES NE
PAS UTILISER CETTE FICHE POLARlSEEAVEC UNE RALLONGE. UNE
PRISE DE COURANT 0U UNE AUTRE SORTIE DE COURANT, SAUF
3| LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSE
ER AUCUNE PARTIE A DECOUVERTV

Power Output, RMS
(both channels driven into
8 Ohms, 20 - 20,0001-12)

HCC (high instantaneous
current capability)

Power Bandwidth (at half
rated output into 8 Ohms)

Frequency Response
( + 0, - 3dB)

Damping F actor

Signal~to-Noise Ratio,
IHF-A WTD (reference 1W
output)
Phone
Tuner, Video/CD, Tape

Input Sensitivity/Impedance
Phono
Tuner, Video/CD, Tape
Phono Overload, MM

Tone Control Characteristics
Bass Boost/Cut (at 50Hz)
Treble Boost/Cut (at IOkHz):

Dimensions (W x H x D)

Weight
Power Supply

Power Consumption

: 30 watts per channel

@less than 0.09% THD

: 18A

: 10Hz to 60,000Hz

: 05Hz to 150,000Hz

:>60

: 80dB
: SZdB

: 2.2mV/47k Ohms and

125pF

1 l35mV/22k Ohms
: lSOmV

: +10dB/elOdB

+10dBl-10dB

: 17-1/2 x4-1/16 x13-7/8

(4-43 x103 x 353 mm)

: 121133. Zoz. (5.5kg)
:AC 120V, 60Hz
: 220W (242VA)

All specifications and features subject to change without notice.

This manual applies to champagne gold and black versmns Wlth

this model PM635.
