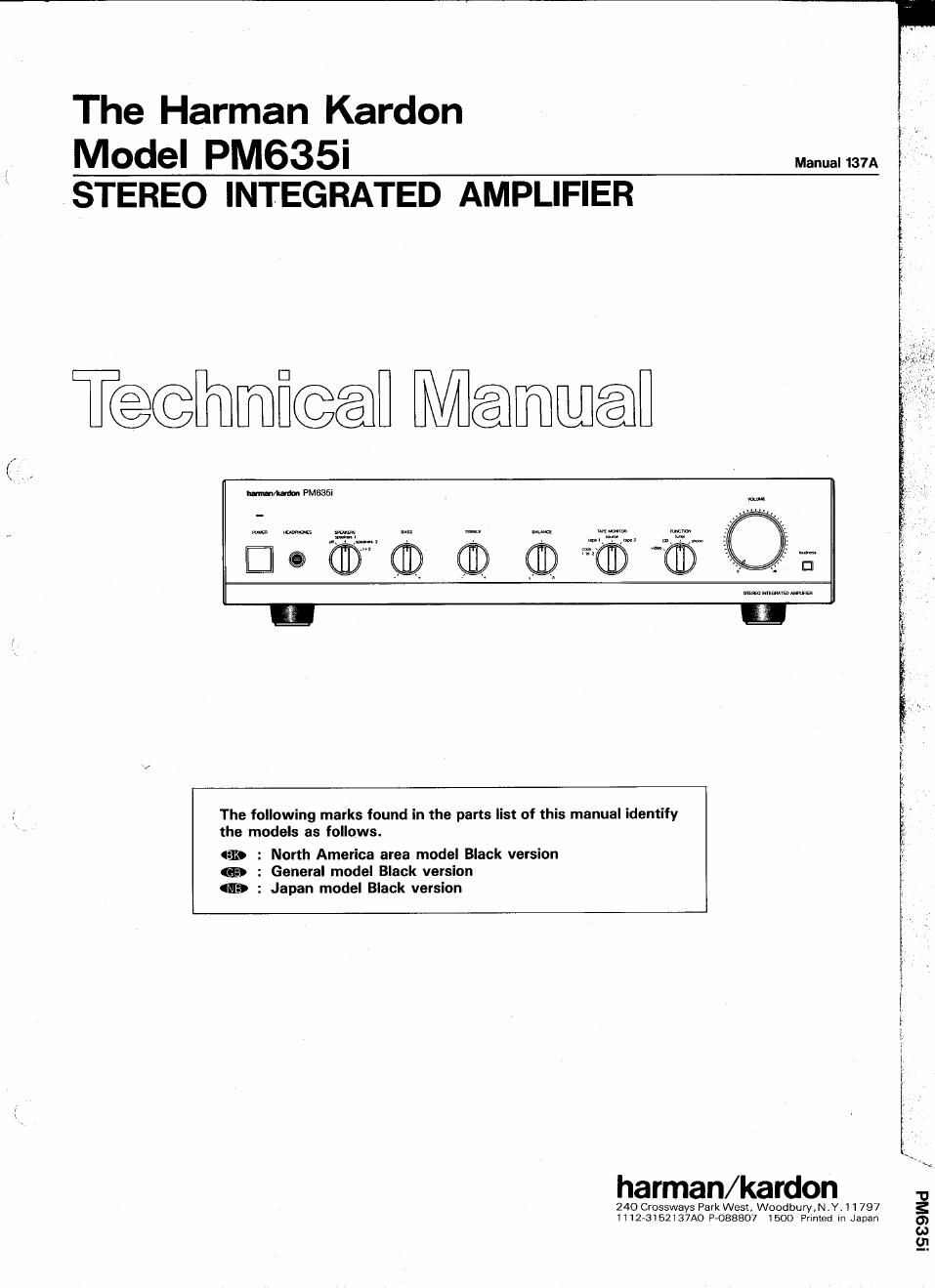

Page 1

-_fl-_fl

The Harman Kardon

Model PM635i

STEREO INTEGRATED AMPLIFIER

T@@H

The following marks found in the parts list of this manual identify
the models as follows.
«I; : North America area model Black version

G? : General model Black version
«3 : Japan model Black version

harman/kardon

240 Crossways Park Wesll Woodburyl N .Y.11797
711273152137AO P7088807 1500 Printed in Japan

529m /

Page 2

_ . W.

SPECIFICATIONS
Nominal Limit
RMS Output Power
so, 1kHz THD 0.1% 35W;30W
High Instantaneous Current
Capability (HCC) 20.8A;15A

Half Power Bandwidth
Frequency Responce at - SdB
Input Sensitivity

10Hz ~ IOOkHz
O.6Hz~178kHz

Tuner 135th25mV

Phono 2.2mv : gjmv
Signal to Noise Ratio

Tuner 85.5ng75dB

Phono 80.0ng73dB
Channel Separation at 1 OkHz

Tuner 55ng45dB

Phono 55dB g45dB
IM Distortion Ratio 0.05%;O.1%
Damping Factor at 1kHz 70; 50

Tone Control Characteristics
Bass Turnover Frequency (200Hz/400Hzl
Bass at 50HzI1OOHz
Boost 10dB i 2dB
Cut 1 OdB i 2dB
Treble Turnover Frequency (2kHz/6kHz)
Treble at 10kHz/30kHz
Boost 10dB i: 2dB
Cut 1 OdB : 2dB

Loudness Control [with Volume

Control at -40dB)
at 10kHz
at 50Hz
DC Output Voltage
I. channel
R channel
RIAA Equalization at Tape Out
(20Hz/20kHzI (No load)
Phono Over Load (No load)
Phono
Dimensions (W x H x D)

Weight
North America area model
General model
Japan model

Power Supplies
North America area model
General model
Japan model

Power Consumption
North America area model
General model
Japan model

Nominal Limit

3dB i 1 dB
10dB i 2dB

OmV i 60mV
OmV 1 60mV

0.12dB +0. 5dB/0.1 2dB-0.5dB

110mV ; 95mV
17-1/2" X 41/1 6" X 13-7/8"
(443 x 103 x 353mm)

12lbs. 12oz. (5.8kg)
14lbs.1oz. (6.4kg)
13lbs, 1002. (6.2kg)

AC 120V, SOHZ
AC 220/240V, 50/60HZ
AC 100V. 50/60HZ

220W (242VA)
1 90W
98W

These specifications are service target specs.

Specifications and components subject to change without notice. Overall
performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.I

Before returning the unit to the user, perform the following safety checks:

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between

T0 AC GROUND SUCH
AS WATER PIPEBX CABLE.
CONDUIT, ETC.

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

the chassis and other metal parts
in the unit,
2. Be sure that any protective devices

HIGH GROUND

_ VOLTAGE LEAD i
such as nonmetallic control knobs, OH + LEAD \-
insulating fishpapers, cabinet backs.
adjustment and compartment covers
or shields, isolation resistor-capacity 6
networks, mechanical insulators,
etc. which were removed for servic- VTVM
log are properly reinstalled. L0 Ac SCALEQ.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model 235,

WT540A or use alternate method as follows:

Plug the power cord directly into a 120-volt AC WV
receptacle (do not use an Isolation "Transformer for

this test). Using two clip leads, connect a 1500

Ohm, 10-watt resistor paralleled by a 0.15 uF capacitor,

_.__'|-

in series with all exposed metal cabinet parts and 015%

a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or

higher sensitivity to measure the AC voltage drop TEST PROBE
across the resistor. (See Diagram.) Move the resistor . (
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet, T0 EXPOSED CONNECT T0 KNOWN
METAL PARTS EARTH GROUND

screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before
returning the unit to the owner.
