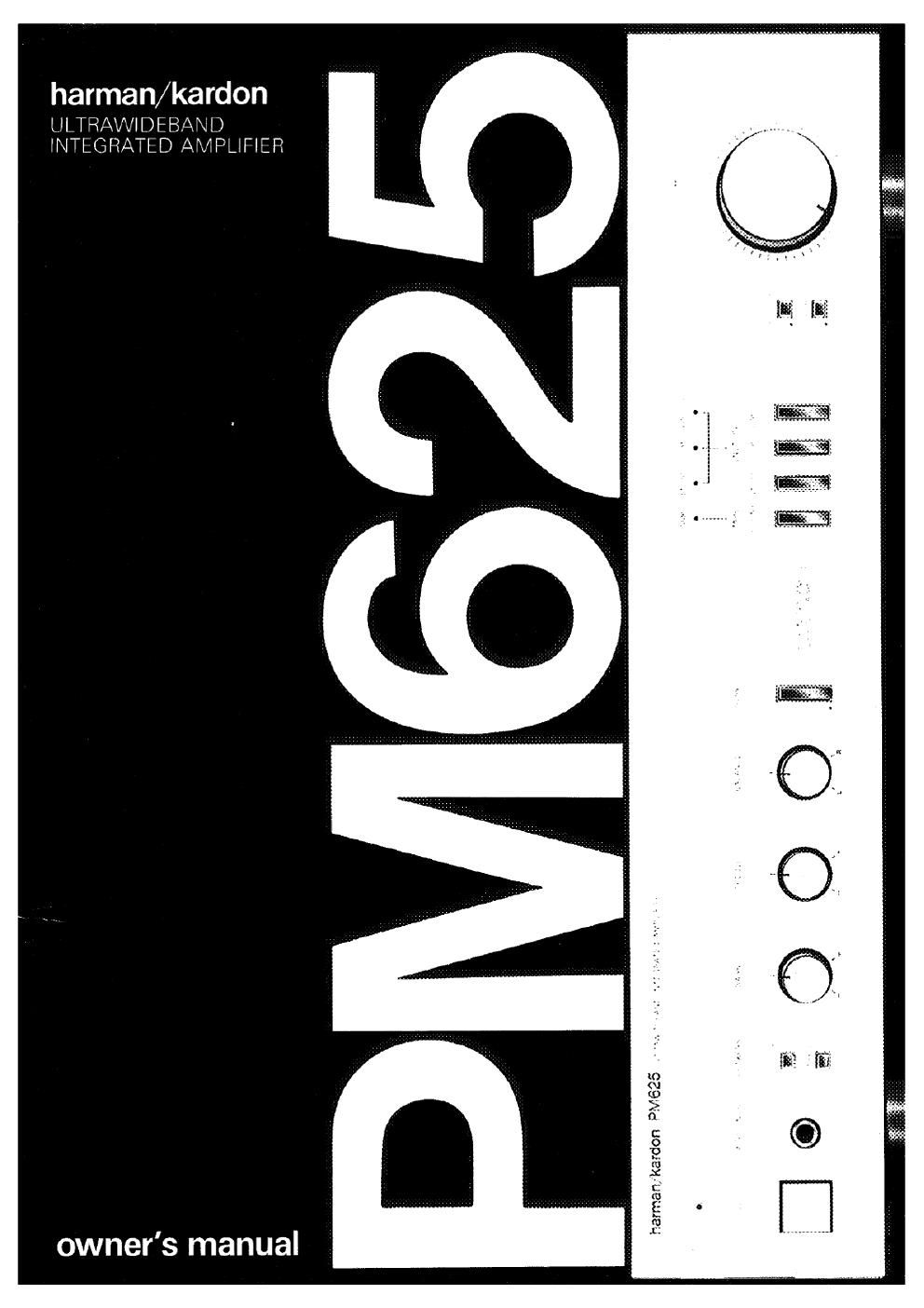

Harman kardon pm 625

Page 2

SPECIFICAT 8

Congratulations on your purchase of the
Harman Kardon PM625 Ultrawideband Integrated
Amplifier.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

& &

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USERv
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsuleted "dangerous voltage" within the
products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important oper
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.

9%

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT T0 RAIN 0R MOISTURE.

Power Output, RMS
(both channels driven into
8 Ohms. 20-20,000HZ)

HCC (high instantaneous
current capability)
Power Bandwtdth (at haf
rated output into 8 Ohms)
Frequency Response
(+0. -3dBl
Damping Factor
Signal-to-Nmse Ratio.
[HF-A WTD (reference 1W

output)
Phono

Video/C Di Tuner,:

Tape

lnput Sensitmty/Imoedance
Phono

Video/C D, Tuner,:

Tape
Phono Overload. MM
Tone Control Characteristics

Bass Boost/Cut (at 50Hz) :
Treble Boost/Cut (at lOkHz):

Filter
High Cut

Drmensuons (W x H x D)

We: ght
Power 5 u pplv

Power Consumption

: 20 watts per channel

@ less than 0 09% THD

:18A

: 10Hz to 80.000Hz

: 0.3Hz to 120,000Hz

'>60

: 82dB

84dB

: 2.2mV/47k Ohms and

l25pF
135mV/22k Ohms

: lEOmV

+1 OdB/-10dB
+1 OdB/-10dB

: 6kHz. SUB/Octave
: 17-1/2 x 4-1/16"x l3-7/8"

(443 x 103 x 353 mm)

: 12lbs1301. (5.8kg)

AC lZOV, GOHZ
1 65W

All soecificattcns and features subiecz to change w.thout notice
