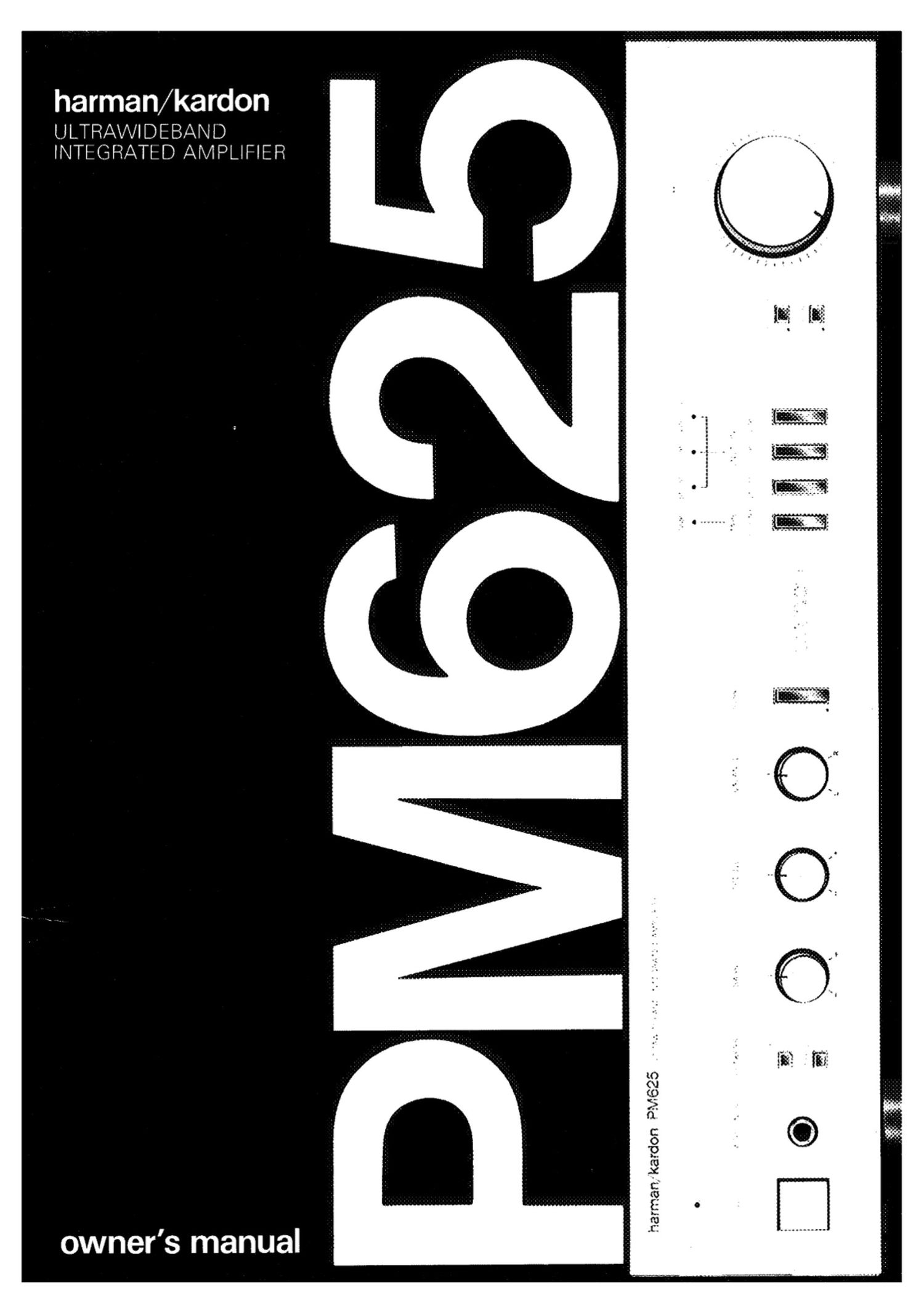

Page 1

harman/kardon

ULTRAWIDEBAND
INTEGRATED AMPLIFIER

harman; kardon 95/5625

owner's manual

Page 2

SPECIFICATIONS

Congratulations on your purchase of the
Harman Kardon PM625 Ultrawideband Integrated
Ammma.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owners manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

tended to alert the user to the presence of important oper-
ating and maintenance (servrcing) instructions in the
literature accompanying the appliance.

j The exclamation point within an equilateral triangle is in-

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Power Output, RMS
(both channels driven into
8 Ohms. 20-20.000H2)

HCC (high instantaneous
current capability)

Power Bandwidth (at half
rated output into 8 Ohms)

Frequency Response
(+0. -3dBI

Damping Factor

Signal-to-Noise Ratio.
IHF-A WTD (reference IW
Output)
Phono .
Video/C D. Tuner.:
Tape

Input Sensitiwty/Impedance
Phono

Video/CD. Tuner. :
Tape

Phono Overload. MM

Tone Control Characteristics
Bass Boost/Cut (at 50Hz) :
Treble Boost/Cut (at IOkHz) :

Filter
High Cut

Dimensions (W x H x 0)

Weight
Power Supply

Power Con5umption :

: 20 watts per channel

@ less than 009% THD

:18A

: IOHz to 80.000Hz

: 0.3Hz to 120.000Hz

t>60

82dB

84dB

: 2.2mV/47k Ohms and

IZSpF
I35mV/22k Ohms

: IBOmV

+1 OdB/-IOdB
+1 OdB/-lOdB

: 6kHz, 6dB/Octave
: 17-1/2" x 4-1/16" x 13-7/8

(443 x103 x 353 mm)

: 12lbs.1302. (5.8kg)
; AC 120V, 60Hz

165W

All specifications and features subject to change wrthom notice.
