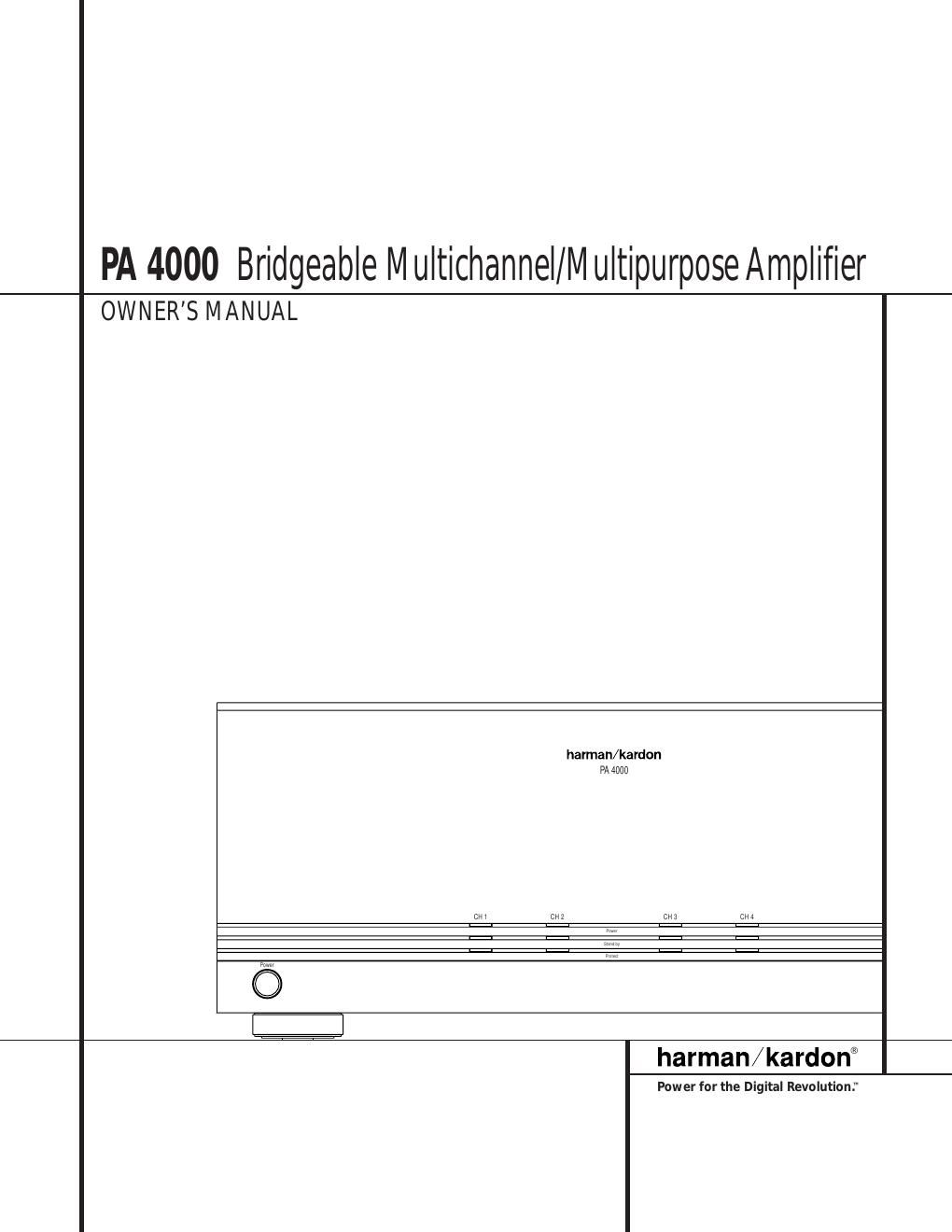

Harman kardon pa 4000 owners manual
This is the 16 pages manual for harman kardon pa 4000 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon pa 4000 owners manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS 3 Introduction 4 Safety Information 4 Unpacking and Installation 5 Front-Panel Controls and Indicators 6 Rear-Panel Connections 8 Installation and Configuration 8 Power Control Connections 8 Manual Operation 8 Remote Turn-On Using Music Sense 8 Keypad Control 9 Channel Configurations, Audio Connections & Speaker Connections 9 One Input/Four Outputs 9 One Input/Three Outputs 9 One Input/Two Outputs 10 Two Inputs/Four Outputs 10 Two Inputs/Three Outputs 10 Two Inputs/Two Outputs 10 Note for Audio Connections 11 Speaker Wire Connections 12 System Connections 12 Parallel Output Connection 12 Infrared Control Connections 12 Keypad Connections 12 AC Power Connection 13 Operation 13 Volume Control & Output Level Adjustment 13 Turn-On Volume Level Limits 14 Service Information 14 Fuse Replacement 14 Troubleshooting Guide 15 Technical Specifications PA 4000 Bridgeable Multichannel/Multipurpose Amplifier Typographical Conventions In order to help you use this manual with the front-panel controls and rear-panel connections, certain conventions have been used. EXAMPLE Ð (bold type) indicates a specific front-panel button or rear-panel connection jack 1 Ð (number in a square) indicates a specific front-panel control or indicator Á Ð (number in a circle) indicates a rear-panel connection
Page 2
3 INTRODUCTION Introduction Congratulations! As the owner of a PA 4000 Power Amplifier, you have at your command a unique product. The PA 4000 has been carefully designed to deliver the best possible sonic performance, along with unique features that make it as much at home in a multiroom audio system as it is in providing power to the additional surround channels required for the latest digital audio formats. The PA 4000 is alone among audio power amplifiers in being designed to accommodate the long speaker runs required for multiroom applications without sacrificing the ultrawide- bandwidth circuitry and high-current capability technologies that are key to Harman KardonÕs long-standing tradition of audio amplifier excel- lence. As an added audiophile touch, five-way speaker terminals ensure a secure connection to large-gauge speaker wire, and individual output level trim controls enable output bal- ance to be set precisely. Along with power and performance, the PA 4000 provides the flexibility for a variety of applications. Depending on your needs and sys- tem requirements: the PA 4000 may be config- ured to serve as a two-channel, high-power amplifier for the rear surround channels in the new 6.1 or 7.1 digital audio systems; it may be used to power two separate remote zones or four separate remote rooms; or Ð for the ulti- mate in flexibility Ð it can even provide power to a multiroom zone and rear surround chan- nels at the same time! To allow the widest range of system options, the PA 4000 includes both Music Sense circuitry, which automatically turns the amplifier on when an audio signal is present, and a low-voltage trigger for compati- bility with multiroom controllers.In order to fully enjoy the performance of your amplifier, please take a few minutes to read this ownerÕs manual. It contains important informa- tion that will help you to make certain that the amplifier is properly configured for operation with the rest of the equipment in your system. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best source of product information. Welcome to the Harman Kardon family. We wish you many years of listening pleasure! Features n Dual-Input Bridgeable Multichannel Amplifier n High-current, ultrawide-bandwidth design n Dual-input design allows two separate signals to be used for simultaneous multizone and surround channel or stereo listening n Parallel line-level output connections permit amplifiers to be cascaded for system use n Music Sense circuitry and low-volt- age trigger connection for automatic turn-on n IR and keypad inputs for all output channels permit individual remote volume control n Five-way binding post terminals accommodate large-gauge speaker cable n Massive heatsinks for quiet, fan-free convection cooling n Output level trim controls n Removable IEC power cord n Specially optimized circuitry is com- patible with long speaker wire runs that may be necessary in a whole- house multiroom system CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
