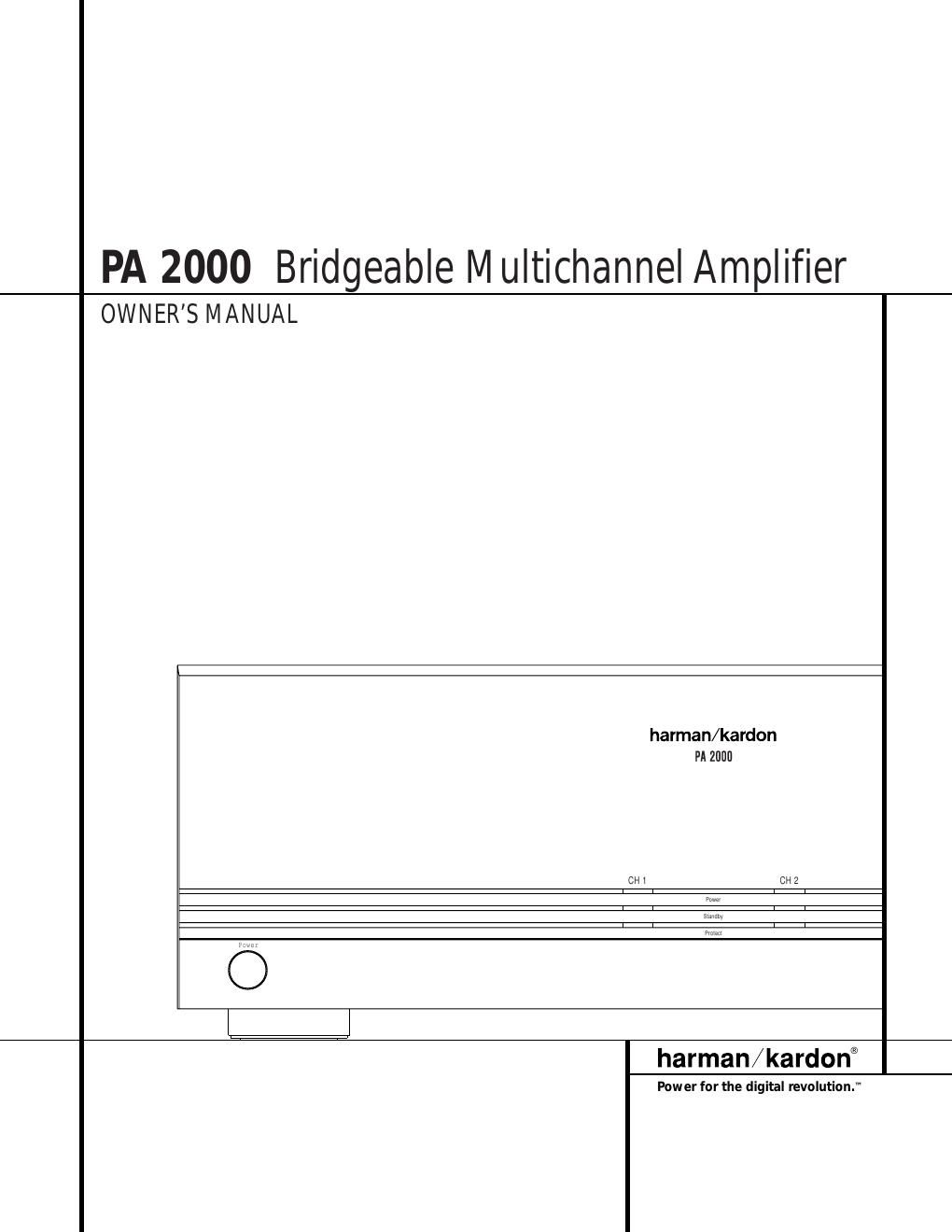

Harman kardon pa 2000 owners manual
This is the 16 pages manual for harman kardon pa 2000 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon pa 2000 owners manual (Ocr-read)
Page 1
2TABLE OF CONTENTS 3Introduction 4Safety Information 4Unpacking and Installation 5Front Panel Controls and Indicators 6Rear Panel Connections 7Installation and Configuration 8Channel Configuration and Speaker Connections 9Speaker Wire Connections 10Audio Signal Connections 11Operation 12Service Information 13Troubleshooting Guide 14Technical Specifications PA 2000 Bridgeable Multichannel Amplifier Typographical Conventions In order to help you use this manual with the front panel controls and rear panel connections, certain conventions have been used. EXAMPLEÐ (bold type) indicates a specific front panel button or rear panel connection jack 1Ð (number in a square) indicates a specific front panel control ÁÐ (number in a circle) indicates a rear panel connection
Page 2
3INTRODUCTION Introduction Congratulations!As the owner of a PA 2000 Multichannel/Multizone Power Amplifier, you have at your command a unique product. The PA 2000 has been carefully designed to deliver the best possible sonic performance, along with unique features that make it as much at home in a multiroom audio system as it is in provid- ing power to the additional surround channels required for the latest digital audio formats. The PA 2000 is alone among audio power amplifiers in being designed to accommodate the long speaker runs required for multiroom applications without sacrificing the ultrawide- bandwidth circuitry and high-current capability technologies that are key to Harman KardonÕs long-standing tradition of audio amplifier excel- lence. As an added audiophile touch, five-way speaker terminals ensure a secure connection to large-gauge speaker wire, and individual output level trim controls enable output bal- ance to be set precisely. Along with power and performance, the PA 2000 provides the flexibility for a variety of applications. In the four-channel/two-pair out- put mode, the input is routed to two pairs of speakers for use with AV receivers equipped with multiroom capability. In the two-channel bridged mode, a high-output stereo pair is available for use as the rear surround channels in a 7.1 channel system or for use with a stereo preamplifier. For installations requiring multiple amplifiers, a pair of parallel outputs allows the same signal to be fed to multiple PA 2000s. To allow the widest range of system options, the PA 2000 includes both Music Sense circuitry, which automatically turns the amplifier on when an audio signal is present, and a low- voltage trigger for compatibility with multiroom controllers.In order to fully enjoy the performance of your amplifier, please take a few minutes to read this ownerÕs manual. It contains important informa- tion that will help you to make certain that the amplifier is properly configured for operation with the rest of the equipment in your system. If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer. They are your best source of product information. Welcome to the Harman Kardon family. We wish you many years of listening pleasure! Features nBridgeable Multichannel Amplifier powers one or two stereo pairs nHigh-current, ultrawide-bandwidth design nParallel line-level-out connections permit amplifiers to be cascaded for system use nMusic Sense circuitry and low-volt- age trigger connection for automatic turn-on nFive-way binding post terminals accommodate large-gauge speaker cable nMassive heatsinks for quiet, fan-free convection cooling nOutput level trim controls nRemovable IEC power cord nSpecially optimized circuitry is com- patible with long speaker wire runs that may be necessary in a whole- house multiroom system CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
