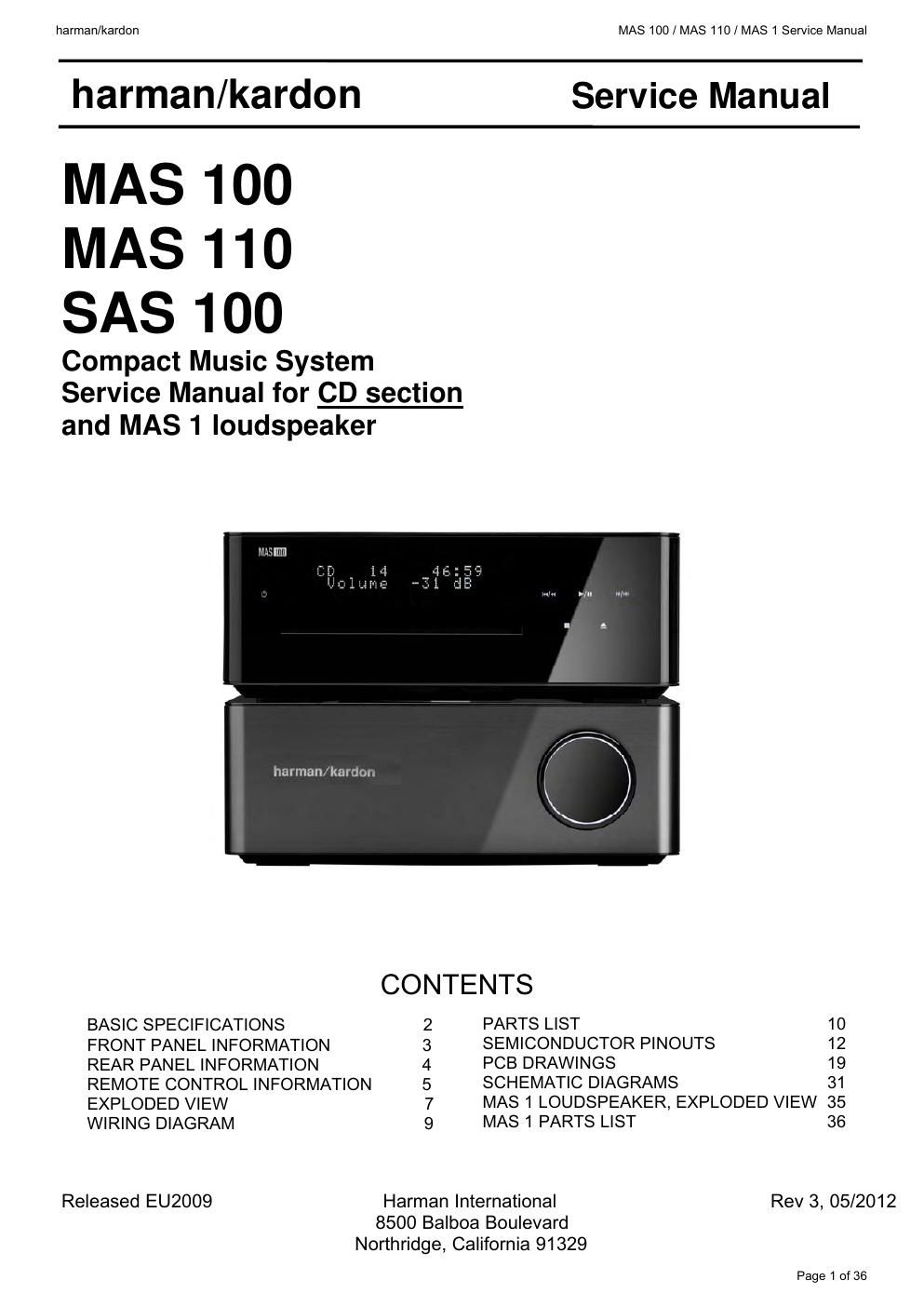

Harman kardon mas 100 110 sas 100 service manual
This is the 36 pages manual for harman kardon mas 100 110 sas 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon mas 100 110 sas 100 service manual (Ocr-read)
Page 1
SYSTEM: 0 O W E R O U T P U T W A T T S P E R C H A N N E L ( Z n K ( Z THD< 0.07%, into 6 ohms, both channels driven " A N D W I D T H ( Z n K ( Z n D " 3 Y S T E M F R E Q U E N C Y R E S P O N S E ( Z n K ( Z
Page 2
FRONT-PANEL CONTROLS CONTROLLER AND AMPLIFIER Note: Controls are the same for all models. The MAS 100 and MAS 110 use touch-sensitive controls. To use a control, \ tap gently on its lit icon. NOTE: Controls are the same for all models. Power: Turns the MAS 100/MAS 110 on or places it in Standby mode. To completely power off the unit, unplug the power supply. Message Display: The time and messages are displayed in this two-line text display. CD Slot: Load compatible discs here. Skip/Scan Forward/Reverse: These buttons function diffe- rently, depending on the current source: iPod, CD or USB: Press and release to skip to the next track. Press the reverse button twice to skip to the previous track. Press and hold t\ o scan forward or reverse within a track. Radio: Press and release to select the next programmed preset station. Press and hold to scan quickly through the stations. When you release th\ e button, the tuner continues to scan until it finds a station of acceptab\ ly strong signal quality, and then it stops. To stop the scan before a station is \ found, press the button again. Play/Pause: Each tap toggles between the Play and Pause functions. Stop: Fully stops playback. Eject: When a CD is loaded, tap here to eject it. USB Port A: Connect a compatible USB device here to enjoy playback of audio MP3 or WMA files. Although most USB flash and hard-disk drives \ in the FAT32 file format, as well as many MP3 players, are compatible with \ the MAS 100 and MAS 110 systems, due to the wide variety of manufacturers, playback cannot be guaranteed. Do not connect an iPod or iPhone to this \ port. Do not connect a personal computer or any peripherals to this port. Line-In Jack (Line Input): Connect a 3.5mm male- to-male cable (not included) to the headphone or line-level output on a portable player or other device. Headphone Jack: Outputs a stereo signal for private listening through most headphones that are equipped with a 3.5mm plug. Volume Control: Increases or decreases the volume. Message Display Skip/Scan Forward/Reverse USB Port LINE-IN Input Play/Pause Headphone Eject Stop Volume Power CD Slot 004B004400550050004400510012004E00440055004700520051 003000240036000300140013001300030012000300300024003600030014001400130003001200030030002400360003001400030036004800550059004C00460048000300300044005100580044004F 00330044004A004800030016000300520049000300160019
