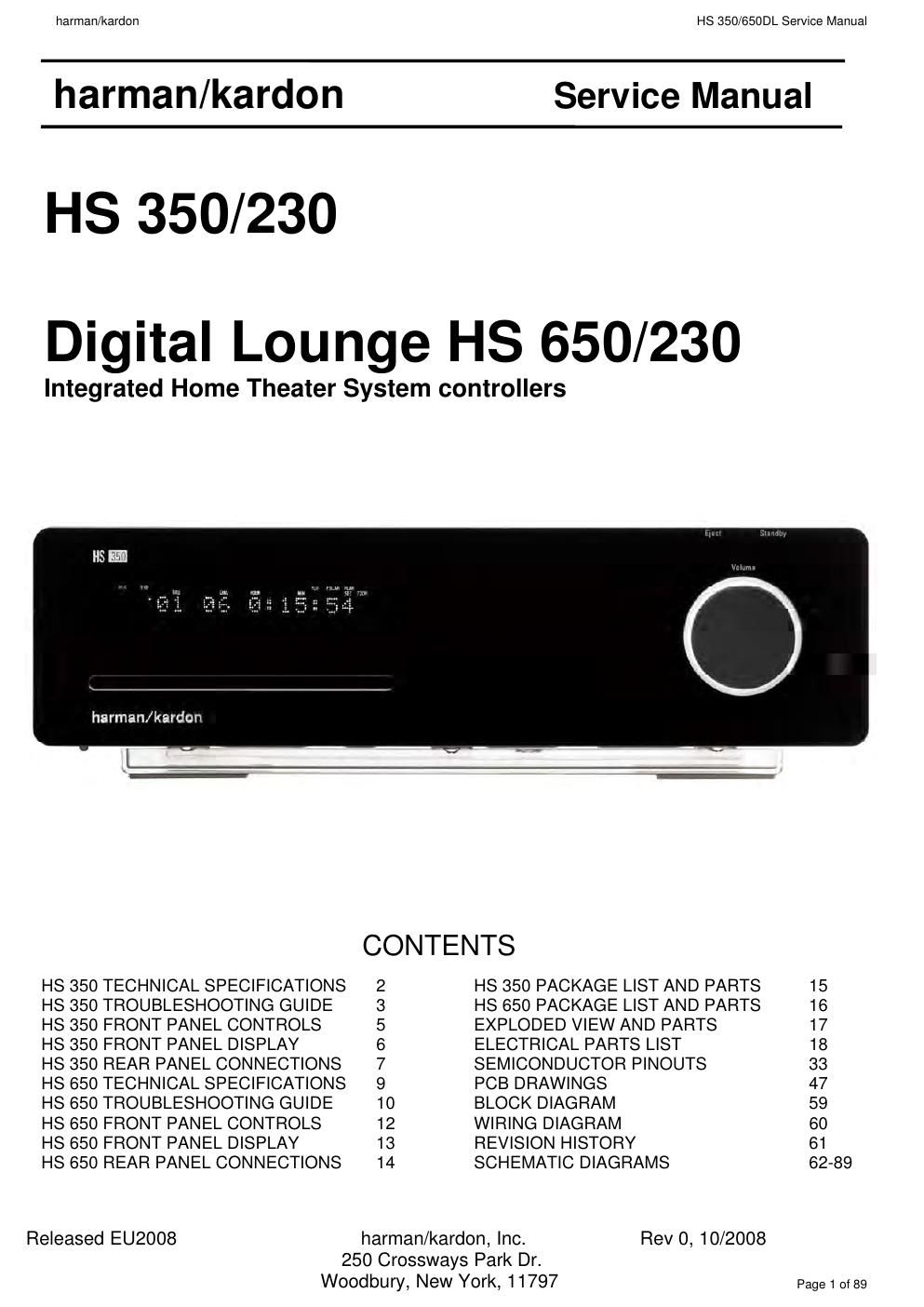

harman/kardon

HS 350/GSODL Service Manual

harman/kardon

Service Manual

HS 350/230

Digital Lounge HS 650/230

Integrated Home Theater System controllers

harman/kardon

HS 350 TECHNICAL SPECIFICATIONS
HS 350 TROUBLESHOOTING GUIDE
HS 350 FRONT PANEL CONTROLS
HS 350 FRONT PANEL DISPLAY

HS 350 REAR PANEL CONNECTIONS
HS 650 TECHNICAL SPECIFICATIONS
HS 650 TROUBLESHOOTING GUIDE
HS 650 FRONT PANEL CONTROLS
HS 650 FRONT PANEL DISPLAY

HS 650 REAR PANEL CONNECTIONS

Released EU2008

CONTENTS
2 HS 350 PACKAGE LIST AND PARTS
3 HS 650 PACKAGE LIST AND PARTS
5 EXPLODED VIEW AND PARTS
6 ELECTRICAL PARTS LIST
7 SEMICONDUCTOR PINOUTS
9 PCB DRAWINGS
10 BLOCK DIAGRAM
12 WIRING DIAGRAM
13 REVISION HISTORY
14 SCHEMATIC DIAGRAMS

harman/kardon, Inc.

Rev 0, 10/2008

250 Crossways Park Dr.
Woodbury, New York, 11797

15
16
17
18
33
47
59
60
61
62-89

Page 1 of 89

Page 2

34252gHS350J-1ng:34252AHS3507Eng 28/01/08 12:54 Side 35 i\
/

harman/kardon HS 350/650DL Service Manual

HS 350 Controller Specifications

DVD player
Pickup: Semiconductor laser, wavelength 650nm
Signal system: NTSC / PAL
Video signal horizontal resolution: More than 480 lines (DVD)
Video signalvtovnoise ratio: More than 60 dB (DVD)
Audio frequency response: DVD (PCM): 20Hz ~ 22kHz (+l- I.0dB)
(Stereo) CD (PCM): 20Hz ~ 20kHz (+le 1.0dB)
Audio signaleto-noise ratio: More than 80 dB (PCM)
Total harmonic distortion: Less than 0.01% (PCM)
Dynamic range: DVD (PCM): More than 85 dB (EIAJ, ZkHz)

CD: More than 85 dB (EIAJ)

FM Tuner
System: PLL quartz~|ocked digital synthesizer system
Tuning range: 87.50 ~ 108.00 MHz
Antenna terminals: 75 Ohms, unbalanced
Intermediate frequency: 10.7 MHz

Video Outputs HDMI:
Component Video Output: Y: I Vp»p/75 Ohms, sync negative polarity
Cr: 07 Vpep/75 Ohms
Cb: 0.7 Vp»p/75 Ohms

CVBS Video: I Vpep 75 Ohms

S~video: Y: I Vp-p 75 Ohms
C: PAL 0.3 Vp~p 75 Ohms / NTSC 0.286 Vpep 75 Ohms

Audio line Outputs

Audio L/R: 2Vrms, I kilohms

General
Power requirements: AC 100»24OV, 50/60 Hz
Max power consumption: 230W
Idle power consumption: Less than 2 W
Dimensions (WxHxD): 357mm x 105mm x 293mm
Weight: 7.5 kg

* Designs and specifications are subject to change without notice.

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon, The Bridge Bridge: and Logic 7 are registered trademarks of Harman International Industries, Incorporated.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories, registered in the United States and/or other countriesAll rights reserved.
DTS is a trademark of Digital Theater Systems, Inc.

Windows Media® Audio (WMA) is a proprietary file format developed by Microsoft.

DivX is a registered trademark of DivX, Inc.

HDMI, the HDMI logo and Higthefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Apple and iPod are registered trademarks oprple Computer, Inc.
