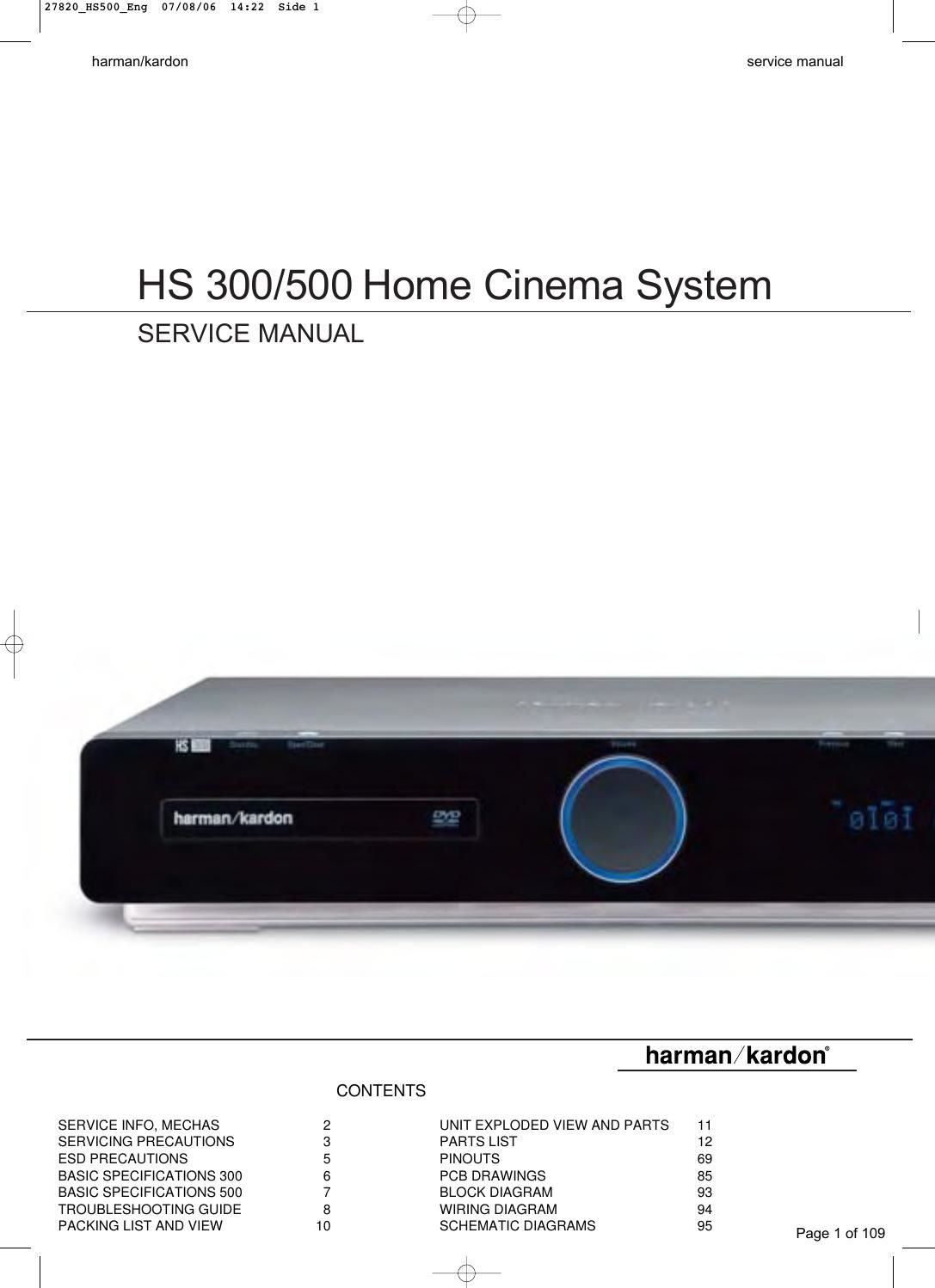

Page 1
278207H85007Eng 07/08/06 14:22 Side 1 '\
harman/kardon service manual
HS 300/500 Home Cinema System
SERVICE MANUAL
harm-n klroon
harman/kardon
CONTENTS
SERVICE INFO, MECHAS 2 UNIT EXPLODED VIEW AND PARTS 11
SERVICING PRECAUTIONS 3 PARTS LIST 12
ESD PRECAUTIONS 5 PINOUTS 69
BASIC SPECIFICATIONS 300 6 PCB DRAWINGS 85
BASIC SPECIFICATIONS 500 7 BLOCK DIAGRAM 93
TROUBLESHOOTING GUIDE 8 WIRING DIAGRAM 94
PACKING LIST AND VIEW 10 SCHEMATIC DIAGRAMS 95
Page 1 of 109
Page 2
harman/kardon
service manual
harman/kardon
Service Info
HS 300/500
To:
Models:
Subject:
All harman/kardon Service Centers
HS 300/500
Hardware changes (2 changes, mecha and main board).
23 Aug 2007
Please note that a change in hardware from Sanyo optics and mecha to Hitachi optics and
mecha has been carried out from the serial numbers stated below.
Model Start serial number End serial number Optic/ mecha Part number
WA0020-01001 WA0020-03501 HD62 - DV342 (Sanyo) 01.15.JX.DV342
HOP1200W- DM3403-C
HS 300/230 WA0020-03502 - (Hitachi) 01.15.JX.EDM3403
WA0023-01001 WA0023-03500 HD62 - DV342 (Sanyo) 01.15.JX.DV342
HOP1200W- DM3403-C
HS 500/230 WA0023-03501 - (Hitachi) 01.15.JX.EDM3403
Due to the change of mecha, the main boards are also different. It is important to use the correct
main board for the loader, as the servo circuit has changed on the main board.
Model Start serial number End serial number Main board version Part number
WA0020-01001 WA0020-03501 Up to version 1.6 HAV06M1802C02*
HS 300/230 WA0020-03502 - From version 1.7 0211HAV06M3625C023
WA0023-01001 WA0023-03500 Up to version 1.6 HAVO6M1802002*
HS 500/230 WA0023-03501 - From version 1.7 0211HAV06M3625C025
* Please note that correct software according to model must be installed after change of main
board
Please note that there is no difference in playability or functionality between the Sanyo and Hitachi loaders.
harman consumer group
Page 2 of 109
