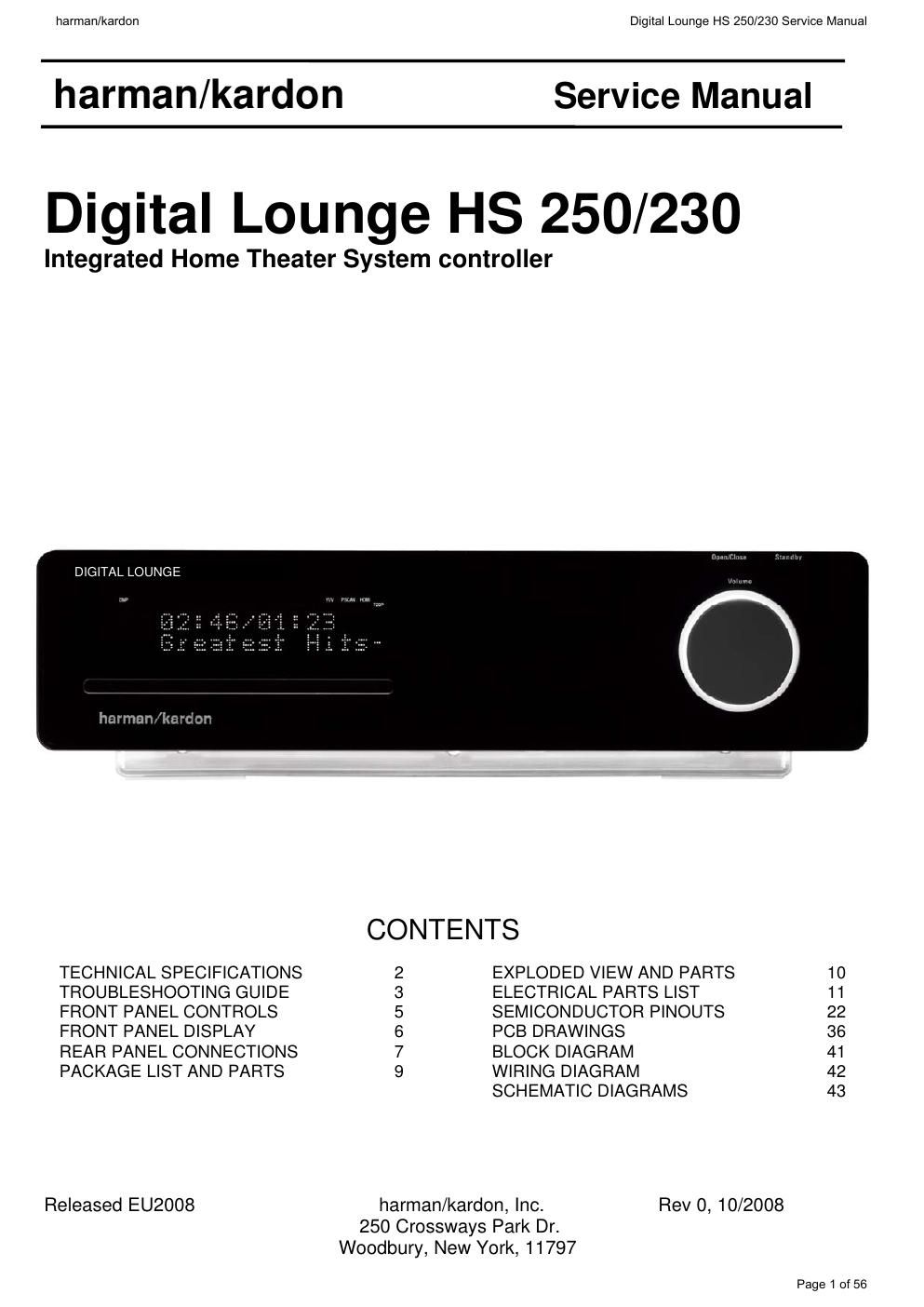

Page 1
harman/kardon Digital Lounge HS 250/230 Service Manual
harman/kardon Service Manual
Digital Lounge HS 250/230
Integrated Home Theater System controller
DIGITAL LOUNGE
harman kardon
CONTENTS
TECHNICAL SPECIFICATIONS 2 EXPLODED VIEW AND PARTS 10
TROUBLESHOOTING GUIDE 3 ELECTRICAL PARTS LIST 11
FRONT PANEL CONTROLS 5 SEMICONDUCTOR PINOUTS 22
FRONT PANEL DISPLAY 6 PCB DRAWINGS 36
REAR PANEL CONNECTIONS 7 BLOCK DIAGRAM 41
PACKAGE LIST AND PARTS 9 WIRING DIAGRAM 42
SCHEMATIC DIAGRAMS 43
Released EU2008 harman/kardon, Inc. Rev 0, 10/2008
250 Crossways Park Dr.
Woodbury, New York, 11797
Page 1 of 56
Page 2
0019CSK - Digital Lounge 232E2X7240HD ENG v1(12).qxp:0019CSK _. igitalLounge 250HD UK v6 12/06/08 12:02 Side 47 (Sort/flack plat
\Li
I harman/kardon Digital Lounge HS 250/230 Service Manual
Digital Lounge Controller Specifications
DVD player Pickup: Semiconductor laser, wavelength 650nm E
Signal system: NTSC / PAL E
Video signal horizontal resolution: More than 480 lines (DVD)
Video signal»toenoise ratio: More than 60 dB (DVD)
Audio frequency response: DVD (PCM): 20 Hz ~ 22 kHz (+/7 1.0 dB)
(Stereo) CD (PCM): 20 Hz ~ 20 kHz (+/» 1.0 dB)
I Audio signal-tonoise ratio: More than 80 dB (PCM)
Total harmonic distortion: Less than 0.01% (PCM)
Dynamic range: DVD (PCM): More than 85 dB (EIAJ, 2 kHz)
CD: More than 85 dB (EIAJ)
Amplifer output Power (per channel): 65 W (6ohms)
Signal-tornoise ratio: > 85 dB
Total Harmonic distortion: < 0.2%
FM Tuner System: PLL quartz-locked digital synthesizer system
Tuning range: 87.50 ~ 108.00 MHz
Antenna terminals: 75 ohms, unbalanced
Intermediate frequency: 10.7 MHz
Video Outputs: HDMIW1 Output: Video: 576p, 720p, 1080i
HDMI Version 1.07compliant
HDCP Version 1.1vcompliant
Audio line Outputs Audio L/R: 2Vrms, 1 kilohms
K
General Power requirements: AC 230V, 50 Hz
Max power consumption: 180 W
Idle power consumption: Less than 2 W
Dimensions (WxHxD): 350mm x 84mm x 250mm
Weight: 3,8 kg
* Designs and specifications are subject to change without notice.
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon The Bridge, Bills? is a registered trademark of Harman International Industries, Incorporated.
Dolby, Pro Logic and the double~D symbol are trademarks of Dolby Laboratories, registered in the United States and/or other countries.
All rights reserved.
DTS is a trademark of Digital Theater Systems, Inc.
Windows MediaE Audio (WMA) is a proprietary file format developed by Microsoft.
DivX is a registered trademark of DivX, Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Page 2 of 56
