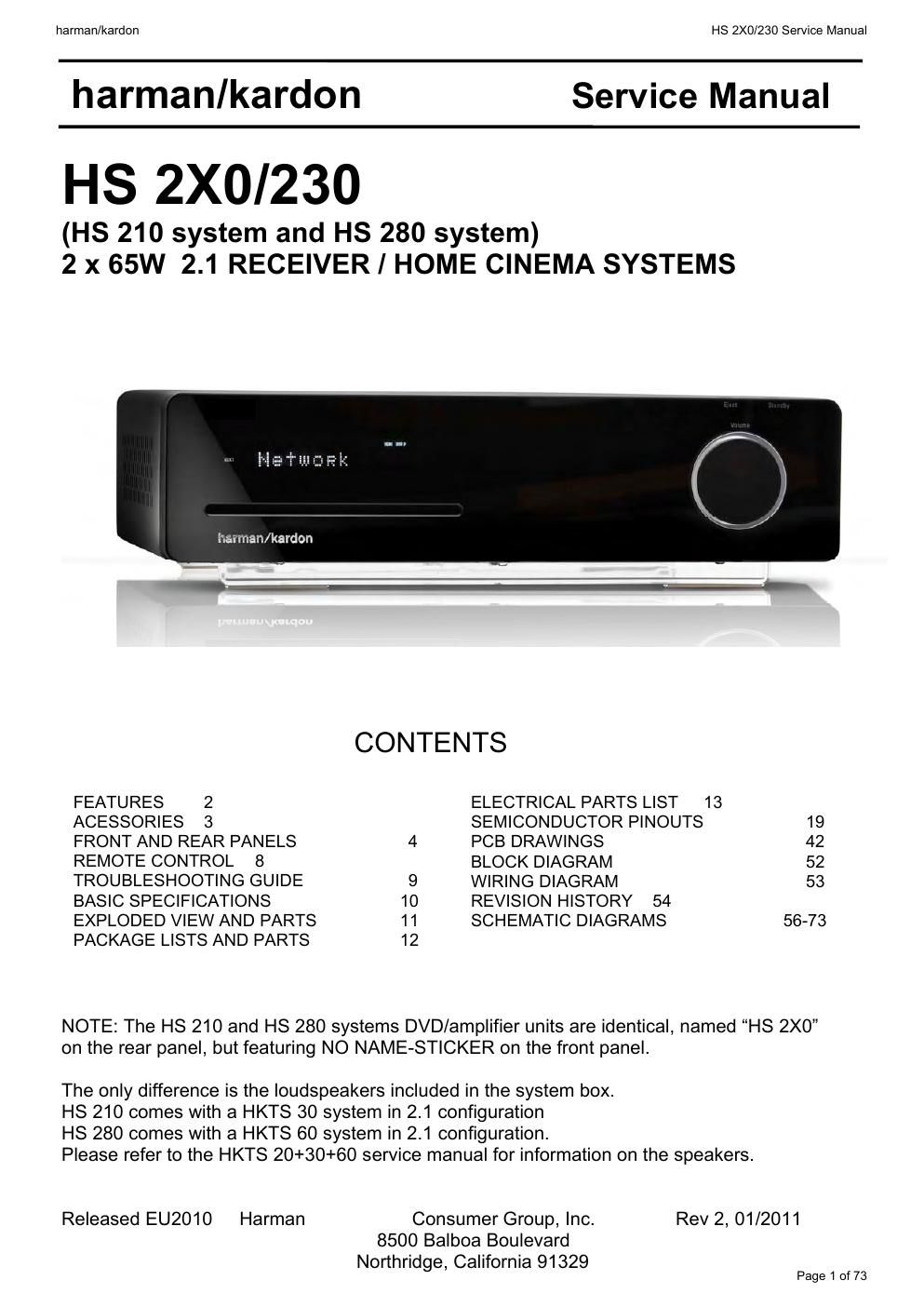

harman/kardon HS 2X0/230 Service Manual

harman/kardon Service Manual

HS 2XOI230

(HS 210 system and HS 280 system)
2 x 65W 2.1 RECEIVER / HOME CINEMA SYSTEMS

Hefmoek

Mrman/kardon

CONTENTS
FEATURES 2 ELECTRICAL PARTS LIST 13
ACESSORIES 3 SEMICONDUCTOR PINOUTS 19
FRONT AND REAR PANELS 4 PCB DRAWINGS 42
REMOTE CONTROL 8 BLOCK DIAGRAM 52
TROUBLESHOOTING GUIDE 9 WIRING DIAGRAM 53
BASIC SPECIFICATIONS 1O REVISION HISTORY 54
EXPLODED VIEW AND PARTS 11 SCHEMATIC DIAGRAMS 56-73
PACKAGE LISTS AND PARTS 12

NOTE: The HS 210 and HS 280 systems DVD/amplifier units are identical, named HS 2X0
on the rear panel, but featuring NO NAME-STICKER on the front panel.

The only difference is the loudspeakers included in the system box.

HS 210 comes with a HKTS 30 system in 2.1 configuration

HS 280 comes with a HKTS 60 system in 2.1 configuration.

Please refer to the HKTS 20+30+6O service manual for information on the speakers.

Released EU2010 Harman Consumer Group, Inc. Rev 2, 01/2011
8500 Balboa Boulevard

Northridge, California 91329
Page 1 of 73

Page 2

harman/kardon

Introduction

Please register your product on our Web site at
www.harmankardon.com.

Note: Youll need the products serial number. At the same time,
you can choose to be notified about our new products and/or
special promotions.

www.harmankardon.com

Thank you for choosing the Harman Kardon3
HS ZXOSO/230!

In the years since Harman Kardon invented the high-fidelity receiver,
we have taken to heart this philosophy: Bring the joy of home
entertainment to as many people as possible, adding performance
and ease-of-use features that enhance the experience. With the
introduction of the HS series of home-entertainment systems,
Harman Kardon offers a complete home-entertainment solution with
a wealth of listening and viewing options in one sleek component.
Each HS series system also includes a 5.1-channel or 2.1-channel
loudspeaker system, a system remote control and all the cables and
accessories you need to enjoy movies and music in your own home,
when you use them with your television or video display.

To get the maximum enjoyment from your new HS system, we urge
you to read this manual thoroughly and refer back to it as you become
more familiar with your new systems features and their operation.

If you have any questions about this product, its installation or its
operation, please contact your retailer or custom installer, or visit our
Web site at www.harmankardon.com.

NOTE: The built-in DVD player is designed and
manufactured for compatibility with Region
Management Information that is encoded on most

DVDs. This player is designed only for playback
of discs with Region Code 2 information or discs that do not
contain Region Code information. If there is any other Region
Code on a disc. it will not play in the HS 2X030/230.

HS 2X080/230 Two-Channel DVD Receiver

Audio Section
0 65 watts x 2 continuous power at 6 ohms (both channels driven),
20Hz - 20kHz, <0.5% THD (total harmonic distortion)

Audio Modes

0 Dolby0 Digital

0 Dolby Virtual Speaker
0 Stereo

Analog-Audio Inputs

0 FM tuner (internal)

DVD player (internal)

Two left/right (L/R) line input connectors
L/R input via SCART

Analog-Audio Outputs

0 Headphone output

0 Subwoofer output

0 One L/R line output connector

Digital Audio Inputs
0 Two coaxial
0 Two optical
0 Two USB 2.0 ports

HS ZXO/230 Service Manual

Digital Audio Outputs
0 One coaxial

Video Inputs
0 DVD player (internal)

Video Outputs

One HDMITM (High-Definition Multimedia Interface) version 1.2
One S-Video

One composite video

S-Video and composite video via SCART

Speaker Outputs
0 Front left and front right

Control Inputs/Outputs

o Subwoofer trigger output

0 Infrared (IR) remote control input
0 Infrared (IR) remote control output

Ease of Use

. On-screen menu system

0 Dot-matrix front-panel information display

0 Learning remote control (also controls your TV and a video
component)

DVD Player Features

- Region 2 coding

0 Plays five-inch (12cm) and 3-inch (8cm) discs

- Video formats supported: DVD, DVD-R, DVD-RW, DVD+R/RW,
VCD, SVCD

0 Audio formats supported: Dolby Digital, CD, CD-R/RW,

MP3, WMA (v7-v3)

Still-image formats supported: JPEG

Video upscaling to 720p and 1080p (HDMI output only)

Progressive-scan video output (HDMI only)

MP3 bit rates: 32kbps - 320kbps

WMA bit rates: 16kbps - 192kbps

JPEG resolution supported: Five megapixels, 5MB file size

Still-image rotation in 90-degree increments

Fast Play rates: 2x. 4x, 8x, 16x. 32x

Slow Play rates: 1x, 2x, 4x, 8x

Random Play

Repeat Play: One group/title, one track/chapter, one folder, one disc

Disc recognition for up to 100 discs

Playback control for VCDs

Aspect-ratio adjustment

SAT TS60 Satellite Speakers (for HS 280)

0 One 1" (25mm) CMMD" Lite dome video-shielded tweeter

0 Two 3 (75mm) flat-diaphragm, video-shielded, midrange drivers
0 20 ~ 150 watts recommended power

SAT TS11 Satellite Speakers (for HS 210)

0 One 1/2" (12mm) dome, video-shielded tweeter

- Dual 3" (75mm) drivers, video-shielded, midrange
o 10 ~ 120 watts recommended power

HKTSZOOSUB Subwoofer

o 8" (200mm) woofer in a sealed enclosure
0 200 watts RMS amplifier power

0 Automatic turn-on and turn-off
