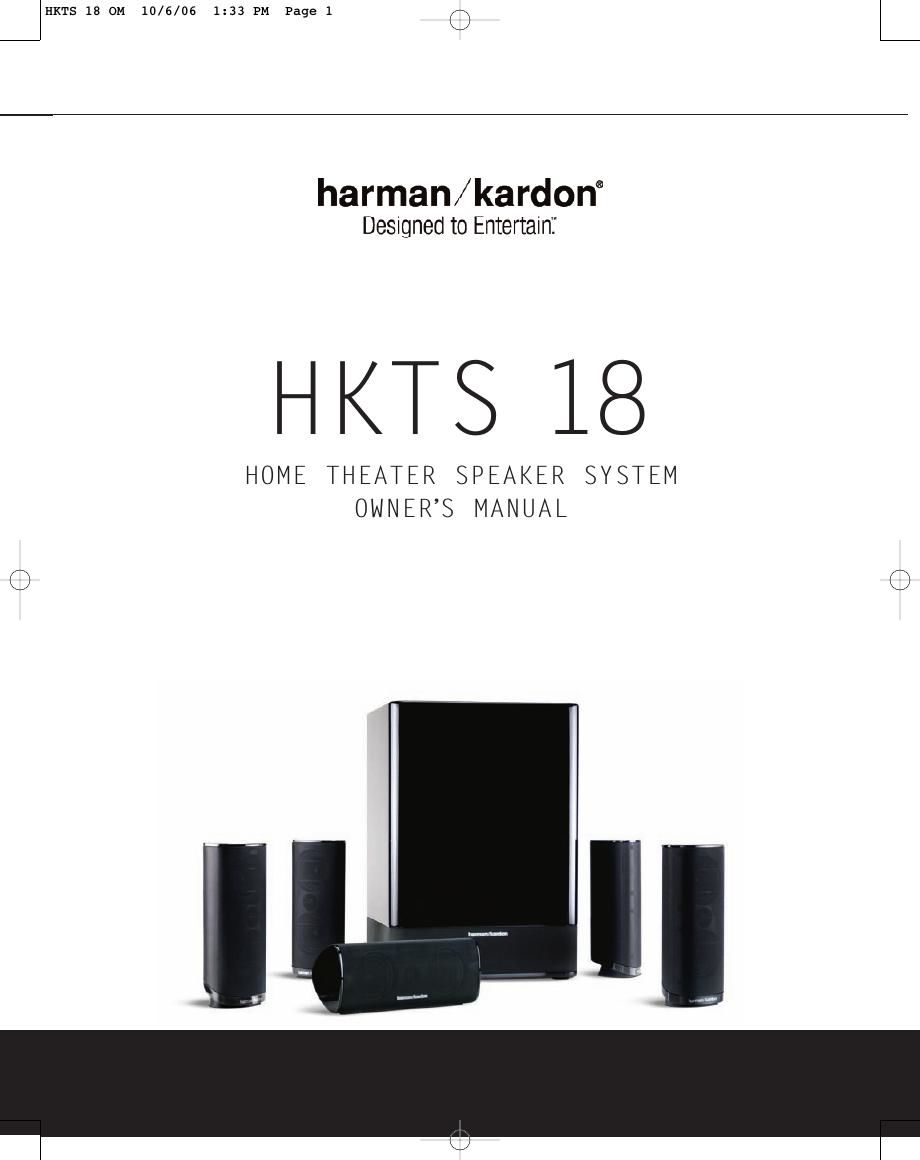

Harman kardon hkts 18 owners manual
This is the 16 pages manual for harman kardon hkts 18 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hkts 18 owners manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS HKTS 18 HOME THEATER SPEAKER SYSTEM 3 Safety Information 4 Introduction 4 Included 5 SUB TS18 Subwoofer Amplifier Panel Controls and Connections 7 Speaker Placement 7 Color Coding System 8 Mounting Options 9 Speaker Connections 9 Speaker Level Connection Guide 10 Dolby Digital or DTS (or Other Digital Surround Mode) Connection 11 Dolby Pro Logic (Non Digital) – Line Level 12 Dolby Pro Logic (Non Digital) – Speaker Level 13 Operation 13 Volume 13 Additional Bass Adjustments 14 Troubleshooting 15 HKTS 18 Specifications Please register your product on our Web site at www.harmankardon.com. Note: Youll need the serial number of your new home theater speaker system. At the same time, you can choose to be notified about our new products and/or special promotions. Typographical Conventions In order to help you use this manual, certain conventions have been used. EXAMPLE – (bold type) indicates a specific control or rear panel connection on the SUB TS18 subwoofer EXAMPLE – (OCR type) indicates a control or switch position on the SUB TS18 subwoofer ¡ – (number in a circle) indicates a rear panel control or connection on the SUB TS18 subwoofer HKTS 18 OM 10/6/06 1:33 PM Page 2
Page 2
SAFETY INFORMATION 3 SAFETY INFORMATION Read First! Important Safety Precautions! 1.Read these instructions.2.Keep these instructions.3.Heed all warnings.4.Follow all instructions.5.Do not use this apparatus near water.6.Clean only with a dry cloth.7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9.Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other.A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched,particularly at plugs,convenience receptacles and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards. 16. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and require ments for the grounding electrode.See Figure A. 18. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 19. Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock. 20. Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 21. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus. 22. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 23. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 24. Upon completion of any service or repairs to this product,ask the service technician to perform safety checks to determine that the product is in proper operating condition. 25. The product should be mounted to a wall or ceiling only as recommended by the manufacturer. Figure A. Example of Antenna Grounding as per National Electrical Code ANSI/NFPA 70 HKTS 18 OM 10/6/06 1:33 PM Page 3
