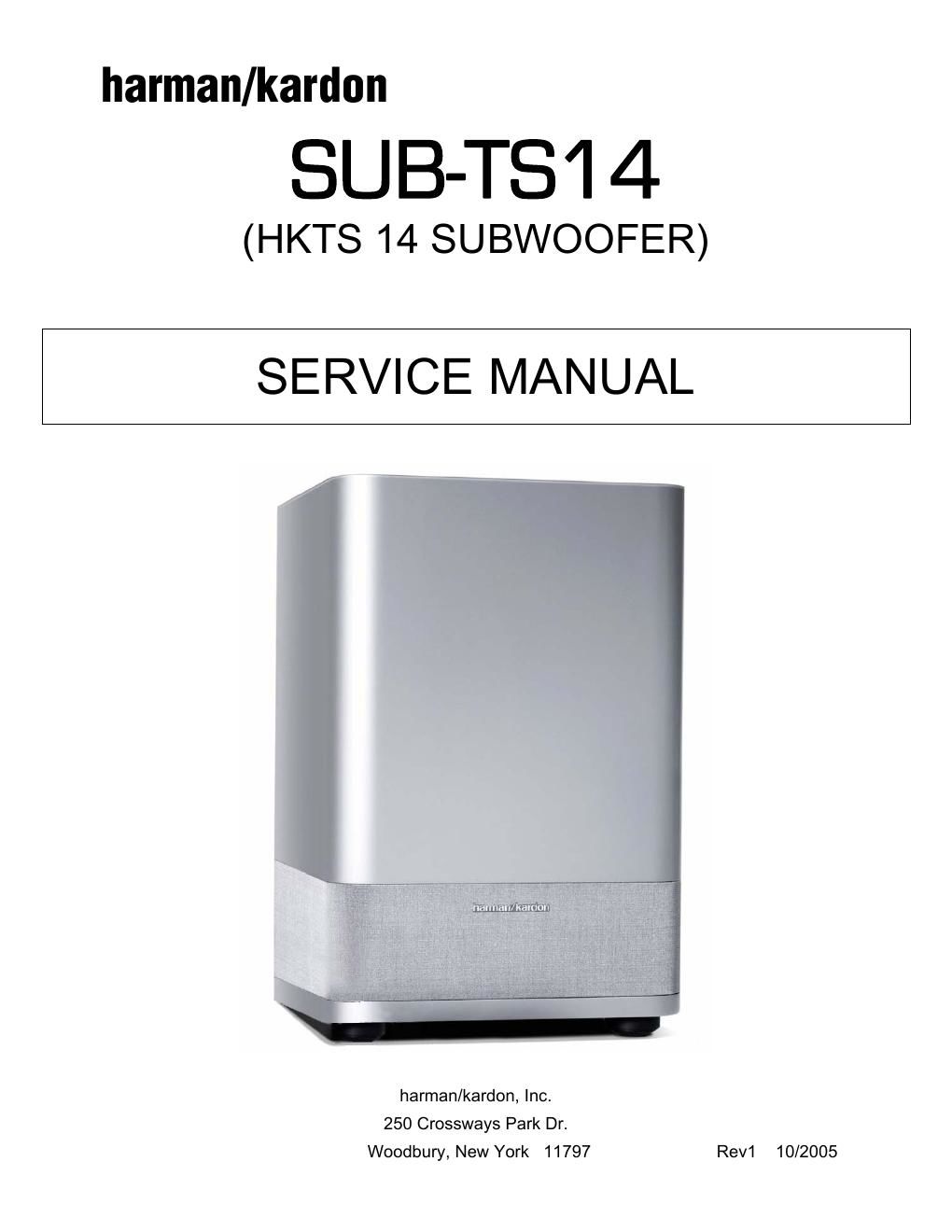

Harman kardon hkts 14 service manual
This is the 29 pages manual for harman kardon hkts 14 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from harman kardon hkts 14 service manual (Ocr-read)
Page 1
CONTENTS BASIC SPECIFICATIONS . . . . . . . . . . . . ……………………………………. . . . 1 DETAILED SPECIFICATIONS. . . . . . . . . . . . . .. . . . . . . . . ………………….. …2 CONTROLS & CONNECTIONS . . . . . . . . . . . . . .. . . . . . . . . ………………….. 4 SPEAKER CONNECTIONS ……………………….………..……. . . .. . .. . . . .. . .. 6 OPERATION……. . . . . .. . . . . . . . .. .. . . . .. .. . . . . ……………………………….9 BASIC TROUBLESHOOTING GUIDE . . . . . . . . ………………………………...10 TEST PROCEDURE. . . . . . . . . . . …………………………………………………11 UNIT EXPLODED VIEW. . . . …………… ……………. .. ………... . . .. .. ... . … . 12 AMPLIFIER EXPLODED VIEW. . . . ………………... . .. ………... . . .. . . .. . .… . 13 BLOCK DIAGRAM . . . . . . . . . . . . . .. . . . . . . ……………… . . . . .. . .. . .. . . . . 14 PCB DRAWINGS. .. . . . . . . . . . . . . . .. . . . . ……… . …………. . . . .. .. .. . .. . . . 15 ELECTRICAL PARTS LIST …………. .... . .. . . . …………………………... … . . 19 SEMICONDUCTOR PINOUTS . . . .. .. .. .. . . . .. . ……………..………..………. .24 SCHEMATIC DIAGRAMS . . . . . . . . .. .. .. .. . . . .. . ………………………..……. .25 PACKAGING. . . . . . . . . . . . . .. . . . . . . ……………………… . . . . .. . .. . .. . . . . 28 SPECIFICATIONS Amplifier Power (RMS) 200 Watts Driver 12" woofer, Bass Reflex Enclosure Inputs Stereo Line Lev el, dedicated Subwoofer (LFE) and Speaker Level with gold-plated binding posts Outputs Speaker Leve l with gold-plated binding posts Frequency Response 25Hz – 120Hz (Filter switch ON) 25Hz – 450Hz (Filter switch OFF) Dimensions (H x W x D) 20-1/2" x 14-1/2" x 14-1/2" 521mm x 368mm x 368mm Weight 48 lb/22kg Occasional refinements may be made to existing products without notice but will always meet or exceed original specifications unless otherwise stated. SUB-TS14 harman/kardon
Page 2
HKTS 14 Sub 200W Powered Sub/ Plate Amp LINE VOLTAGE Yes/N o Hi/Lo Lin e Nom. Uni t Note s US 120vac/60Hz Yes 108-132 120 VrmsNormal Operatio n ParameterNonimal Specification UnitQA Test Limits Conditions Notes Amp Sectio n Type (Class AB, D, other) D n/a n/aBridge type amplifier, None of the speaker terminals must be connected to system GND at any Load Impedance (speaker) 3.5 Ohms n/a Nominal Rated Output Power 200 Watts 150 50 - 250 Hz, 1 input driven, limiter off THD @ Rated Power 0.08 % 0.1 22k filter THD @ 1 Watt 0.15 % 0.5 22k filter DC Offset 5 mV-DC 20 @ Speaker Outputs Damping factor 16 n/a 10 Measured at amplifier board Measured at the speaker at speak e output terminals on the amp board. Input Sensitivit y Input Frequency 50 Hz n/a Nominal Freq. Line (L&R) Input 220 mVrms 154 - 308 To Rated Power Single input drive n SUB (LFE) Input 125 mVrms 87 - 175 To Rated Power SUB (LFE) input driven onl y Speaker/Hi Level Input 3.4 Vrms 2.4 - 4.8 To Rated Power (20 dB below Line In), Single input Hi Level Max. Input Voltag e 32 Vrms 30 Nominal Freq., Min. Volume Signal to Noise Rati o SNR-A-Weighted 85 dB 82 relative to rated power A-Weighting filte r SNR-unweighted 62 dB 59 relative to rated power 22k filte r SNR rel. 1W-unweighted 64 dB 59 relative to 1W Output 22k filte r Residual Noise Floor 1.2 mVrms 3.0Volume @max, using RMS reading DMM/VOM (or A/P) Residual Noise Floor 0.8 mVrms 2.0Volume @max, w/ A/P Swept Bandpass Measurement (Line freq.+ harmonics) Input Impedanc e Line Input (L, R,LFE) 10K ohms n/a Nominal Speaker/Hi Level Input 4.7K ohms n/a Nominal Filter s L&R Fixed Low-Pass Filter 160 Hz 140 - 180 @ -6dB ref. 100Hz 3rd order fixe d SUB (LFE) Low pass Filter 270 Hz 240 - 300 @ -3dB ref. 100Hz 2nd order fixe d Subsonic filter (HPF) 3rd Order 25 Hz 22 - 28 @ -3dB ref. 30Hz 3rd order fixe d Limiter THD at Max. Output Power 2.0 % 5.0 Features Auto - On -Off Selection Switch YES functional Refer to ATO sectio n Phase Switch 0-180 degfunctional Filter On/Off Switch YES functional Volume Pot Taper (Lin/Log) LOG functional A Tape r Speaker Out YESfunctional Binding post connector L& R 2-Color LED power indicator YESfunctional Blue: On, Amber: Stand-b y Power Switch YESfunctional Fuse Holder YES functional Input Configuratio n Line In (L,R) YES functional Dual RCA jack SUB (LFE) YESfunctional RCA jack Speaker/Hi Level In YES functional Binding post connector L& R Signal Sensing (ATO ) Auto-Turn-On (yes/no) YESfunctional Auto - on selection switch in Auto ATO Input test frequency 50 Hz n/a " ATO Level Line & SUB Input 4.0 mV 2.0 - 6.0 " ATO Level Speaker in 35 mV 20 - 50 " ATO Turn-on time 0.9 sec. functional Amp connected and AC on, then input signal applied ATO Turn-OFF Time 12 minutes 5 - 17Time before muting, after signal is removed SUB-TS14 harman/kardon 2
